Brand: CommScope
|
SKU:
371COMOM3-TBD-06-ERA
Commscope R006DS5LFSUAQ | LazrSPEED Riser Distribution Cable, 6 fiber single-unit
Regular price
$1.67
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope R006DS5LFSUAQ | LazrSPEED Riser Distribution Cable, 6 fib...
Regular price
$1.67
Unit price
Brand: CommScope
|
SKU:
371COMOM3-TBD-06-ERA
Regular price
$1.67
Unit price
Description
Description

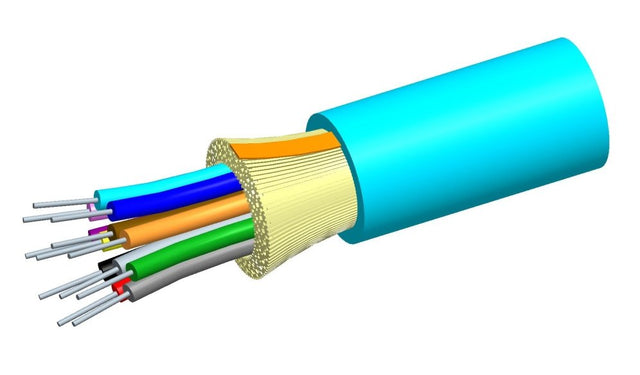

LazrSPEED Riser Distribution Cable, 6 fiber single-unit
Specifications
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | Latin America | Middle East/Africa | North America |
|---|---|
| Portfolio | CommScope |
General Specifications
| Cable Type | Distribution |
|---|---|
| Construction Type | Non-armored |
| Fiber Type, quantity | 6 |
| Jacket Color | Aqua |
| Subunit Type | Gel-free |
| Total Fiber Count | 6 |
Dimensions
| Diameter Over Jacket | 5.04 mm | 0.198 in |
|---|
Mechanical Specifications
| Minimum Bend Radius, loaded | 76 mm | 2.992 in |
|---|---|
| Minimum Bend Radius, unloaded | 50 mm | 1.969 in |
| Tensile Load, long term, maximum | 200 N | 44.962 lbf |
| Tensile Load, short term, maximum | 667 N | 149.948 lbf |
| Compression | 10 N/mm | 57.101 lb/in |
| Compression Test Method | FOTP-41 | IEC 60794-1 E3 |
| Flex | 100 cycles |
| Flex Test Method | FOTP-104 | IEC 60794-1 E6 |
| Impact | 5.88 N-m | 52.042 in lb |
| Impact Test Method | FOTP-25 | IEC 60794-1 E4 |
| Strain | See long and short term tensile loads |
| Strain Test Method | FOTP-33 | IEC 60794-1 E1 |
| Twist | 10 cycles |
| Twist Test Method | FOTP-85 | IEC 60794-1 E7 |
| Vertical Rise, maximum | 500 m | 1640.42 ft |
Optical Specifications
| Fiber Type | OM3, LazrSPEED 300 | OM3, LazrSPEED 300 |
|---|
Environmental Specifications
| Installation temperature | -20 °C to +70 °C (-4 °F to +158 °F) |
|---|---|
| Operating Temperature | -20 °C to +70 °C (-4 °F to +158 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Cable Qualification Standards | ANSI/ICEA S-83-596 | Telcordia GR-409 |
| Environmental Space | Riser |
