Brand: CommScope
|
SKU:
371-COMOS2-TBD24ASAM
CommScope R024DS8WFSUYL | Fiber Indoor Cable, TeraSPEED Riser Distribution, Singlemode G.652.D and G.657.A1, 24 Fiber Single-Unit, Yellow
Regular price
$3.39
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope R024DS8WFSUYL | Fiber Indoor Cable, TeraSPEED Riser Distr...
Regular price
$3.39
Unit price
Brand: CommScope
|
SKU:
371-COMOS2-TBD24ASAM
Regular price
$3.39
Unit price
Shipping calculated at checkout.
Description
Description
CommScope R024DS8WFSUYL | Fiber Indoor Cable, TeraSPEED Riser Distribution, Singlemode G.652.D and G.657.A1, 24 Fiber Single-Unit, Yellow jacket color
Specifications
Specifications

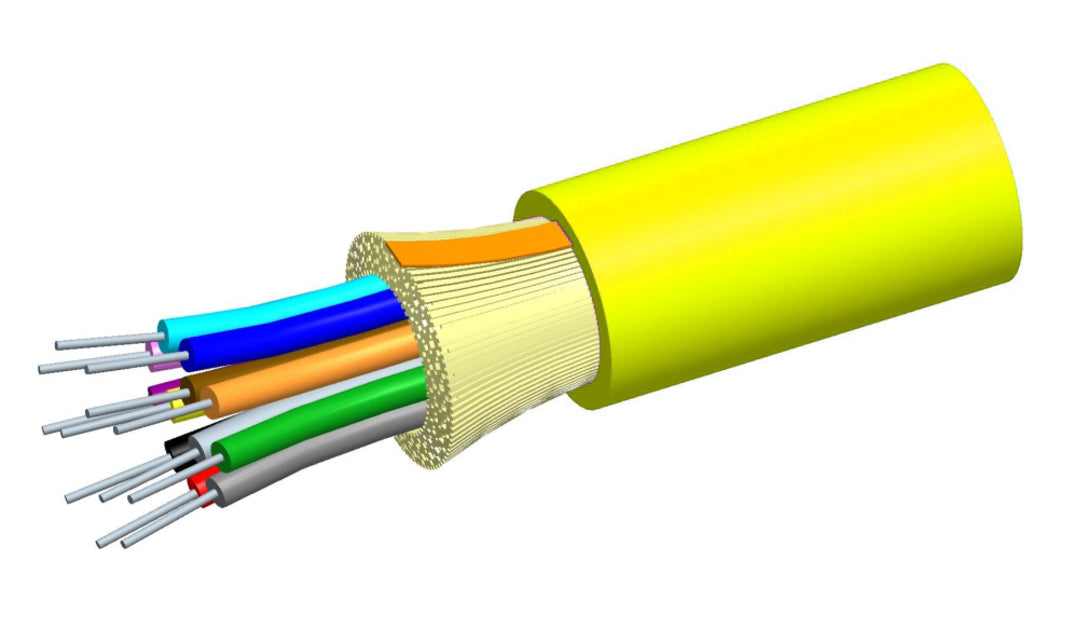

CommScope - R024DS8WFSUYL - Representative Image
| Click on image to enlarge. |
|---|
CommScope - R024DS8WFSUYL - Specifications
| Regional Availability | Asia | Australia/New Zealand | Latin America | Middle East/Africa | North America |
|---|---|
| Portfolio | CommScope® |
| Product Type | Fiber Indoor Cable |
| Product Series | R-DS |
| Cable Type | Distribution |
| Construction Type | Non-armored |
| Subunit Type | Gel-free |
| Jacket Color | Yellow |
| Jacket Marking | Feet |
| Total Fiber Count | 24 |
| Diameter Over Jacket | 7.9 mm | 0.311 in |
| Minimum Bend Radius, loaded | 118 mm | 4.646 in |
| Minimum Bend Radius, unloaded | 79 mm | 3.11 in |
| Installation temperature | -20 °C to +70 °C (-4 °F to +158 °F) |
| Operating Temperature | -20 °C to +70 °C (-4 °F to +158 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Heat Age | -20 °C to +85 °C (-4 °F to +185 °F) |
| Heat Age Test Method | IEC 60794-1 F9 |
| Cable weight | 50.4 kg/km | 33.867 lb/kft |
| ISO 9001:2015, ROHS, CHINA-ROHS, REACH-SVHC, UK-ROHS | Designed, manufactured and/or distributed under this quality management system, Compliant, Below maximum concentration value, Compliant as per SVHC revision on www.commscope.com/ProductCompliance, Compliant |
