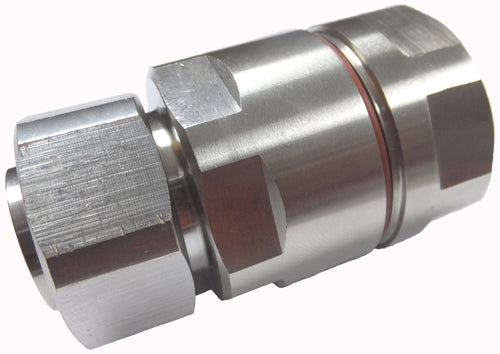

Commscope R5PDM | 7-16 DIN Male Low PIM Positive Stop for 7/8 in RCT RADIAX Radiating cable
Regular price
$105.99
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope R5PDM | 7-16 DIN Male Low PIM Positive Stop for 7/8 in RC...
Regular price
$105.99
Unit price
Description
Description
Commscope R5PDM | 7-16 DIN Male Low PIM Positive Stop for 7/8 in RCT RADIAX Radiating cable
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Wireless and radiating connector |
|---|---|
| Product Brand | RADIAX |
General Specifications
| Body Style | Straight |
|---|---|
| Cable Family | RCT5 |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Male |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Clamp |
| Outer Contact Plating | Trimetal |
Dimensions
| Length | 62.99 mm / 2.480 in |
|---|---|
| Diameter | 37.08 mm / 1.460 in |
| Nominal Size | 7/8 in |
Electrical Specifications
| 3rd Order IMD at Frequency | -107 dBm/910 MHz |
|---|---|
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss, typical | 0.05 dB |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 4000 V |
| Inner Contact Resistance, maximum | 0.4 mOhm |
| Insulation Resistance, minimum | 10000 mOhm |
| Operating Frequency Band | 0 – 2700 MHz |
| Outer Contact Resistance, maximum | 1.5 mOhm |
| Peak Power, maximum | 28.8 kW |
| RF Operating Voltage, maximum (vrms) | 1200 V |
Mechanical Specifications
| Connector Retention Tensile Force | 671.68 N / 151.000 lbf |
|---|---|
| Coupling Nut Proof Torque | 35 N-m / 309.776 in lb |
| Coupling Nut Retention Force | 1000 N / 224.810 lbf |
| Coupling Nut Retention Force Method | IEC 61169-4:9.3.11 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-4:9.5 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
|---|---|
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C / 68 °F |
| Average Power, Ambient Temperature | 40 °C / 104 °F |
| Corrosion Test Method | IEC 60068-2-11 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and Weights
| Weight, net | 229.49 g / 0.506 lb |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
