Brand: CommScope
|
SKU:
553957

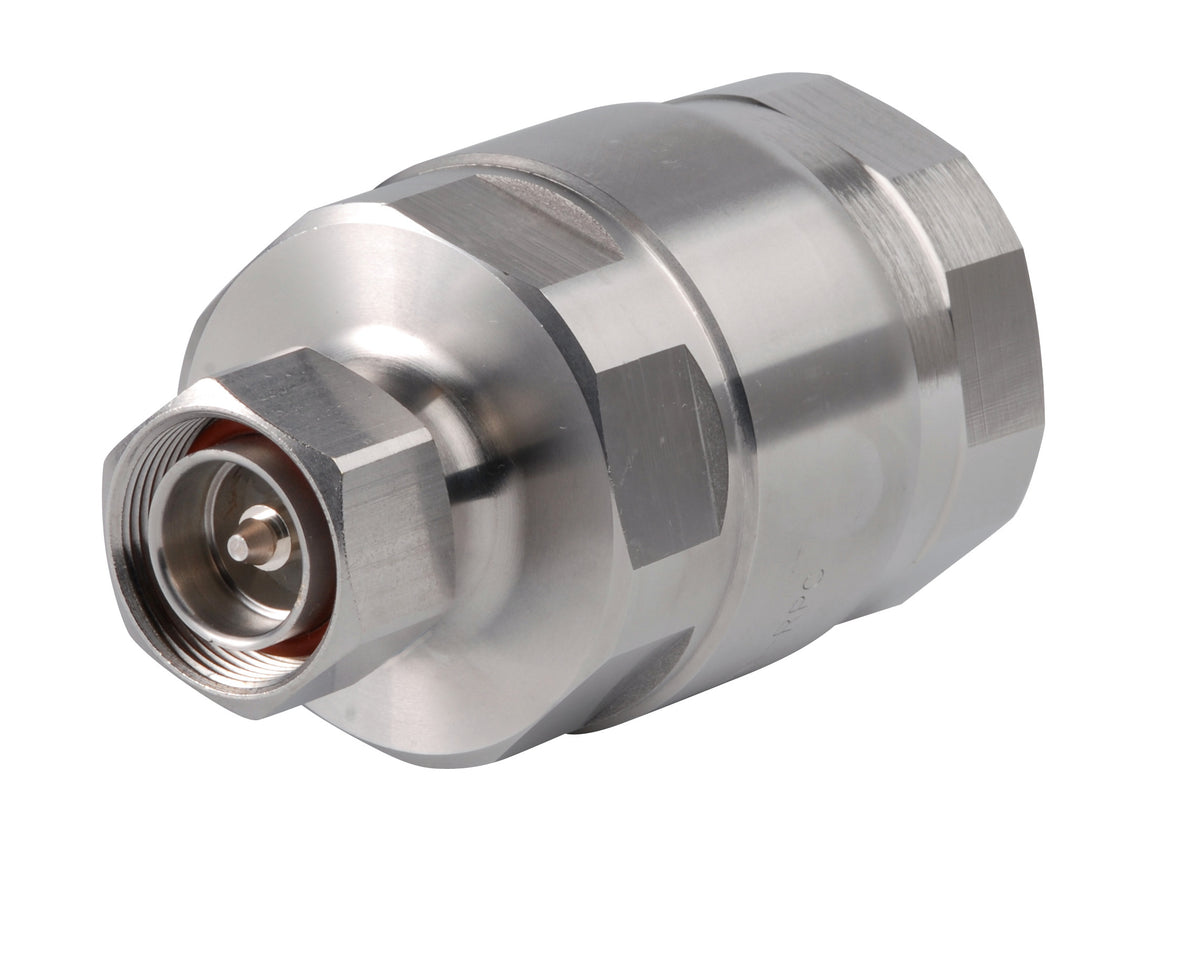

CommScope R7PDM | 7-16 DIN Male Low PIM for 1-5/8 in RCT RADIAX Radiating cable
Regular price
$198.35
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope R7PDM | 7-16 DIN Male Low PIM for 1-5/8 in RCT RADIAX Rad...
Regular price
$198.35
Unit price
Description
Description
CommScope R7PDM | 7-16 DIN Male Low PIM for 1-5/8 in RCT RADIAX Radiating cable
Specifications
Specifications
CommScope - R7PDM - Product Categories
- Connectors
- Wireless Transmission Connectors
- Wireless & Radiating Connectors
CommScope - R7PDM - Product Classification
| Product Type | Wireless and radiating connector |
|---|---|
| Product Brand | RADIAX |
CommScope - R7PDM - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | 7-16 DIN Male Low PIM for 1-5/8 in RCT RADIAX Radiating cable |
| Model Number | R7PDM |
| Body Style | Straight |
| Cable Family | RCT7 |
| Inner Contact Attachment Method | Thread-in stub |
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Male |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Clamp |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
CommScope - R7PDM - Additional Information
| Dimensions | - |
|---|---|
| Length | 106.93 mm | 4.210 in |
| Diameter | 62.99 mm | 2.480 in |
| Nominal Size | 1-5/8 in |
| Electrical Specifications | - |
| 3rd Order IMD at Frequency | -107 dBm @ 910 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss Coefficient, typical | 0.05 |
| Average Power at Frequency | 3.0 kW @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 4000 V |
| Inner Contact Resistance, maximum | 0.8 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 2700 MHz |
| Outer Contact Resistance, maximum | 1.5 mOhm |
| Peak Power, maximum | 40 kW |
| RF Operating Voltage, maximum (vrms) | 1415 V |
| Return Loss/VSWR | - |
| Frequency Band | VSWR |
| Return Loss (dB) | 50–1000 MHz |
