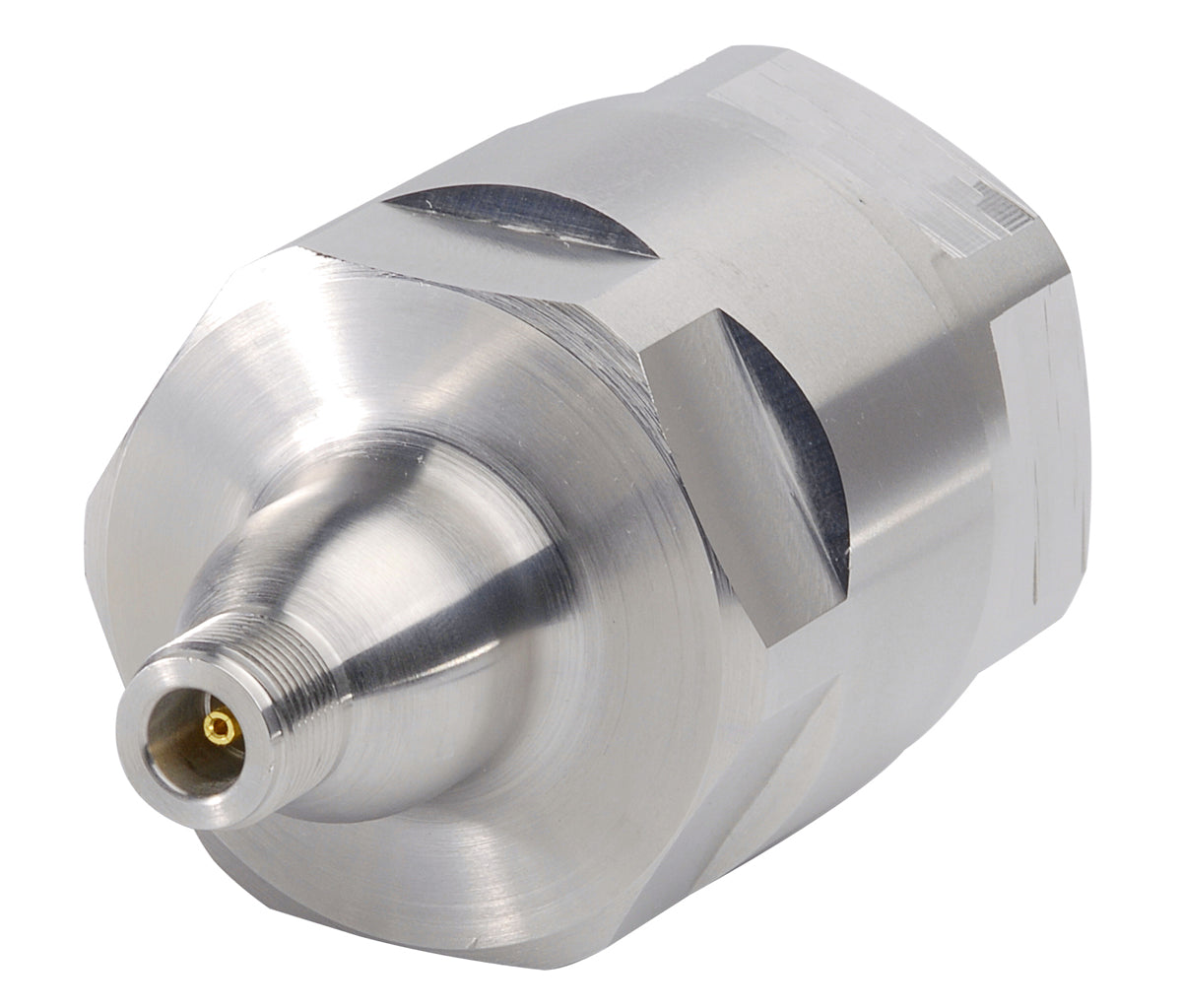

Commscope R7PNF-PS | Type N Female for 1-5/8 in RCT RADIAX Radiating cable
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Wireless and radiating connector |
|---|---|
| Product Brand | RADIAX |
General Specifications
| Body Style | Straight |
|---|---|
| Cable Family | RCT7 |
| Inner Contact Attachment Method | Thread-in stub |
| Inner Contact Plating | Gold |
| Interface | N Female |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Clamp |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Length | 105.66 mm / 4.160 in |
|---|---|
| Diameter | 62.74 mm / 2.470 in |
| Nominal Size | 1-5/8 in |
Electrical Specifications
| Insertion Loss, typical | 0.05 dB |
|---|---|
| Average Power at Frequency | 0.6 kW/900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2000 V |
| Inner Contact Resistance, maximum | 2 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 2700 MHz |
| Outer Contact Resistance, maximum | 0.3 mOhm |
| Peak Power, maximum | 10 kW |
| RF Operating Voltage, maximum (vrms) | 707 V |
Mechanical Specifications
| Attachment Durability | 25 cycles |
|---|---|
| Connector Retention Tensile Force | 889.64 N / 200.000 lbf |
| Connector Retention Torque | 4.52 N-m / 39.997 in lb |
| Insertion Force | 66.72 N / 15.000 lbf |
| Insertion Force Method | MIL-C-39012C-3.12, 4.6.9 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Mechanical Shock Test Method | MIL-STD-202F, Method 213B, Test Condition C |
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
|---|---|
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C / 68 °F |
| Average Power, Ambient Temperature | 40 °C / 104 °F |
| Corrosion Test Method | MIL-STD-1344A, Method 1001.1, Test Condition A |
| Thermal Shock Test Method | MIL-STD-202F, Method 107G, Test Condition A-1, Low Temperature -55 °C |
Packaging and Weights
| Weight, net | 832.66 g / 1.836 lb |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
