Description
Description

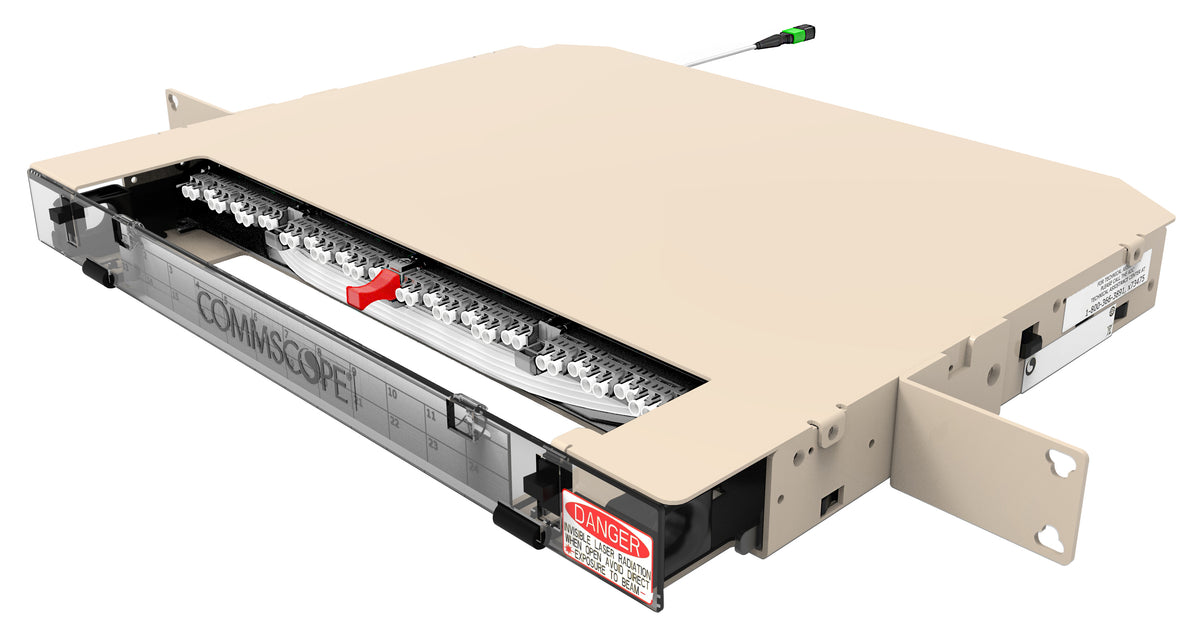

Commscope RCP-1K4PUE06100 | RapidFiber Termination Panel, 48-Position 1RU, singlemode, LC/UPC to MPO, 61 m
Specifications
Specifications
Ordering Tree
| Click on image to enlarge. |
|---|
Product Classification
| Regional Availability | Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber patch panel, with rapid cable |
| Product Brand | RapidFiber |
| Product Series | RCP |
General Specifications
| Functionality | Patching |
|---|---|
| Body Style | Symmetrical |
| Cable Exit Location | Rear, left side |
| Cable Stub Type | Indoor, microcable |
| Color | Putty white |
| Color, front | Almond |
| Door Type, front | Hinged / Slide latch / Transparant |
| Growth Configuration | Fully loaded |
| Interface, front | LC |
| Interface Feature, front | Standard |
| Interface, rear | MPO |
| Patch Cord Entry Location | Front, left side / Front, right side |
| Rack Type | EIA 19 in / EIA 23 in |
| Rack Units | 1 |
| Shelf Movement | Sliding |
| Total Ports, quantity | 48 |
| Transmission Standards | IEC 60794-2 / ISO/IEC 11801 / TIA/EIA-568-B.3 |
Dimensions
| Height | 44.45 mm / 1.75 in |
|---|---|
| Width | 482.6 mm / 19 in |
| Depth | 381 mm / 15 in |
| Cable Stub Length | 61 m / 200.131 ft |
Material Specifications
| Finish | Powder coated |
|---|---|
| Material Type | Steel |
Optical Specifications
| Fiber Mode | Singlemode |
|---|---|
| Fiber Type | G.652.D / G.657.A2/B2 |
Environmental Specifications
| Operating Temperature | -5 °C to +55 °C (+23 °F to +131 °F) |
|---|---|
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | 5%–85%, non-condensing |
| Qualification Standards | NEBS Level 3 / Telcordia GR-1435 / Telcordia GR-326 / Telcordia GR-409 / UL 1863 |
Packaging and Weights
| Packaging quantity | 1 |
|---|
Regulatory Compliance/Certifications
| ROHS | Compliant/Exempted |
|---|---|
| CHINA-ROHS | Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
