Brand: CommScope
|
SKU:
957873

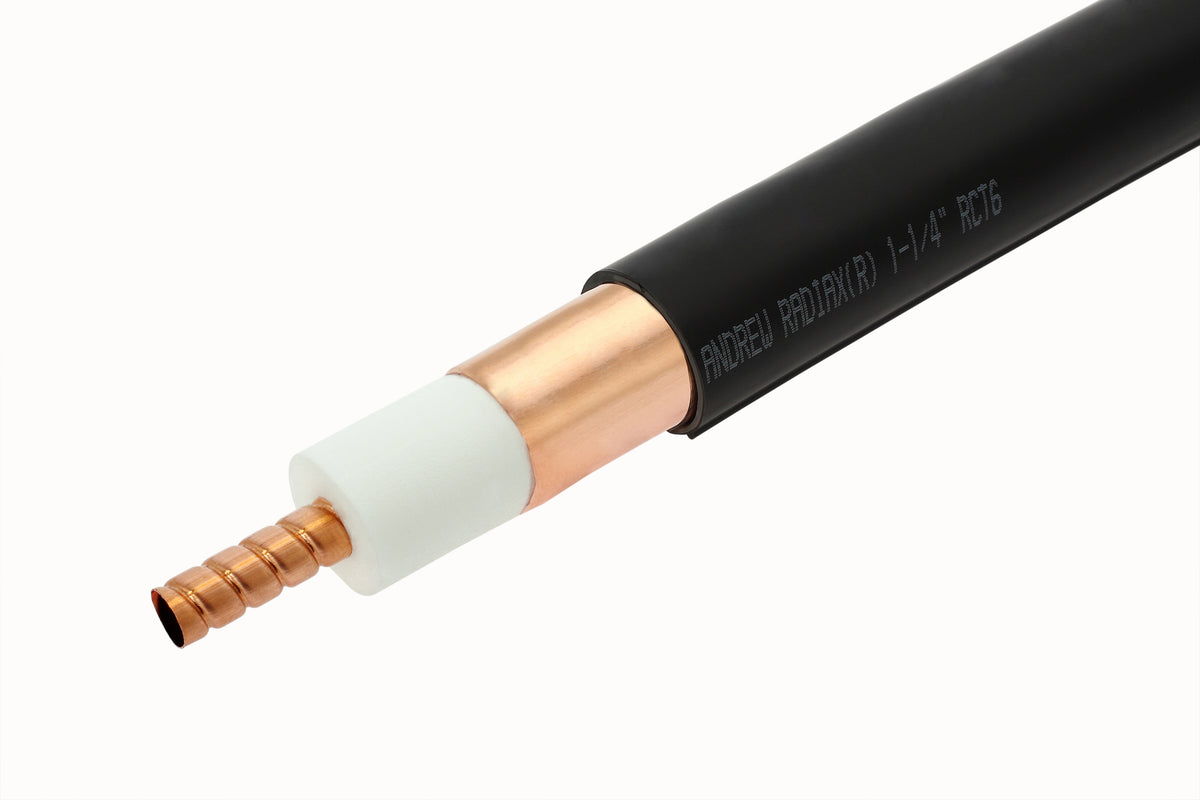

Commscope RCT6LTC5ARNAM | RCT6, RADIAX Coaxial Radiating Cable with Bump, 70–960 MHz, tuned foil, 1-1/4 in, black non-halogenated, fire retardant polyolefin jacket
Regular price
$12.09
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope RCT6LTC5ARNAM | RCT6, RADIAX Coaxial Radiating Cable with...
Regular price
$12.09
Unit price
Description
Description
Commscope RCT6LTC5ARNAM | RCT6, RADIAX Coaxial Radiating Cable with Bump, 70–960 MHz, tuned foil, 1-1/4 in, black non-halogenated, fire retardant polyolefin jacket
Specifications
Specifications
Product Classification
| Product Type | Radiating cable |
|---|---|
| Product Brand | RADIAX |
| Product Series | RCT6 |
General Specifications
| Polarization | Vertical |
|---|---|
| Cable Type | Radiating Mode (RCT) Series |
| Jacket Color | Black |
| Tape Barrier | Mica |
Dimensions
| Diameter Over Jacket | 39.116 mm / 1.54 in |
|---|---|
| Inner Conductor OD | 14.208 mm / 0.559 in |
| Outer Conductor OD | 34.29 mm / 1.35 in |
| Nominal Size | 1-1/4 in |
| Recommended Distance from the Wall | 101.6 mm / 4 in |
| Recommended Hanger Spacing | 1.3 m / 4.265 ft |
Electrical Specifications
| Attenuation Test Method | IEC 61196-4 |
|---|---|
| Attenuation Tolerance | ±5% |
| Cable Impedance | 50 ohm ±3 ohm |
| dc Resistance, Inner Conductor | 1.74 ohms/km / 0.53 ohms/kft |
| dc Resistance, Outer Conductor | 2.953 ohms/km / 0.9 ohms/kft |
| dc Test Voltage | 8500 V |
| Insulation Resistance | 100000 MOhms-km |
| Jacket Spark Test Voltage (rms) | 10000 V |
| Operating Frequency Band | 50 – 1000 MHz |
| Optimum Operating Frequency Band | 70 – 960 MHz |
| Peak Power | 180 kW |
| Stop Bands | 520 – 600 MHz |
| Velocity | 0.91 |
| VSWR Installed, typical, 50–960 MHz | 1.29999995231628 |
| VSWR on Reel, typical | 1.42999994754791 |
Material Specifications
| Dielectric Material | Foam PE |
|---|---|
| Jacket Material | Non-halogenated, fire retardant polyolefin |
| Inner Conductor Material | Corrugated copper tube |
| Outer Conductor Material | Copper foil |
Mechanical Specifications
| Minimum Bend Radius, Single Bend | 381 mm / 15 in |
|---|---|
| Tensile Strength | 168 kg / 370.376 lb |
| Bending Moment | 15.5 N-m / 137.187 in lb |
| Coupling Loss Test Method | IEC 61196-4 |
| Coupling Loss Tolerance | ±5 dB |
| Flat Plate Crush Strength | 1.4 kg/mm / 78.396 lb/in |
| Indication of Slot Alignment | Yes–bumps face the wall |
Environmental Specifications
| Installation temperature | -30 °C to +60 °C (-22 °F to +140 °F) |
|---|---|
| Operating Temperature | -30 °C to +80 °C (-22 °F to +176 °F) |
| Storage Temperature | -30 °C to +80 °C (-22 °F to +176 °F) |
| Attenuation, Ambient Temperature | 20 °C / 68 °F |
| Average Power, Ambient Temperature | 40 °C / 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C / 212 °F |
| Fire Retardancy Test Method | IEC 60332-1 / IEC 60332-3C-24 / NFPA 130-2010 |
| Smoke Index Test Method | IEC 61034 |
| Toxicity Index Test Method | IEC 60754-1 / IEC 60754-2 |
Packaging and Weights
| Cable weight | 0.64 kg/m / 0.430 lb/ft |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
