Brand: CommScope
|
SKU:
470351

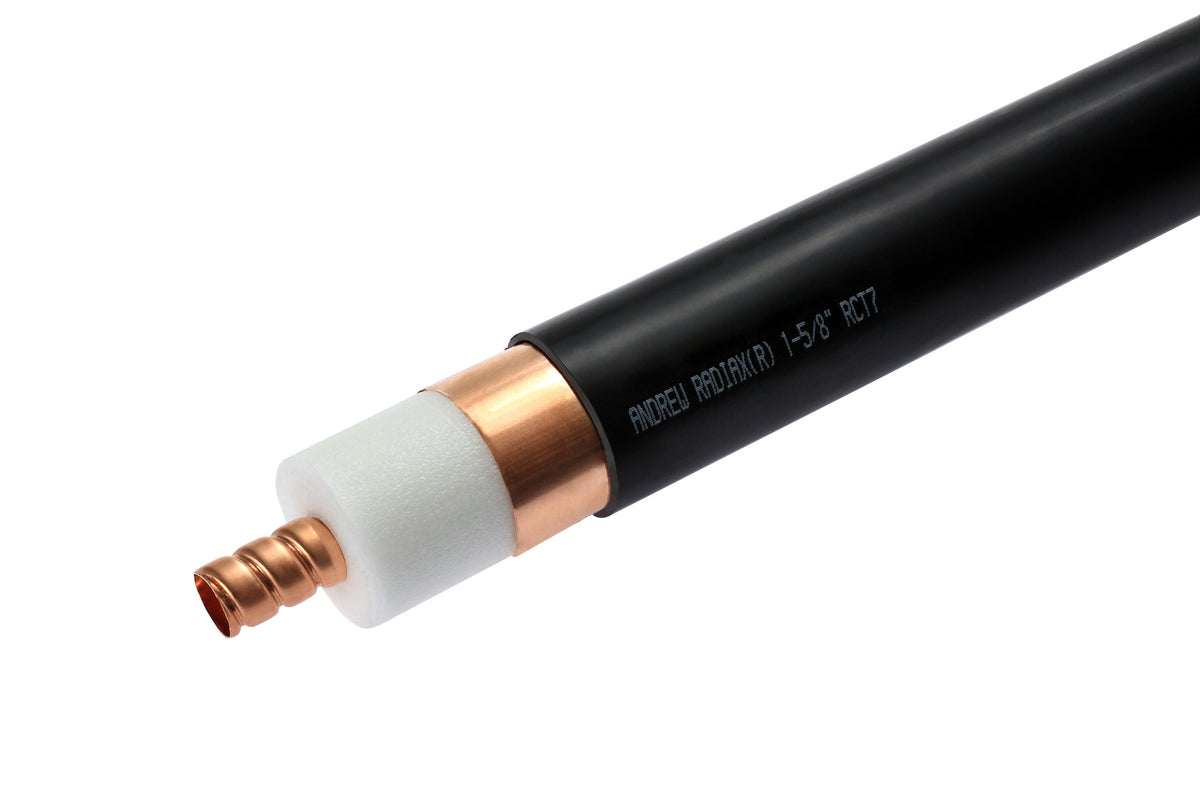

Commscope RCT7LTC4ARNAM | Rct7, Radiax Coaxial Radiating Cable With Bump, 70–960 Mhz, Tuned Foil, 1-5/8 In, Black Non-Halogenated, Fire Retardant Polyolefin Jacket
Regular price
$18.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope RCT7LTC4ARNAM | Rct7, Radiax Coaxial Radiating Cable With...
Regular price
$18.45
Unit price
Description
Description
Commscope RCT7LTC4ARNAM | Rct7, Radiax Coaxial Radiating Cable With Bump, 70–960 Mhz, Tuned Foil, 1-5/8 In, Black Non-Halogenated, Fire Retardant Polyolefin Jacket
Wide band meets demands for all modern communication systems, paging, Tetra/TETRAPOL, TDMA/CDMA, GSM, PCS, EVDO, UMTS, Wi-Fi, LTE Optimized performance for specific frequency bands single or dual-band RF systems Halogen-free and fire-retardant jacketing Low insertion loss and system link loss Low and stable PIM performance
Specifications
Specifications
Commscope - RCT7LTC4ARNAM - Product Categories
- Cables
- Wireless Transmission Cables
- Radiating Cables
Commscope - RCT7LTC4ARNAM - Specifications
| Brand Name | Hoffman |
|---|---|
| Manufacturer Part Number | RCT7LTC4ARNAM |
| Item Description | Rct7, Radiax Coaxial Radiating Cable With Bump, 70–960 Mhz, Tuned Foil, 1-5/8 In, Black Non-Halogenated, Fire Retardant Polyolefin Jacket |
| Product Classification | - |
| Product Type | Radiating cable |
| Product Brand | RADIAX |
| Product Series | RCT7 |
| General Specifications | - |
| Polarization | Vertical |
| Cable Type | Radiating Mode (RCT) Series |
| Jacket Color | Black |
| Tape Barrier | Mica |
| Dimensions | - |
| Diameter Over Jacket, maximum | 49.784 mm | 1.96 in |
| Inner Conductor OD | 18.161 mm | 0.715 in |
| Outer Conductor OD | 43.815 mm | 1.725 in |
| Nominal Size | 1-5/8 in |
| Recommended Distance from the Wall | 101.6 mm | 4 in |
| Mechanical Specifications | - |
| Installation temperature | -30 °C to +60 °C (-22 °F to +140 °F) |
| Operating Temperature | -30 °C to +80 °C (-22 °F to +176 °F) |
| Storage Temperature | -30 °C to +80 °C (-22 °F to +176 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Environmental Specifications | - |
| Cable weight | 0.83 kg/m | 0.558 lb/ft |
| Regulatory Compliance/Certifications | - |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
