Brand: CommScope
|
SKU:
S-2-UW-H-NI6

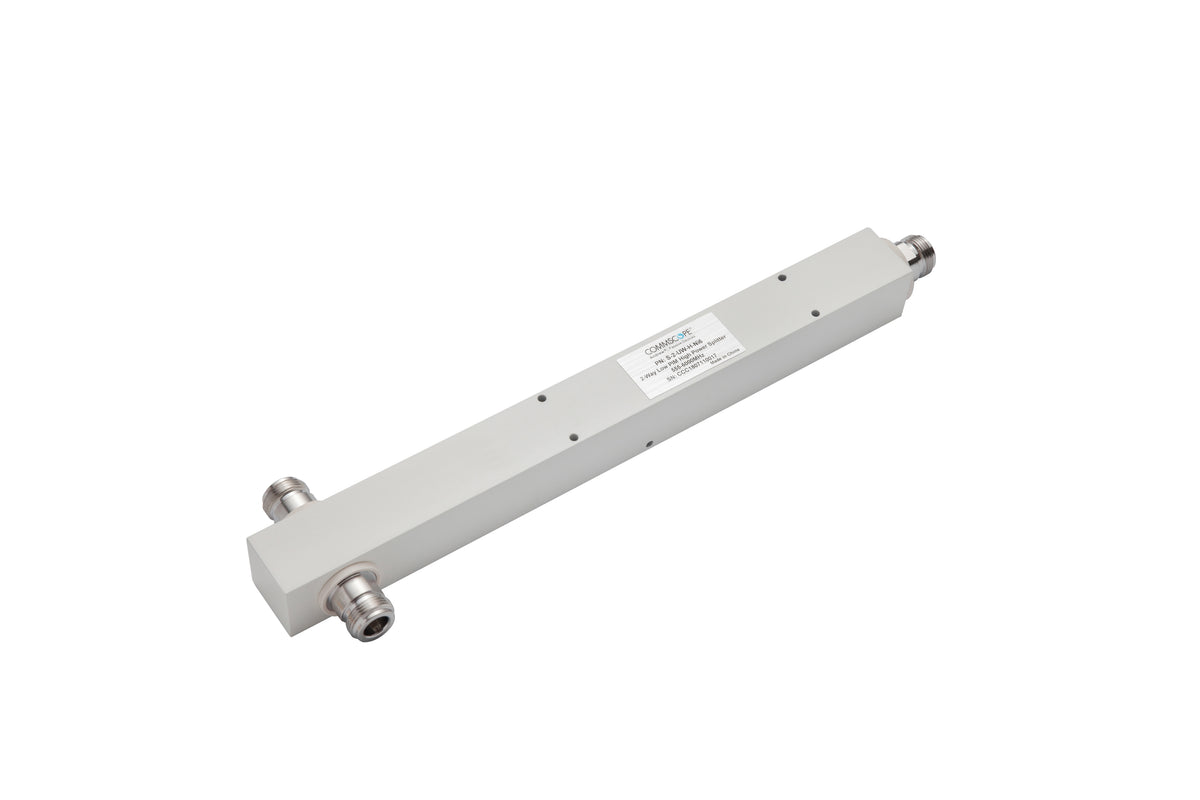

Commscope S-2-UW-H-NI6 | Ultra Wideband Two-way Low PIM Reactive High Power Splitter, 555–6000 MHz
Regular price
$129.90
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope S-2-UW-H-NI6 | Ultra Wideband Two-way Low PIM Reactive Hi...
Regular price
$129.90
Unit price
Brand: CommScope
|
SKU:
S-2-UW-H-NI6
Regular price
$129.90
Unit price
Shipping calculated at checkout.
Description
Description
Ultra Wideband Two-way Low PIM Reactive High Power Splitter, 555–6000 MHz (Additional mounting bracket PN:42396A-17 sold separately)
Specifications
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Product Type | Power splitter |
General Specifications
| Device Type | Splitter |
|---|---|
| Application | Indoor/Outdoor |
| Color | White |
| Inner Contact Plating | Silver |
| Interface | N Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 25 mm | 0.984 in |
|---|---|
| Width | 61 mm | 2.402 in |
| Length | 267 mm | 10.512 in |
Electrical Specifications
| 3rd Order IMD | -163 dBc |
|---|---|
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss at Frequency Band | 0.2 dB @ 555–2700 MHz | 0.3 dB @ 2700–6000 MHz |
| Return Loss, minimum | 19.1 dB |
| Average Power, maximum | 300 W |
| Impedance | 50 ohm |
| Operating Frequency Band | 555 – 6000 MHz |
| Peak Power, maximum | 3 kW |
| Power Rating, Splitting | 300 W |
| Reflected Power, maximum | 300 W |
| Split Loss | 3 dB |
| VSWR | 1.25 |
Environmental Specifications
| Operating Temperature | -25 °C to +85 °C (-13 °F to +185 °F) |
|---|---|
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and Weights
| Height, packed | 42 mm | 1.654 in |
|---|---|
| Width, packed | 77 mm | 3.031 in |
| Length, packed | 315 mm | 12.402 in |
| Weight, gross | 0.5 kg | 1.102 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant/Exempted |
| CHINA-ROHS | Above maximum concentration value |
