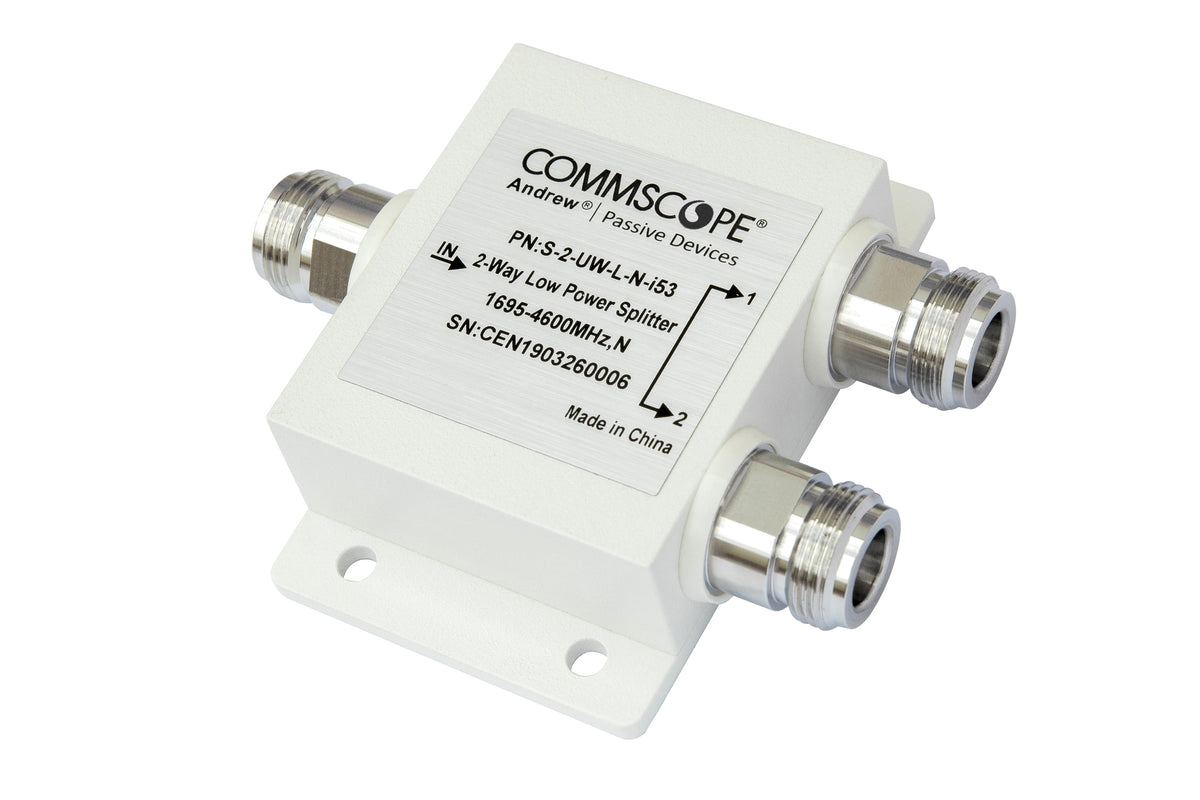

CommScope S-2-UW-L-N-I53 | Two-way Low Power Splitter, 1695-4600MHz
Regular price
$144.82
Unit price
Brand: CommScope
|
SKU:
S-2-UW-L-N-I53
Regular price
$144.82
Unit price
Description
Description
CommScope S-2-UW-L-N-I53 | Two-way Low Power Splitter, 1695-4600MHz
Specifications
Specifications
CommScope - S-2-UW-L-N-I53 - Product Categories
- Splitters, Combiners & Multiplexers
- In-building Wireless Passive Devices
- Splitters
CommScope - S-2-UW-L-N-I53 - Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Product Type | Power splitter |
CommScope - S-2-UW-L-N-I53 - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | Two-way Low Power Splitter, 1695-4600MHz |
| Model Number | S-2-UW-L-N-I53 |
| Device Type | Splitter |
| Application | Indoor/Outdoor |
| Color | White |
| Inner Contact Plating | Silver |
| Interface | N Female |
| Outer Contact Plating | Trimetal |
CommScope - S-2-UW-L-N-I53 - Additional Information
| Dimensions | - |
|---|---|
| Height | 22 mm | 0.866 in |
| Width | 76 mm | 2.992 in |
| Length | 84 mm | 3.307 in |
| Electrical Specifications | - |
| 3rd Order IMD | -153 dBc |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss at Frequency Band | 0.2 dB @ 1695–2700 MHz | 0.3 dB @ 2700–4000 MHz | 0.4 dB @ 4000–4600 MHz |
| Average Power, maximum | 80 W |
| Impedance | 50 ohm |
| Isolation Between Bands | 20 dB |
| Operating Frequency Band | 1695 – 4600 MHz |
| Peak Power, maximum | 1 kW |
| Power Rating, combining | 0.5 W |
| Power Rating, Splitting | 80 W |
| Reflected Power, maximum | 3 W |
| Split Loss | 3 dB |
| VSWR | 1.2 |
| Environmental Specifications | - |
| Operating Temperature | -25 °C to +85 °C (-13 °F to +185 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
