Brand: CommScope
|
SKU:
518504

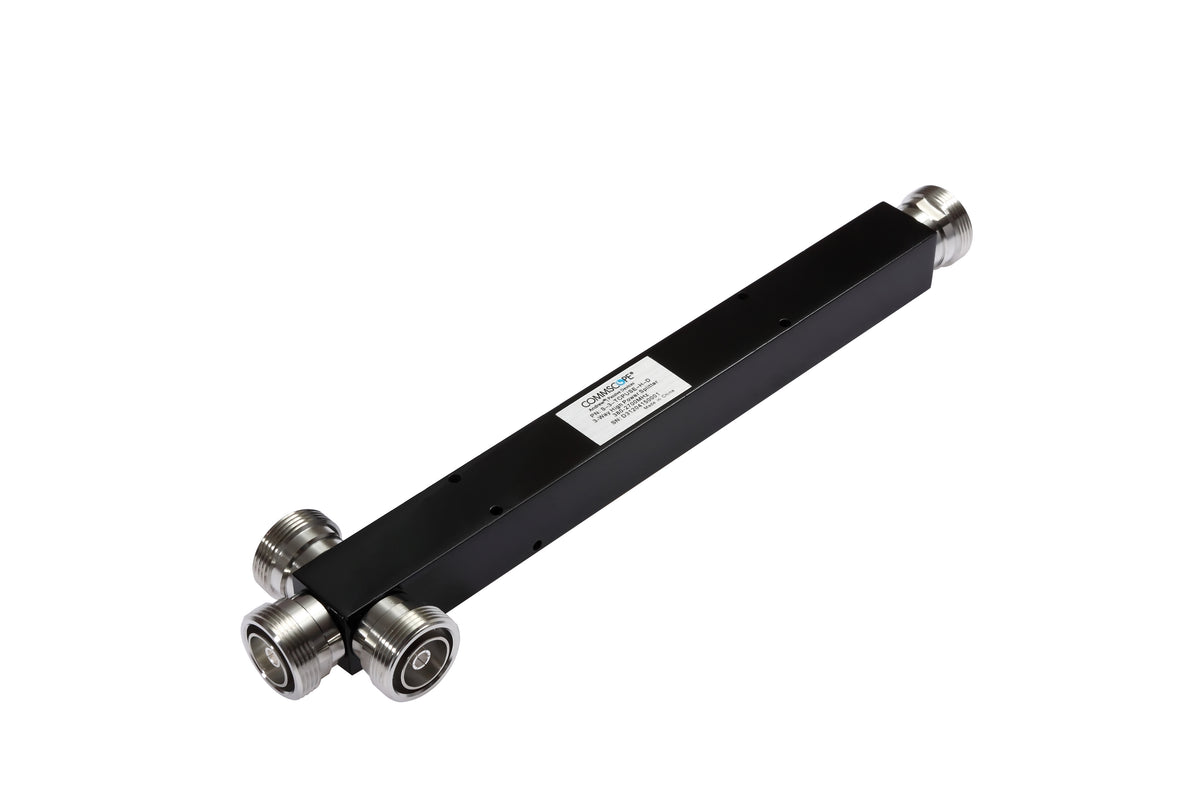

Commscope S-3-TCPUSE-H-D | Multiband Three-way Reactive High Power Splitter, 380–2700 MHz (Additional mounting bracket PN:42396A-17 sold separately)
Regular price
$440.02
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope S-3-TCPUSE-H-D | Multiband Three-way Reactive High Power ...
Regular price
$440.02
Unit price
Description
Description
Commscope S-3-TCPUSE-H-D | Multiband Three-way Reactive High Power Splitter, 380–2700 MHz (Additional mounting bracket PN:42396A-17 sold separately)
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Product Type | Power splitter |
General Specifications
| Device Type | Splitter |
|---|---|
| Application | Indoor/Outdoor |
| Color | Black |
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 29 mm / 1.142 in |
|---|---|
| Width | 64 mm / 2.52 in |
| Length | 297 mm / 11.693 in |
Electrical Specifications
| 3rd Order IMD | -150 dBc |
|---|---|
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Return Loss, minimum | 19 dB |
| Average Power, maximum | 300 W |
| Dissipative Loss at Frequency Band | 0.2 dB/380–2700 MHz |
| Impedance | 50 ohm |
| Operating Frequency Band | 380 – 2700 MHz |
| Peak Power, maximum | 3 kW |
| Power Rating, Splitting | 300 W |
| Reflected Power, maximum | 300 W |
| Split Loss | 4.8 dB |
| VSWR | 1.25 |
Environmental Specifications
| Operating Temperature | -25 °C to +85 °C (-13 °F to +185 °F) |
|---|---|
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
Packaging and Weights
| Height, packed | 43 mm / 1.693 in |
|---|---|
| Width, packed | 80 mm / 3.15 in |
| Length, packed | 310 mm / 12.205 in |
| Volume | 1066400 mm³ / 65.076 in³ |
| Weight, gross | 0.76 kg / 1.676 lb |
| Weight, net | 0.67 kg / 1.477 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
