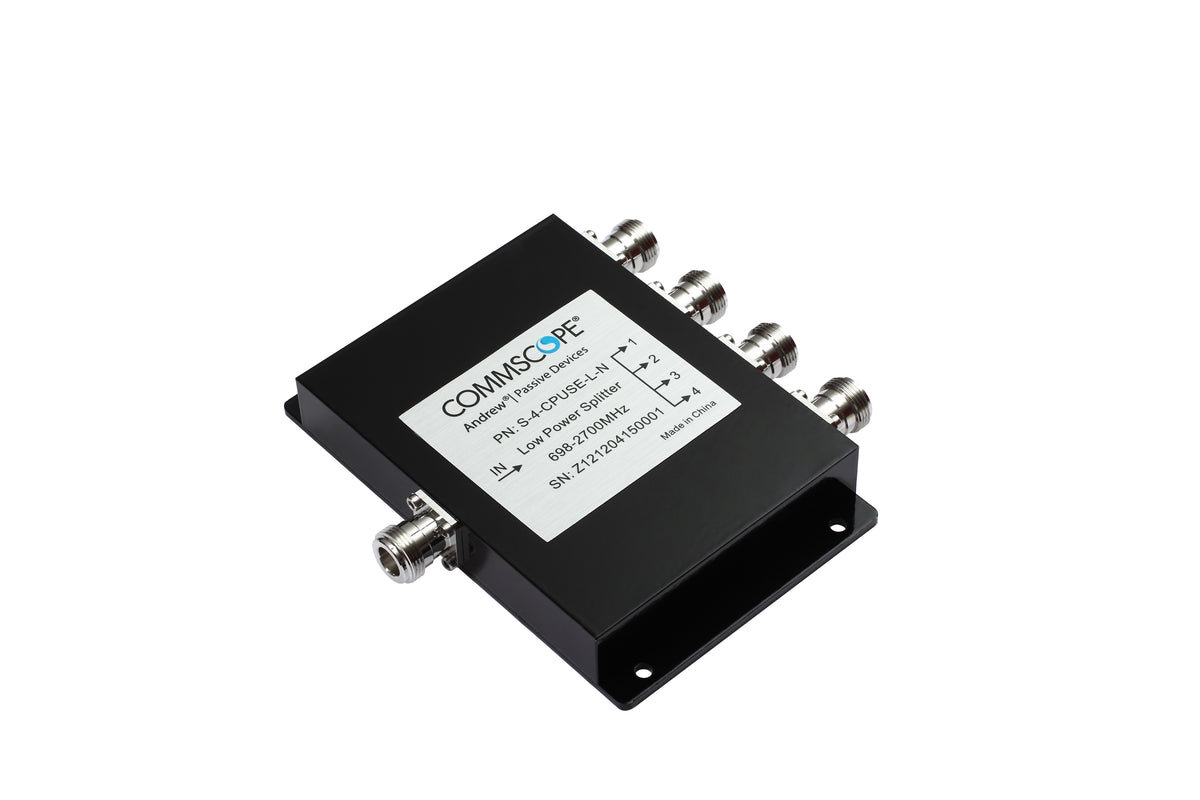

Commscope S-4-CPUSE-L-N | Four-way Low Power Splitter, 555–2700 MHz
Regular price
$114.49
Unit price
Brand: CommScope
|
SKU:
S-4-CPUSE-L-N
Regular price
$114.49
Unit price
Description
Description
Commscope S-4-CPUSE-L-N | Four-way Low Power Splitter, 555–2700 MHz
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Product Type | Power splitter |
General Specifications
| Device Type | Splitter |
|---|---|
| Application | Indoor/Outdoor |
| Color | Black |
| Inner Contact Plating | Silver |
| Interface | N Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 22 mm / 0.866 in |
|---|---|
| Width | 141 mm / 5.551 in |
| Length | 129 mm / 5.079 in |
Electrical Specifications
| 3rd Order IMD | -130 dBc |
|---|---|
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss at Frequency Band | 0.65 dB/555–2700 MHz |
| Average Power, maximum | 80 W |
| Impedance | 50 ohm |
| Operating Frequency Band | 555 – 2700 MHz |
| Peak Power, maximum | 1 kW |
| Power Rating, combining | 0.5 W |
| Power Rating, Splitting | 80 W |
| Reflected Power, maximum | 5 W |
| Split Loss | 6 dB |
Environmental Specifications
| Operating Temperature | -25 °C to +85 °C (-13 °F to +185 °F) |
|---|---|
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
Packaging and Weights
| Height, packed | 40 mm / 1.575 in |
|---|---|
| Width, packed | 160 mm / 6.299 in |
| Length, packed | 160 mm / 6.299 in |
| Volume | 1024000 mm³ / 62.489 in³ |
| Weight, gross | 0.67 kg / 1.477 lb |
| Weight, net | 0.6 kg / 1.323 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant/Exempted |
| CHINA-ROHS | Above maximum concentration value |
