Commscope SC-2X20AWG-FR | Security Cable, 20 AWG
Regular price
$1.67
Unit price
Brand: CommScope
|
SKU:
470466
Regular price
$1.67
Unit price
Description
Description

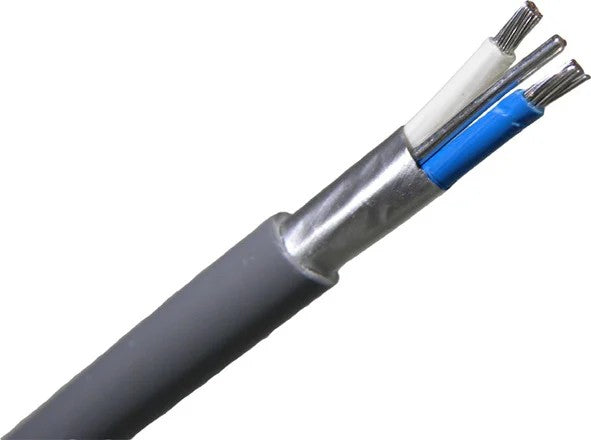

Commscope SC-2X20AWG-FR | Security Cable, 20 AWG
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Copper security cable |
General Specifications
| Cable Type | Security |
|---|---|
| Conductor Type, singles | Stranded |
| Conductors, quantity | 2 |
| Construction Type | Non-armored |
| Drain Wire Type | Solid |
| Jacket Color | Gray |
| Jacket Color, singles | Blue / White |
| Supported Application | Industrial |
Dimensions
| Diameter Over Insulated Single | 1.397 mm / 0.055 in |
|---|---|
| Diameter Over Jacket, nominal | 4.064 mm / 0.16 in |
| Insulation Thickness, singles | 0.229 mm / 0.009 in |
| Jacket Thickness | 0.508 mm / 0.02 in |
| Conductor Gauge, singles | 20 AWG |
| Drain Wire Gauge | 20 AWG |
Electrical Specifications
| Capacitance | 118.11 pF/m / 36 pF/ft |
|---|---|
| Conductor dc Resistance | 11 ohms/kft / 36.089 ohms/km |
| Operating Voltage, maximum | 300 V |
Material Specifications
| Center Conductor Material | Stranded tinned copper wire |
|---|---|
| Conductor Material | Stranded tinned copper wire |
| Dielectric Material | Polyolefin |
| Drain Wire Material | Tinned copper |
| Insulation Material, singles | Polyolefin |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Inner Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Shield (Tape) Material | Polyester/Aluminum tape |
Mechanical Specifications
| Minimum Bend Radius, unloaded, times | 10 times |
|---|
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
|---|---|
| Environmental Space | Low Smoke Zero Halogen (LSZH) |
| Flame Test Method | CMR |
Packaging and Weights
| Cable weight | 24.793 kg/km / 16.66 lb/kft |
|---|---|
| Packaging Type | Reel |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
