Brand: CommScope | SKU: 472602

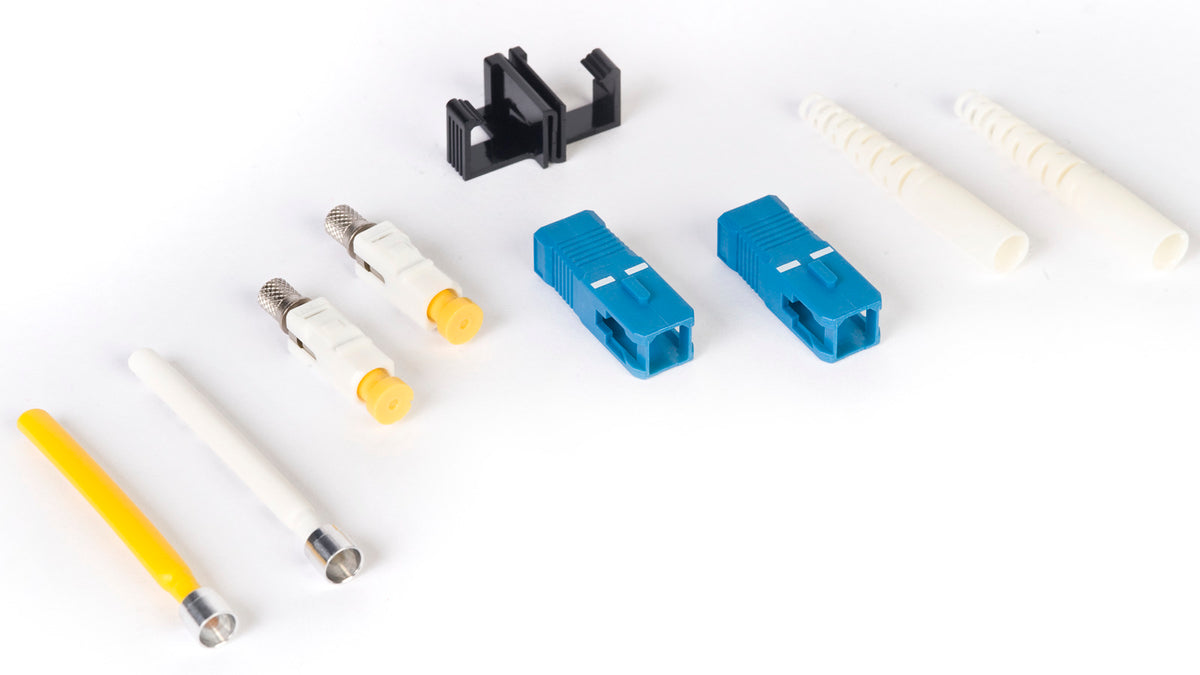

Commscope SDC-SCR-16-BL | TeraSPEED Pre-Radiused SC Connector for 1.6 mm Fiber Cordage, Duplex, single-mode

$22.55

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Commscope SDC-SCR-16-BL | TeraSPEED Pre-Radiused SC Connector for 1.6 mm Fiber Cordage, Duplex, single-mode

Specifications

Product Classification

Regional Availability	Asia / Australia/New Zealand / EMEA / Latin America / North America
Portfolio	CommScope
Product Type	Fiber connector
Product Brand	TeraSPEED

General Specifications

Body Style	Duplex
Color	Blue
Ferrule Geometry	Pre-radiused
Interface	SC
Interface Feature	Standard

Dimensions

Length	56 mm / 2.205 in
Compatible Cable Diameter	1.6 mm / 0.063 in

Material Specifications

Ferrule Material	Zirconia

Mechanical Specifications

Cable Retention Strength, maximum	11.24 lb/0 °

Optical Specifications

Fiber Type	G.652.D and G.657.A1 , TeraSPEED / OS2
Insertion Loss Change, mating	0.3 dB
Optical Components Standard	ANSI/TIA-568-C.3
Insertion Loss Change, temperature	0.3 dB
Insertion Loss, typical	0.3 dB
Return Loss, minimum	55 dB

Packaging and Weights

Packaging quantity	2

Regulatory Compliance/Certifications

ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
