Brand: CommScope
|
SKU:
518781

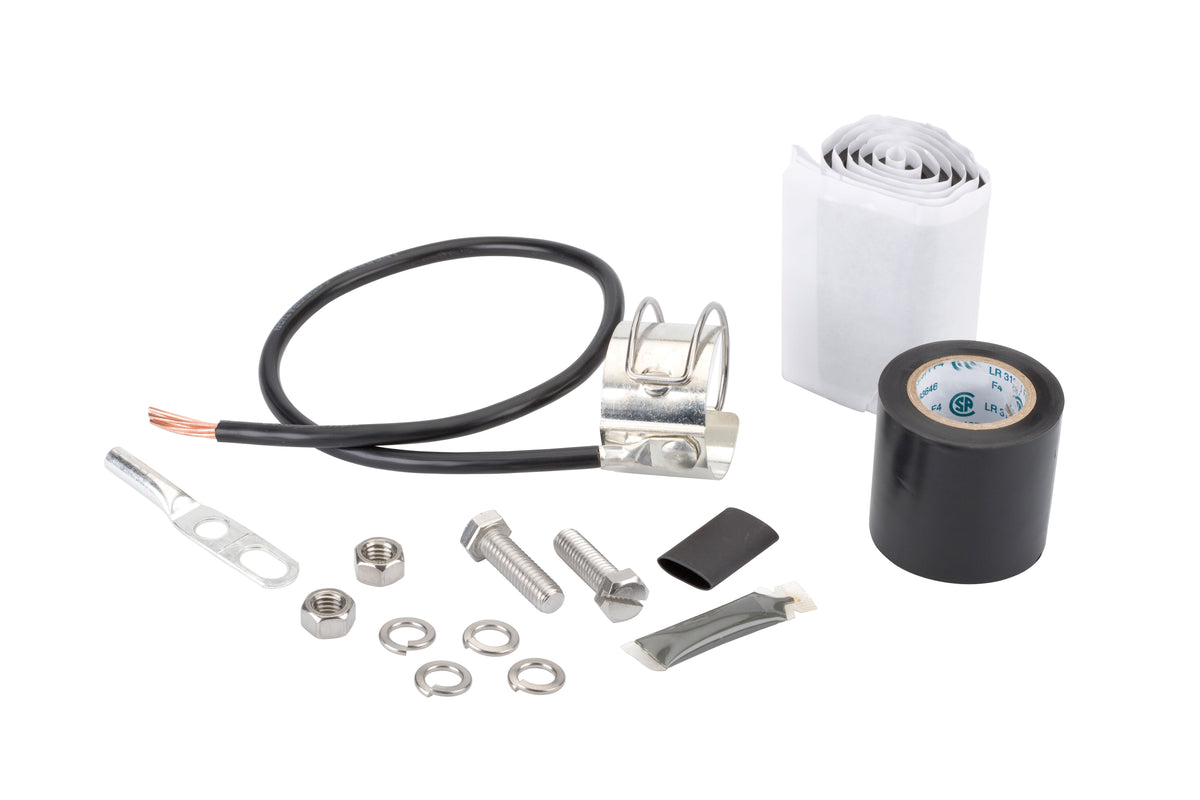

Commscope SG114-12B2U | SureGround Grounding Kit for 1-1/4 in coaxial cable
Regular price
$30.30
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope SG114-12B2U | SureGround Grounding Kit for 1-1/4 in coaxi...
Regular price
$30.30
Unit price
Description
Description
Commscope SG114-12B2U | SureGround Grounding Kit for 1-1/4 in coaxial cable
Specifications
Specifications
Product Classification
| Product Type | Grounding kit |
|---|---|
| Product Brand | SureGround |
| Ordering Note | CommScope standard product in Asia Pacific / CommScope standard product in the United States and Canada |
General Specifications
| Bonding Conductor Jacketing Material | PVC |
|---|---|
| Bonding Conductor Material | Copper |
| Bonding Conductor Wire Size | 6 gauge |
| Cable Type | Corrugated / Smoothwall |
| Color | Black |
| Grounding Kit Type | SureGround Grounding Kits |
| Grounding Strap Material | Tinned copper |
| Lug Attachment | Field attached |
| Lug Type | Two-hole lug |
| Thread Size | 3/8 in |
Dimensions
| Bonding Conductor Length | 1219.2 mm / 48 in |
|---|---|
| Cable Jacketing Removal Length, maximum | 38.1 mm / 1.5 in |
| Cable Jacketing Removal Length, minimum | 38.1 mm / 1.5 in |
| Compatible Diameter, maximum | 40.132 mm / 1.58 in |
| Compatible Diameter, minimum | 38.354 mm / 1.51 in |
| Nominal Size | 1-1/4 in |
Electrical Specifications
| Current Handling | Tested to withstand 100,000 amps peak current surge |
|---|---|
| Current Handling Test Method | MIL-STD-1757 |
| Grounding, Bonding and Shielding Test Method | MIL-STD-188-124A |
| Lightning Protection Test Method | IEC 1024-1 |
Material Specifications
| Locking Bail Material | Stainless steel |
|---|---|
| Rivet Material | Tinned copper |
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
|---|---|
| Storage Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Blowing Rain Test Method | MIL-STD-810, Method 506 |
| Corrosion Test Method | MIL-STD-1344, Method 1001 |
| Freezing Rain/Icing Test Method | MIL-STD-810, Method 521 |
| Humidity Test Method | MIL-STD-1344, Method 1002 |
| Immersion Test Method | IEC 60529:2001, IP68 |
| UV Resistance Test Method | MIL-STD-810, Method 505 |
| Vibration Test Method | MIL-STD-202, Method 214 |
| Weatherproofing Method | Butyl and electric tape |
Packaging and Weights
| Height, packed | 292.1 mm / 11.5 in |
|---|---|
| Width, packed | 55.88 mm / 2.2 in |
| Length, packed | 177.8 mm / 7 in |
| Included | Grounding kit / Hardware / Lug / One roll of 2 in PVC tape / One roll of 24 in butyl rubber tape |
| Packaging quantity | 1 |
| Weight, gross | 0.62 kg / 1.367 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- SureGround Grounding Kits for Coaxial Cables
- Statement of Compliance RoHS/REACH
- Accessories for HELIAX Products
- SG114-12B2U Product specifications
- SG114-12B2U Product specifications (Comprehensive)
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- Installation Accessories Part Number Cross Reference – MTS to Andrew
- SureGround and SureGround Plus Grounding Kit Qualification Report
