Brand: CommScope
|
SKU:
470629

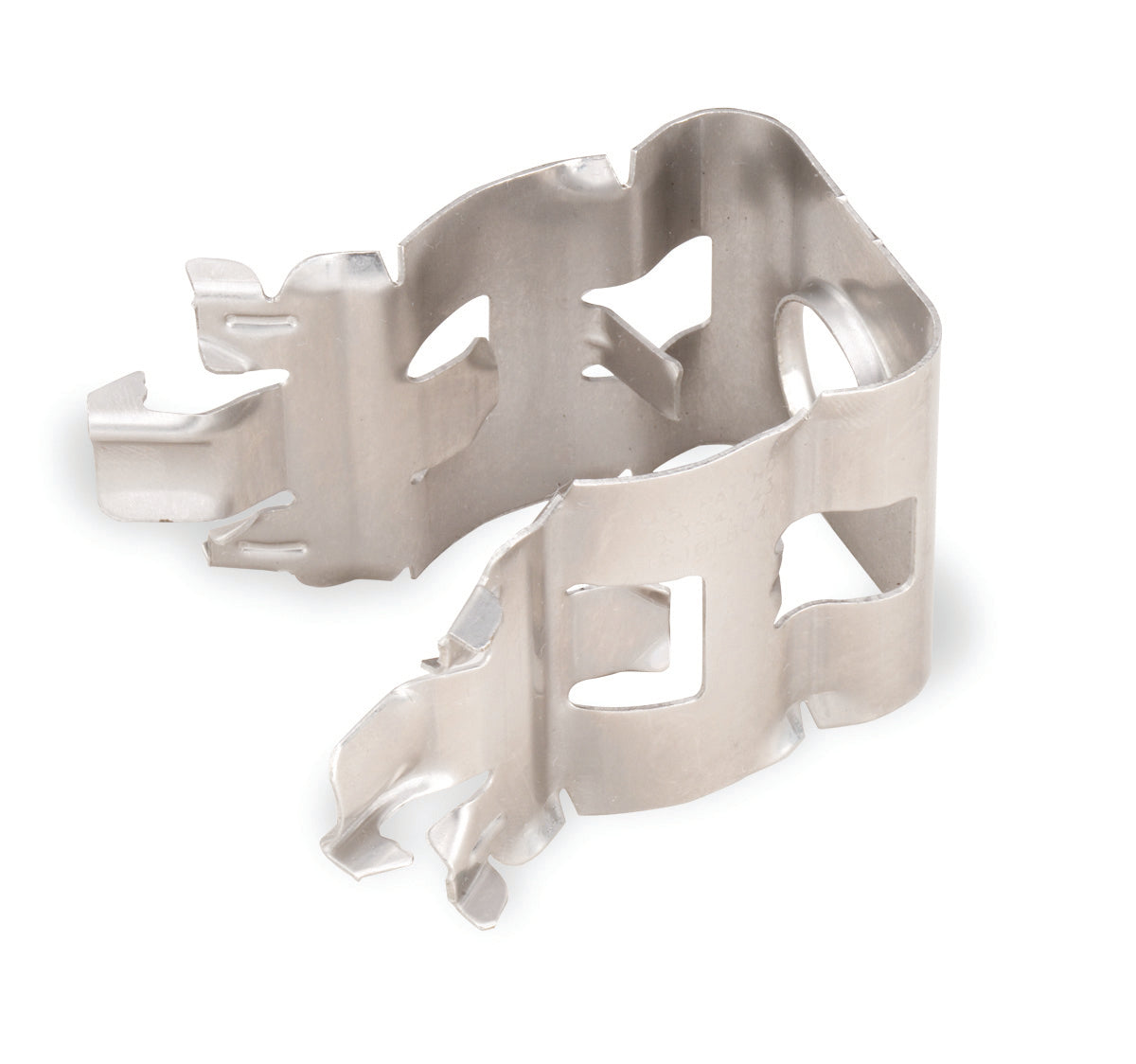

Commscope SSH-114-3 | SnapStak Hanger for 1-1/4 in coaxial cable, triple stack capability, includes reinforcement bar
Regular price
$38.67
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope SSH-114-3 | SnapStak Hanger for 1-1/4 in coaxial cable, t...
Regular price
$38.67
Unit price
Brand: CommScope
|
SKU:
470629
Regular price
$38.67
Unit price
Description
Description
Commscope SSH-114-3 | SnapStak Hanger for 1-1/4 in coaxial cable, triple stack capability, includes reinforcement bar
Specifications
Specifications
Product Classification
| Product Type | Hanger kit |
|---|---|
| Product Brand | SnapStak |
| Ordering Note | CommScope standard product (Global) |
General Specifications
| Cables per Hanger | 1 |
|---|---|
| Color | Silver |
| Hanger Type | Snap-in hanger |
| Mounting | 3/4 in drilled cable ladder |
Dimensions
| Height | 40.894 mm / 1.61 in |
|---|---|
| Maximum Stack Height | 3 |
| Width | 40.132 mm / 1.58 in |
| Length | 81.026 mm / 3.19 in |
| Compatible Diameter, maximum | 43.18 mm / 1.7 in |
| Compatible Diameter, minimum | 37.592 mm / 1.48 in |
| Nominal Size | 1-1/4 in |
Electrical Specifications
| Return Loss Effect | 0.1 dB |
|---|---|
| DTF Effect | 0.1 dB |
Material Specifications
| Material Type | Stainless steel |
|---|
Mechanical Specifications
| Vibration Survival | ?4 hours at resonant frequency |
|---|
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
|---|---|
| Corrosion Resistance, minimum with no degredation | ?500 hours in salt spray chamber |
| Environmental Strength Capability | Double cable weight |
Packaging and Weights
| Height, packed | 22 cm / 8.661 in |
|---|---|
| Width, packed | 14.6 cm / 5.748 in |
| Length, packed | 14.8 cm / 5.827 in |
| Packaging quantity | 10 |
| Weight, gross | 0.52 kg / 1.146 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- 237637 SnapStak Snap-in Hangers for HELIAX Coaxial Cables
- SnapStak Snap-in Hangers
- Statement of Compliance RoHS/REACH
- HELIAX standard product selection guide 2017
- SSH-114-3 Product specifications
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- 7719798 HELIAX Coaxial and Elliptical Waveguide Hanger Spacing Guidelines
- Hanging Cable
