Brand: CommScope
|
SKU:
881772

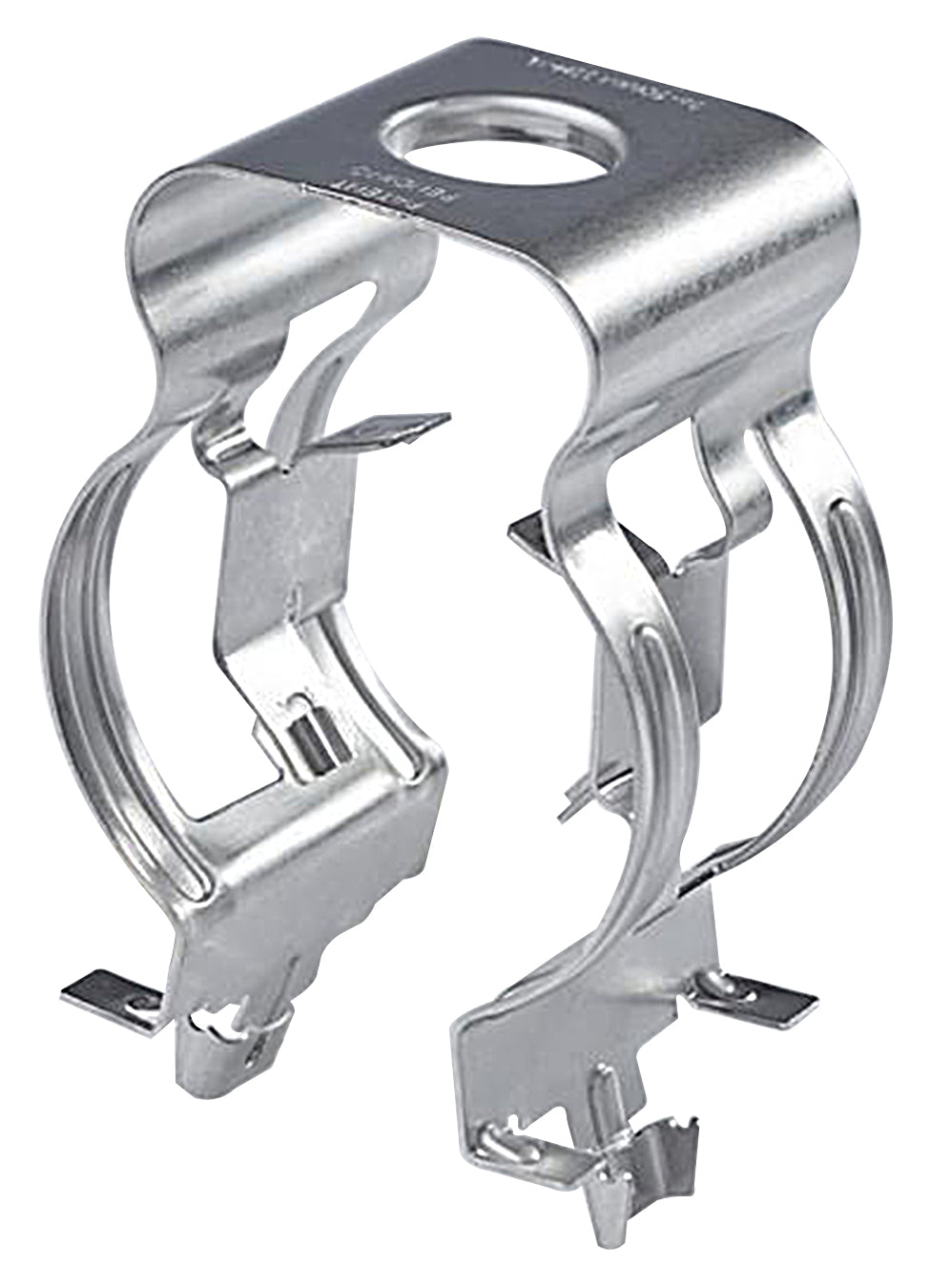

Commscope SSH-XL | SnapStak Plus Adjustable Hanger for 36mm to 51mm Cable - No Grommets Required. For patents, see www.cs-pat.com.
Regular price
$71.17
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope SSH-XL | SnapStak Plus Adjustable Hanger for 36mm to 51mm...
Regular price
$71.17
Unit price
Description
Description
Commscope SSH-XL | SnapStak Plus Adjustable Hanger for 36mm to 51mm Cable - No Grommets Required. For patents, see www.cs-pat.com.
Specifications
Specifications
Product Classification
| Product Type | Hanger kit |
|---|---|
| Product Brand | SnapStak Plus |
| Ordering Note | CommScope standard product in the United States and Canada |
General Specifications
| Accessories | Hangers |
|---|---|
| Cables per Hanger | 1 |
| Color | Silver |
| Hanger Type | Snap-in hanger |
| Mounting | 3/4 in drilled cable ladder |
| Patent Number | US 9,866,004 |
Dimensions
| Height | 88.138 mm / 3.47 in |
|---|---|
| Maximum Stack Height | 2 |
| Maximum Stack Height, Coaxial | 2 |
| Width | 40.894 mm / 1.61 in |
| Length | 99.06 mm / 3.9 in |
| Compatible Diameter, maximum | 51.003 mm / 2.008 in |
| Compatible Diameter, minimum | 35.992 mm / 1.417 in |
Electrical Specifications
| Return Loss Effect | 0.1 dB |
|---|---|
| DTF Effect | 0.1 dB |
Material Specifications
| Material Type | Stainless steel |
|---|
Mechanical Specifications
| Vibration Survival | ?4 hours at resonant frequency |
|---|
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
|---|---|
| Corrosion Resistance, minimum with no degredation | ?1000 hours in salt spray chamber |
| Environmental Strength Capability | Double cable weight |
| Flammability Test Method | UL 2043 |
Packaging and Weights
| Height, packed | 30.5 cm / 12.008 in |
|---|---|
| Width, packed | 15 cm / 5.906 in |
| Length, packed | 25.4 cm / 10 in |
| Packaging quantity | 10 |
| Weight, gross | 0.53 kg / 1.168 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- 7722311 Universal Snapstak Hangers for Coaxial and Fiber Cables Installation Bulliten
- 7819892 SSH-710, SSH-1014 CommScope SnapTak Adjustable Cable Hanger
- Statement of Compliance RoHS/REACH
- SSH-XL Product specifications
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- CommScope Limited Product Warranty
