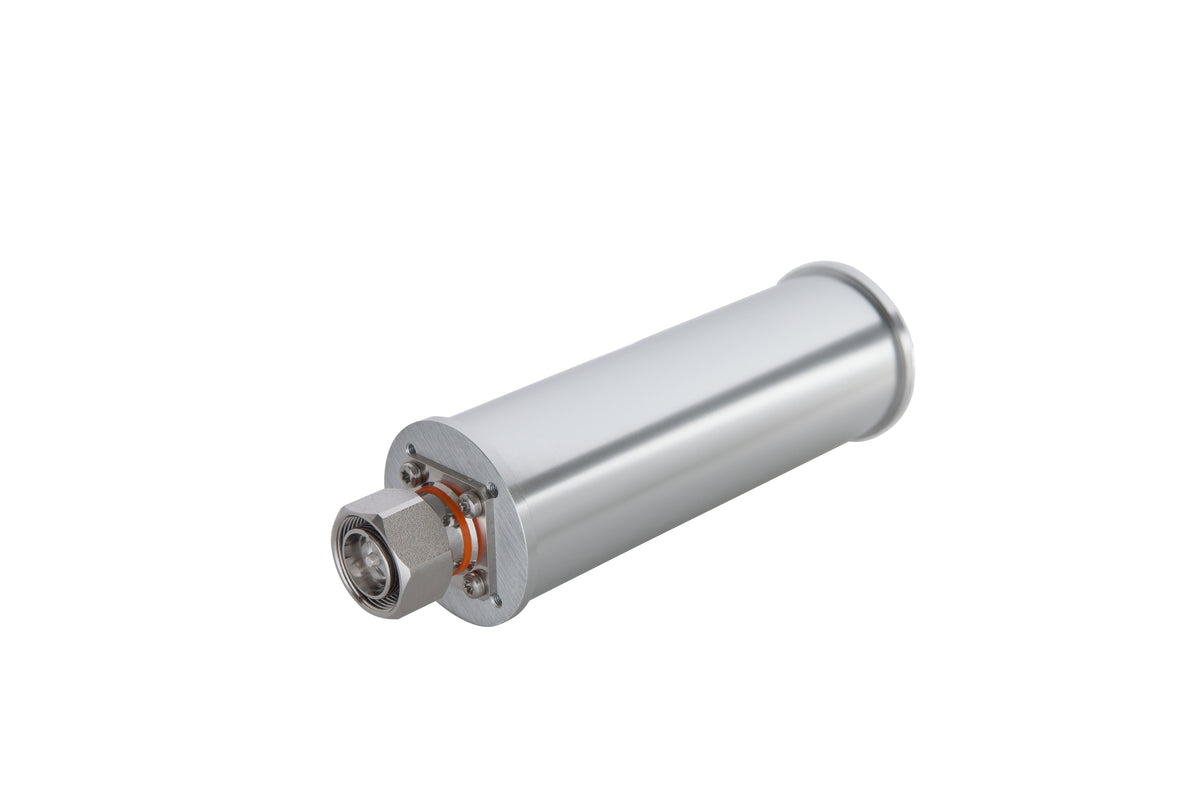

Commscope T-10-43-M-I6 | Low PIM Termination 10 W Load, 340-2700MHz
Regular price
$799.51
Unit price
Brand: CommScope
|
SKU:
881786
Regular price
$799.51
Unit price
Description
Description
Commscope T-10-43-M-I6 | Low PIM Termination 10 W Load, 340-2700MHz
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Product Type | Termination Load |
General Specifications
| Device Type | Termination Load |
|---|---|
| Application | Indoor |
| Color | Silver |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Male |
| Outer Contact Plating | Trimetal |
Dimensions
| Length | 145 mm / 5.709 in |
|---|---|
| Diameter, maximum | 44 mm / 1.732 in |
Electrical Specifications
| 3rd Order IMD | -162 dBc |
|---|---|
| 3rd Order IMD Test Method | Two +40 dBm carriers |
| Average Power, maximum | 10 W |
| Impedance | 50 ohm |
| Operating Frequency Band | 340 – 2700 MHz |
Environmental Specifications
| Operating Temperature | -25 °C to +50 °C (-13 °F to +122 °F) |
|---|---|
| Relative Humidity | Up to 100% |
Packaging and Weights
| Height, packed | 65 mm / 2.559 in |
|---|---|
| Width, packed | 85 mm / 3.346 in |
| Length, packed | 200 mm / 7.874 in |
| Weight, gross | 0.6 kg / 1.323 lb |
| Weight, net | 0.52 kg / 1.146 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
