Brand: CommScope
|
SKU:
10330091

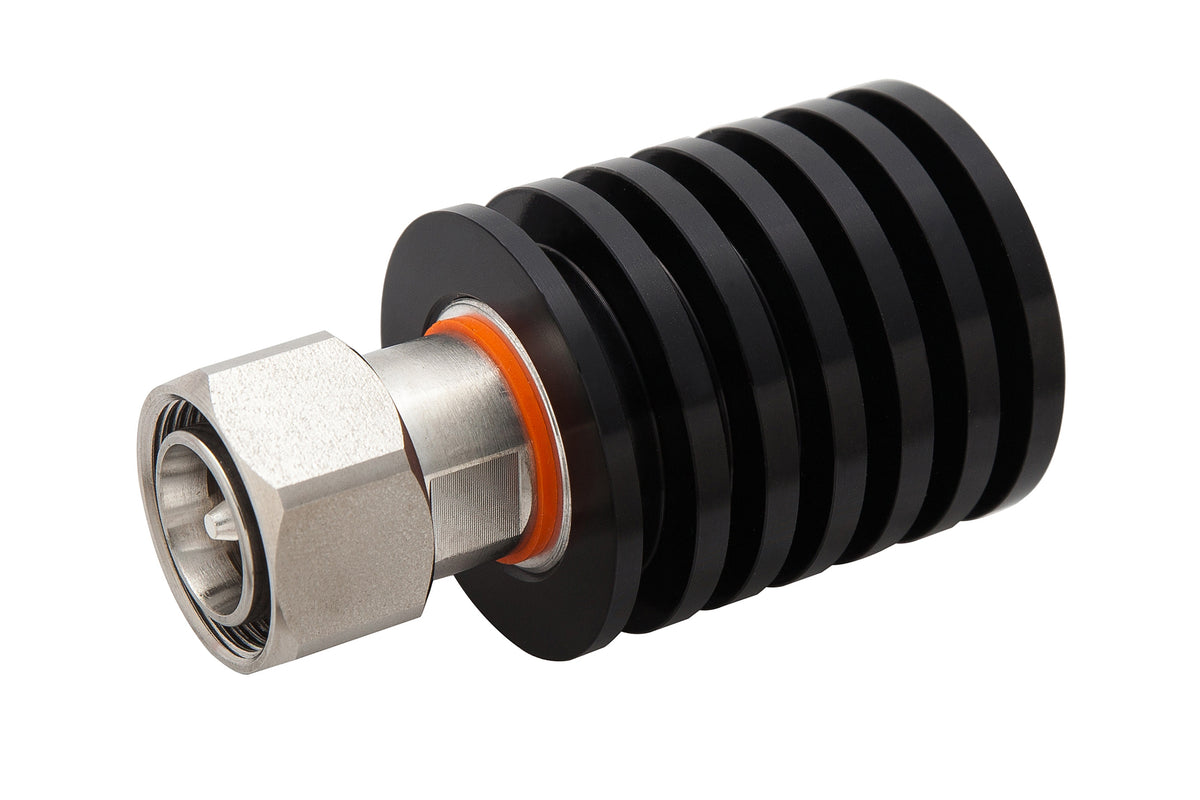

CommScope T-10-UW-43-M | Termination Load, 0–6000 MHz, Not for PIM-rated applications
Regular price
$94.91
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope T-10-UW-43-M | Termination Load, 0–6000 MHz, Not for PIM-...
Regular price
$94.91
Unit price
Description
Description
CommScope T-10-UW-43-M | Termination Load, 0–6000 MHz, Not for PIM-rated applications
Specifications
Specifications
CommScope - T-10-UW-43-M - Product Categories
- Splitters, Combiners & Multiplexers
- In-building Wireless Passive Devices
- Termination Loads
CommScope - T-10-UW-43-M - Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Product Type | Termination Load |
CommScope - T-10-UW-43-M - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | Termination Load, 0–6000 MHz, Not for PIM-rated applications |
| Model Number | T-10-UW-43-M |
| Device Type | Termination Load |
| Application | Indoor/Outdoor |
| Color | Black |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Male |
| Outer Contact Plating | Trimetal |
CommScope - T-10-UW-43-M - Additional Information
| Dimensions | - |
|---|---|
| Length | 53 mm | 2.087 in |
| Diameter, maximum | 35 mm | 1.378 in |
| Electrical Specifications | - |
| Average Power, maximum | 10 W |
| Impedance | 50 ohm |
| Operating Frequency Band | 0 – 6000 MHz |
| VSWR | 1.15 |
| Environmental Specifications | - |
| Operating Temperature | -35 °C to +50 °C (-31 °F to +122 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
| Packaging and Weights | - |
| Height, packed | 53 mm | 2.087 in |
| Width, packed | 58 mm | 2.283 in |
| Length, packed | 68 mm | 2.677 in |
| Weight, gross | 0.16 kg | 0.353 lb |
| Weight, net | 0.13 kg | 0.287 lb |
