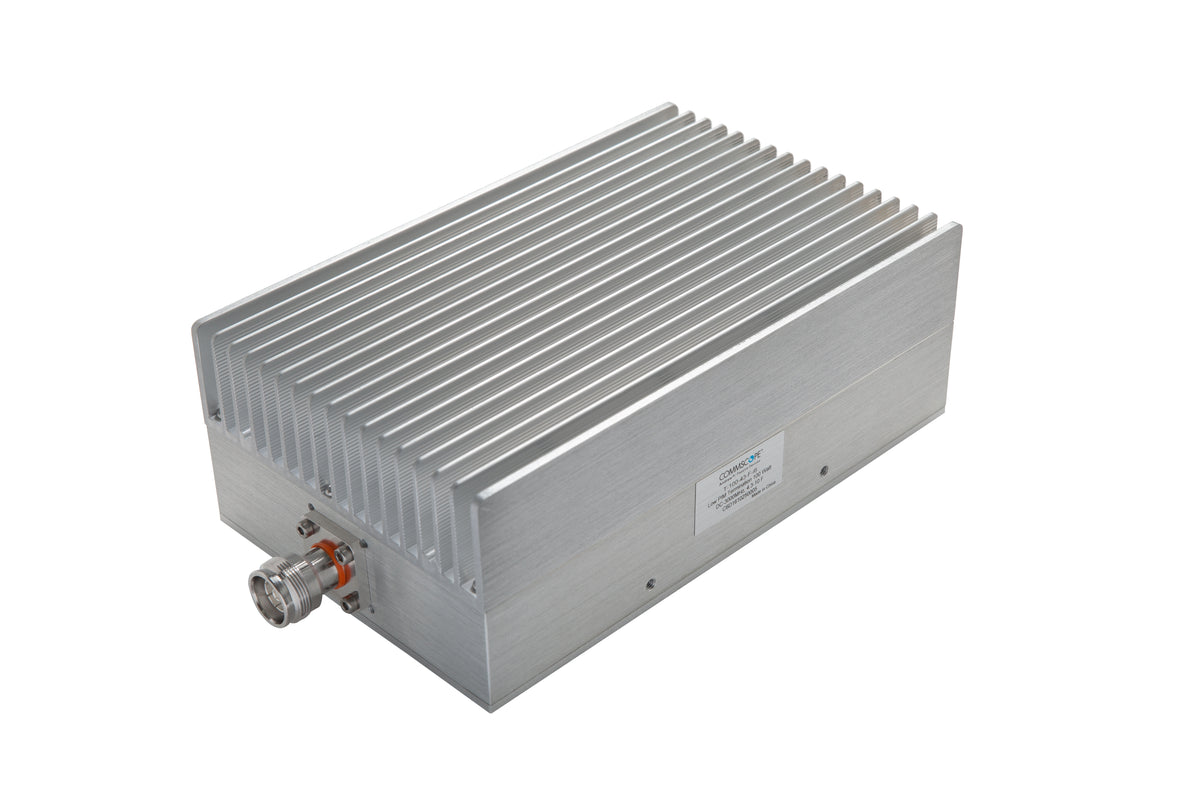

Commscope T-100-43-F-I6 | Low PIM Termination 100 W Load, DC-3 GHz
Regular price
$1,164.80
Unit price
Brand: CommScope
|
SKU:
881796
Regular price
$1,164.80
Unit price
Description
Description
Commscope T-100-43-F-I6 | Low PIM Termination 100 W Load, DC-3 GHz
Specifications
Specifications
Derating Curve
| Click on image to enlarge. |
|---|
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Product Type | Termination Load |
General Specifications
| Device Type | Termination Load |
|---|---|
| Application | Indoor/Outdoor |
| Color | Silver |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 75 mm / 2.953 in |
|---|---|
| Width | 130 mm / 5.118 in |
| Length | 237 mm / 9.331 in |
Electrical Specifications
| 3rd Order IMD | -162 dBc |
|---|---|
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Return Loss, minimum | 19 dB |
| Average Power, maximum | 100 W |
| Impedance | 50 ohm |
| Operating Frequency Band | 0 – 3000 MHz |
| VSWR | 1.25 |
Environmental Specifications
| Operating Temperature | -25 °C to +50 °C (-13 °F to +122 °F) |
|---|---|
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
Packaging and Weights
| Height, packed | 107 mm / 4.213 in |
|---|---|
| Width, packed | 137 mm / 5.394 in |
| Length, packed | 272 mm / 10.709 in |
| Weight, gross | 2.75 kg / 6.063 lb |
| Weight, net | 2.56 kg / 5.644 lb |
Regulatory Compliance/Certifications
| ROHS | Compliant |
|---|---|
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
