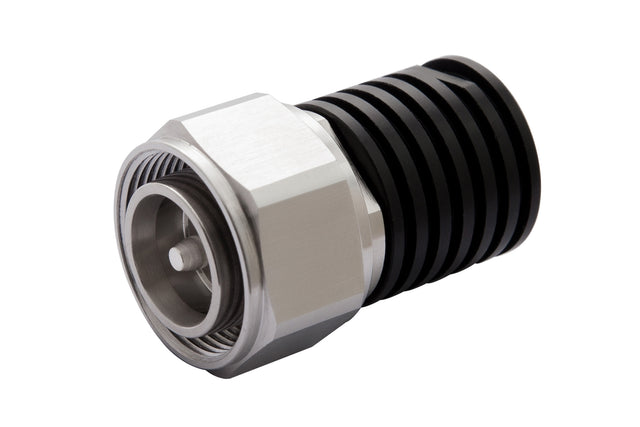

CommScope T-2-UW-43-M | Termination Load, 0–6000 MHz
Regular price
$53.05
Unit price
Brand: CommScope
|
SKU:
10115118
Regular price
$53.05
Unit price
Description
Description
CommScope T-2-UW-43-M | Termination Load, 0–6000 MHz
Specifications
Specifications
CommScope - T-2-UW-43-M - Product Categories
- Splitters, Combiners & Multiplexers
- In-building Wireless Passive Devices
- Termination Loads
CommScope - T-2-UW-43-M - Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Product Type | Termination Load |
CommScope - T-2-UW-43-M - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | Termination Load, 0–6000 MHz |
| Model Number | T-2-UW-43-M |
| Device Type | Termination Load |
| Application | Indoor/Outdoor |
| Color | Black |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Male |
| Outer Contact Plating | Trimetal |
CommScope - T-2-UW-43-M - Additional Information
| Dimensions | - |
|---|---|
| Length | 38 mm | 1.496 in |
| Diameter, maximum | 20 mm | 0.787 in |
| Electrical Specifications | - |
| Average Power at Temperature | 1.7 W @ 60 °C |
| Average Power, maximum | 2 W |
| Impedance | 50 ohm |
| Operating Frequency Band | 0 – 6000 MHz |
| VSWR | 1.15 |
| Environmental Specifications | - |
| Operating Temperature | -35 °C to +50 °C (-31 °F to +122 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
| Packaging and Weights | - |
| Height, packed | 68 mm | 2.677 in |
| Width, packed | 53 mm | 2.087 in |
| Length, packed | 58 mm | 2.283 in |
| Weight, gross | 0.08 kg | 0.176 lb |
| Weight, net | 0.06 kg | 0.132 lb |
