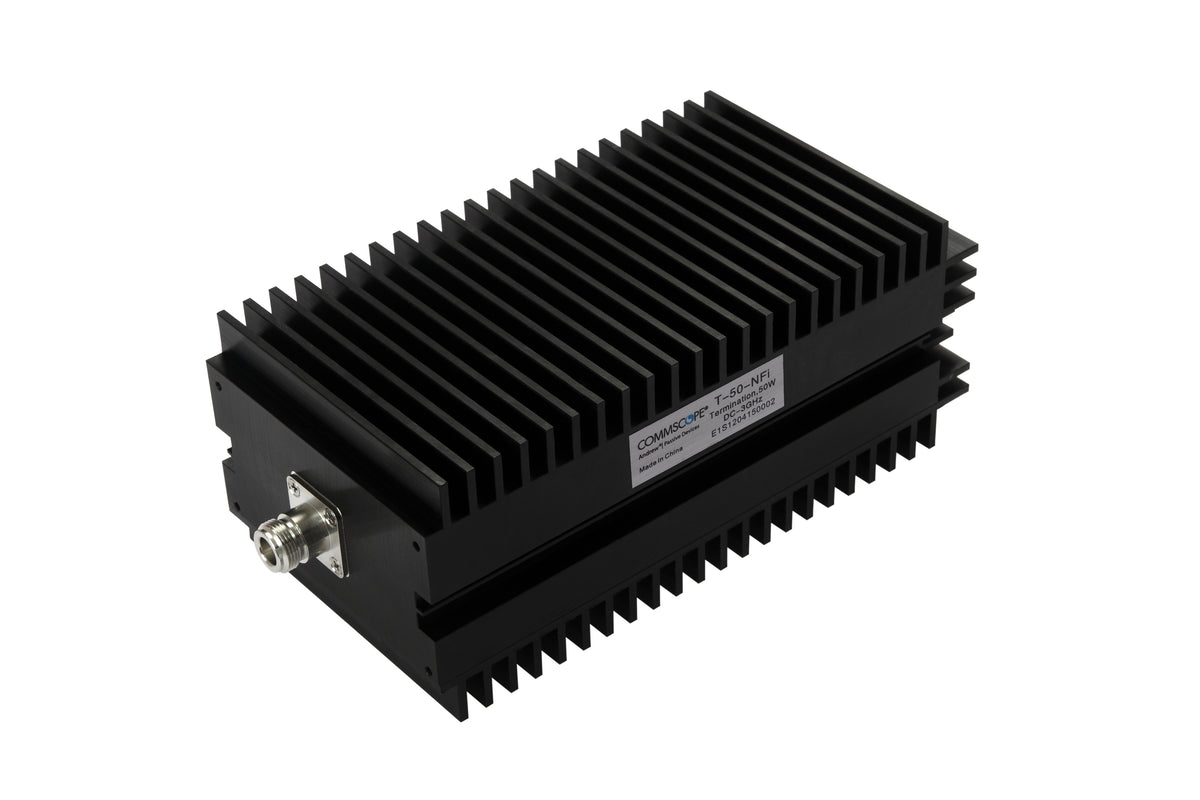

Commscope T-50-NFI | Termination Load, 0–3000 MHz
Regular price
$1,330.21
Unit price
Brand: CommScope
|
SKU:
470729
Regular price
$1,330.21
Unit price
Description
Description
Commscope T-50-NFI | Termination Load, 0–3000 MHz
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Product Type | Termination Load |
General Specifications
| Device Type | Termination Load |
|---|---|
| Application | Indoor/Outdoor |
| Color | Black |
| Inner Contact Plating | Silver |
| Interface | N Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 87 mm / 3.425 in |
|---|---|
| Width | 110 mm / 4.331 in |
| Length | 233 mm / 9.173 in |
Electrical Specifications
| 3rd Order IMD | -150 dBc |
|---|---|
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Return Loss, minimum | 19 dB |
| Average Power, maximum | 50 W |
| Impedance | 50 ohm |
| Operating Frequency Band | 0 – 3000 MHz |
| VSWR | 1.25 |
Environmental Specifications
| Operating Temperature | -35 °C to +50 °C (-31 °F to +122 °F) |
|---|---|
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
Packaging and Weights
| Height, packed | 125 mm / 4.921 in |
|---|---|
| Width, packed | 185 mm / 7.283 in |
| Length, packed | 330 mm / 12.992 in |
| Volume | 763000 mm³ / 46.561 in³ |
| Weight, gross | 3.71 kg / 8.179 lb |
| Weight, net | 2.78 kg / 6.129 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
