Brand: CommScope
|
SKU:
470764

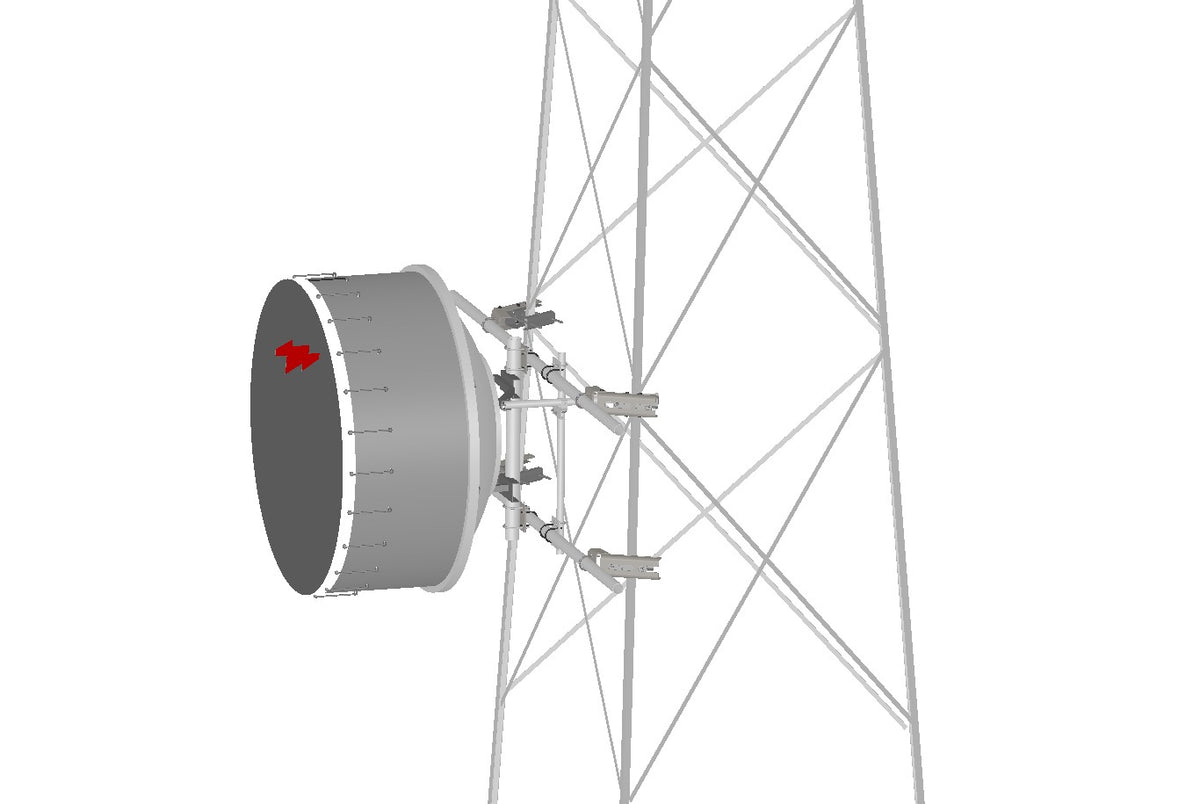

Commscope TF-M2-20 | Tower Face Mount with dual 20 ft x 2-3/8 in OD face supports, includes pipe
Regular price
$2,516.72
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope TF-M2-20 | Tower Face Mount with dual 20 ft x 2-3/8 in OD...
Regular price
$2,516.72
Unit price
Brand: CommScope
|
SKU:
470764
Regular price
$2,516.72
Unit price
Description
Description
Commscope TF-M2-20 | Tower Face Mount with dual 20 ft x 2-3/8 in OD face supports, includes pipe
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Tower face mount |
|---|
General Specifications
| Mounting | Angle 60°, 203.2 mm (8 in) / Angle 90°, 152.4 mm (6 in) / Straight or tapered legs up to 203.2 mm (8 in) OD |
|---|---|
| Note | Effective Projected Area (EPA) calculated using horizontal booms, vertical pipe mount, and mounting brackets. |
| Pipe, quantity | 1 |
| Tower Taper | Non-tapered / Tapered |
Dimensions
| Height | 1600.2 mm / 63 in |
|---|---|
| Face Width | 6.096 m / 20 ft |
| Width | 6096 mm / 240 in |
| Length | 304.8 mm / 12 in |
| Pipe Length | 1600.2 mm / 63 in |
| Face Support Pipe Diameter | 114.3 mm / 4.5 in |
| Pipe Outer Diameter | 114.3 mm / 4.5 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
|---|
Environmental Specifications
| EPA with 1/2 in (12 mm) radial ice | 1.589 m² / 17.1 ft² |
|---|---|
| EPA without ice | 1.143 m² / 12.3 ft² |
| Man Rating | 250 lb vertical man load at 15 mph (BWS) |
Packaging and Weights
| Included | Crossover plates / Pipes / Saddle mounts |
|---|---|
| Packaging quantity | 1 |
| Weight, net | 258.548 kg / 570 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
