Brand: CommScope | SKU: 10112155

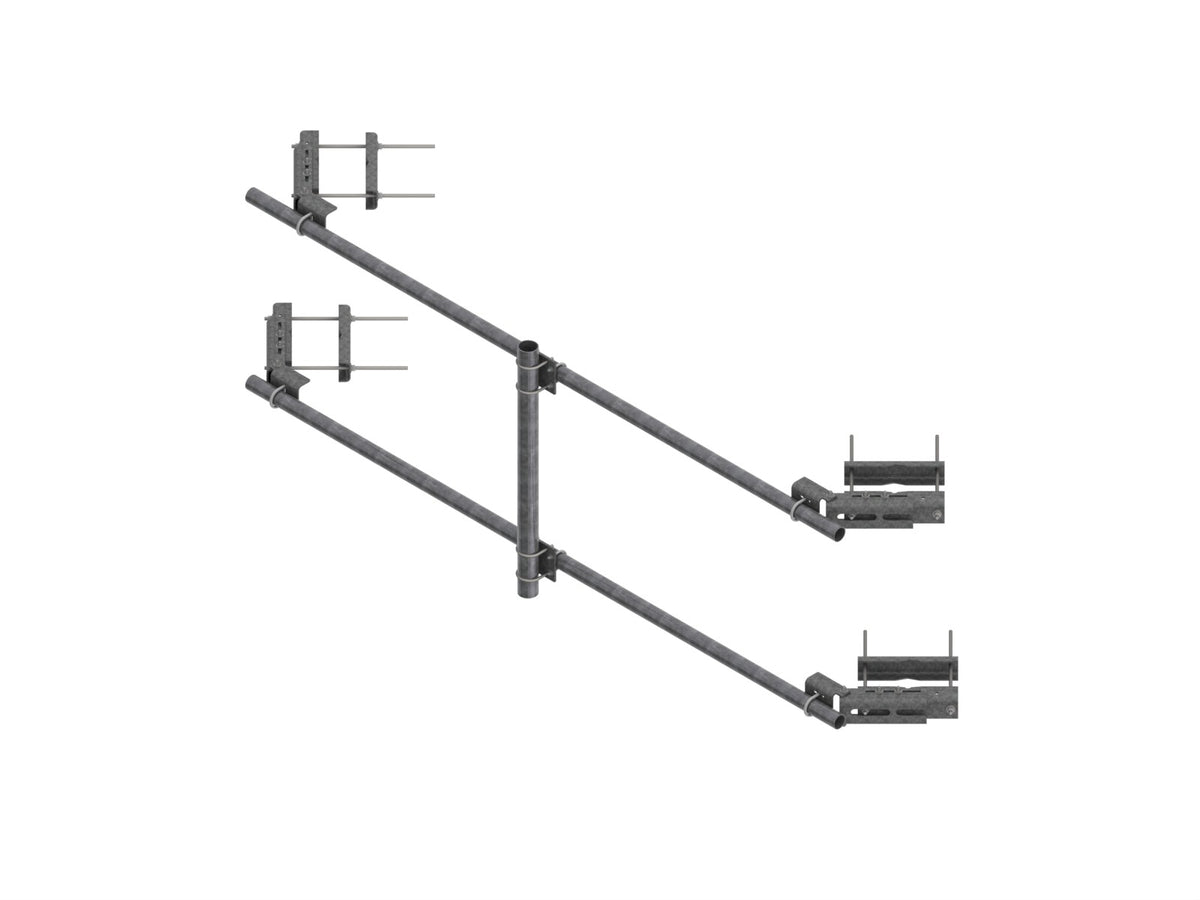

Commscope TFL-M3-14 | Tower Face Mount with dual 14 ft x 3-1/2 in OD face pipe supports, includes pipe

$3,036.67

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Commscope TFL-M3-14 | Tower Face Mount with dual 14 ft x 3-1/2 in OD face pipe supports, includes pipe

Specifications

Product Classification

Product Type	Tower face mount

General Specifications

Mounting	Angle 60°, 406.4 mm (16 in) / Angle 90°, 304.8 mm (12 in) / Straight or tapered legs up to 406.4 mm (16 in) OD
Pipe, quantity	1
Tower Taper	Non-tapered / Tapered

Dimensions

Height	1600.2 mm / 63 in
Face Width	4.267 m / 14 ft
Width	4267.2 mm / 168 in
Length	304.8 mm / 12 in
Pipe Length	1600.2 mm / 63 in
Face Support Pipe Diameter	88.9 mm / 3.5 in
Mounting Diameter, maximum	406.4 mm / 16 in
Mounting Diameter, minimum	0 mm / 0 in
Pipe Outer Diameter	114.3 mm / 4.5 in

Material Specifications

Material Type	Hot dip galvanized steel

Mechanical Specifications

Wind Rating	120 mph (BWS) at 100 ft AGL
Wind Rating Test Method	TIA/EIA-222

Packaging and Weights

Included	Crossover plates / Pipes / Saddle mounts
Packaging quantity	1
Weight, net	290.617 kg / 640.7 lb

Documents and Downloads
