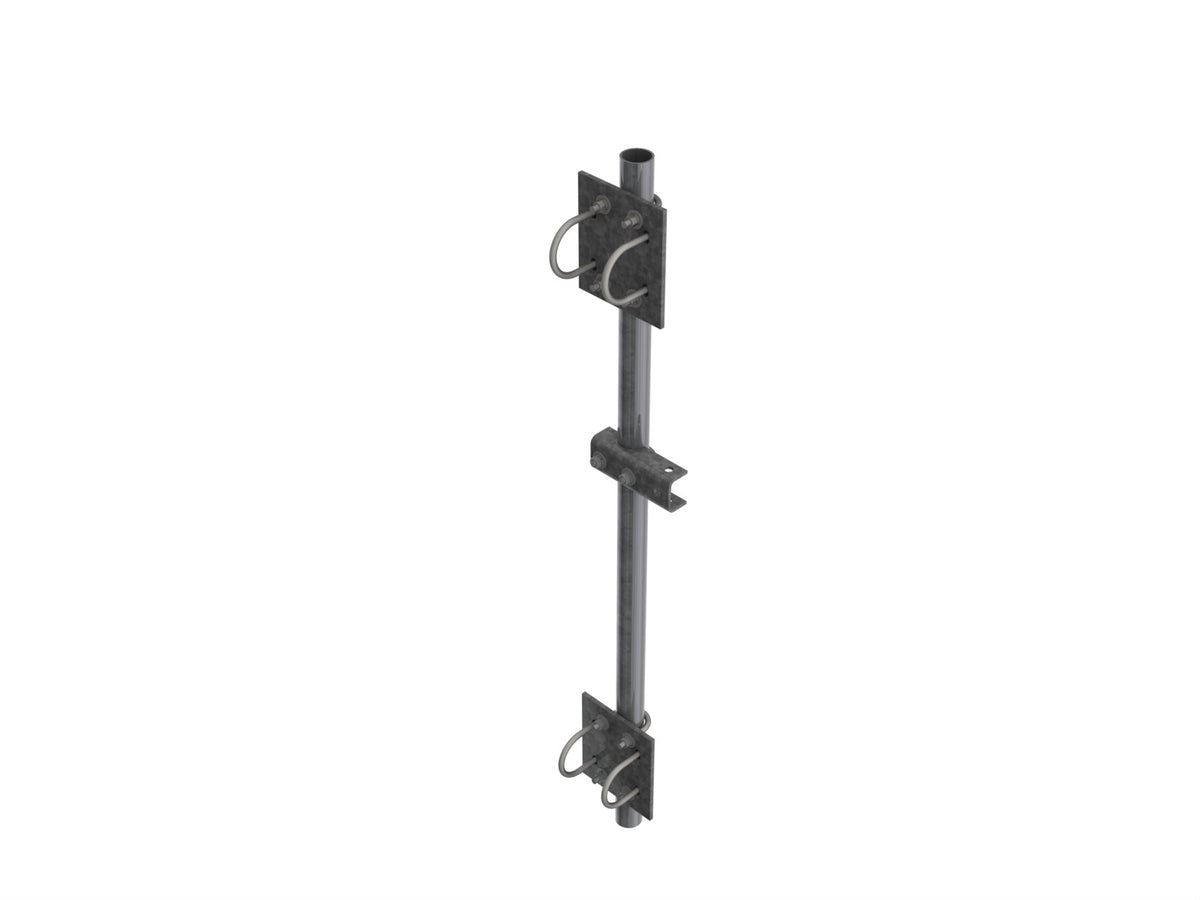

Commscope TFMSS3 | Tower Face Mount Stiff Arm Strut Support
Regular price
$271.89
Unit price
Brand: CommScope
|
SKU:
1018741
Regular price
$271.89
Unit price
Description
Description
Commscope TFMSS3 | Tower Face Mount Stiff Arm Strut Support
Specifications
Specifications
Product Classification
| Product Type | Tower face mount |
|---|
General Specifications
| Mounting | Pipe, 88.9 mm (3-1/2 in) OD |
|---|---|
| Pipe, quantity | 1 |
Dimensions
| Height | 1600.2 mm / 63 in |
|---|---|
| Width | 254 mm / 10 in |
| Pipe Length | 1600.2 mm / 63 in |
| Face Support Pipe Diameter | 88.9 mm / 3.5 in |
| Pipe Outer Diameter | 60.96 mm / 2.4 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
|---|
Mechanical Specifications
| Wind Rating Test Method | TIA/EIA-222 |
|---|
Packaging and Weights
| Included | Crossover plates / Pipes |
|---|---|
| Packaging quantity | 1 |
| Weight, net | 20.185 kg / 44.5 lb |
Regulatory Compliance/Certifications
| ROHS | Compliant |
|---|---|
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
