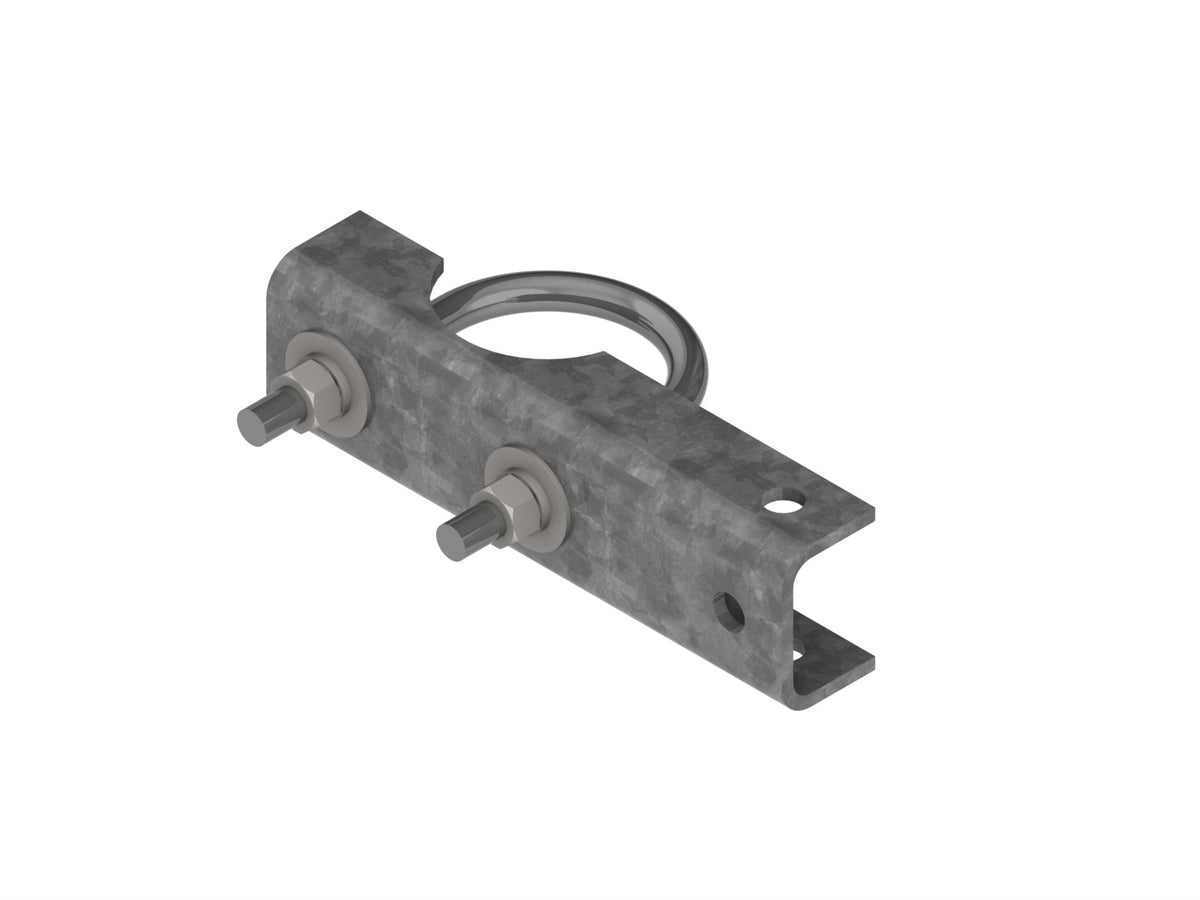

Commscope TFMSSBK | Stiff Arm Support Bracket for 3–1/2 in OD pipe
Regular price
$108.11
Unit price
Brand: CommScope
|
SKU:
1018742
Regular price
$108.11
Unit price
Description
Description
Commscope TFMSSBK | Stiff Arm Support Bracket for 3–1/2 in OD pipe
Specifications
Specifications
Product Classification
| Product Type | Microwave strut support |
|---|
General Specifications
| Mounting | Pipe, 88.9 mm (3-1/2 in) OD |
|---|---|
| Tower Taper | Non-tapered / Tapered |
Dimensions
| Height | 152.4 mm / 6 in |
|---|---|
| Width | 76.2 mm / 3 in |
| Length | 76.2 mm / 3 in |
| Mounting Diameter, maximum | 88.9 mm / 3.5 in |
| Mounting Diameter, minimum | 88.9 mm / 3.5 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
|---|
Packaging and Weights
| Included | Clamp / U-bolt |
|---|---|
| Packaging quantity | 1 |
| Weight, net | 2.8 kg / 6.173 lb |
Regulatory Compliance/Certifications
| ROHS | Compliant |
|---|---|
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
