Brand: CommScope
|
SKU:
499861

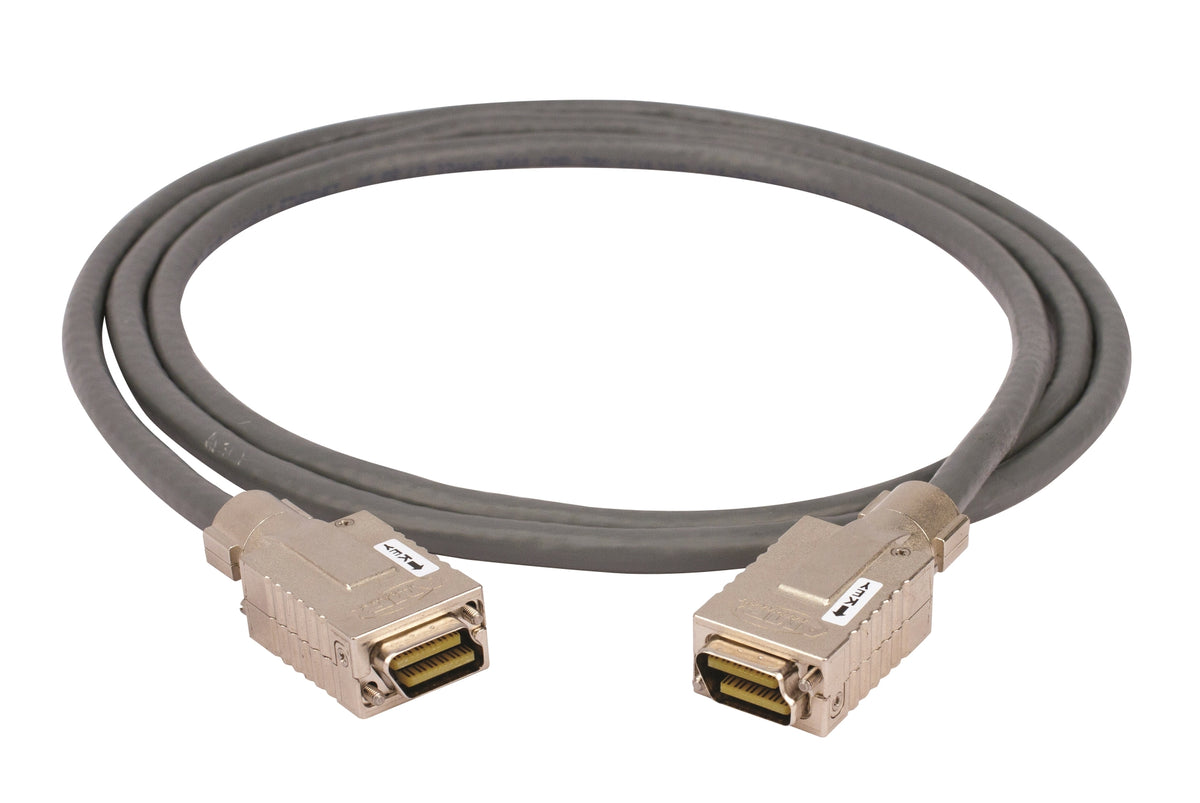

Commscope TMRJ1SURGSS003M | MRJ21 High Speed Cable Assembly, MRJ21 to MRJ21, 180°-180° 1GbE, 24-pair, CMR, 3 m, gray
Regular price
$393.24
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope TMRJ1SURGSS003M | MRJ21 High Speed Cable Assembly, MRJ21 ...
Regular price
$393.24
Unit price
Description
Description
Commscope TMRJ1SURGSS003M | MRJ21 High Speed Cable Assembly, MRJ21 to MRJ21, 180°-180° 1GbE, 24-pair, CMR, 3 m, gray
Features and Benefits
- Universal modular copper cabling platform for applications such as Gigabit Ethernet, VoIP and Power over Ethernet
- Increased I/O port density and cleaner cabling schemes compared to RJ45 connectors and cabling
- Robust die cast cable covers provide straight, or 45 deg left/right cable exit for ease of routing
Specifications
Specifications
Product Classification
| Regional Availability | Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Copper trunk cable assembly |
| Product Brand | MRJ21 |
| Product Series | MRJ21 |
General Specifications
| ANSI/TIA Category | 6 |
|---|---|
| Application | Ethernet, 1 GbE |
| Cable Type | F/UTP (shielded) |
| Conductor Type | Solid |
| Construction Type | Stranded |
| Interface, Connector A | MRJ21 plug |
| Interface Feature, connector A | Backshell, 180° |
| Interface, Connector B | MRJ21 plug |
| Interface Feature, connector B | Backshell, 180° |
| Jacket Color | Gray |
| Pairs, quantity | 24 |
| Total Ports, quantity | 6 |
Dimensions
| Cord Length | 3 m / 9.843 ft |
|---|---|
| Diameter Over Jacket | 13 mm / 0.512 in |
| Compatible Conductor Gauge, solid | 24 AWG |
Electrical Specifications
| Safety Voltage Rating | 150 V |
|---|
Material Specifications
| Conductor Material | Bare copper |
|---|
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
|---|---|
| Environmental Space | Riser |
| Flammability Rating | CM |
| Safety Standard | cUL |
Packaging and Weights
| Packaging quantity | 1 |
|---|
Regulatory Compliance/Certifications
| ROHS | Compliant |
|---|---|
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
