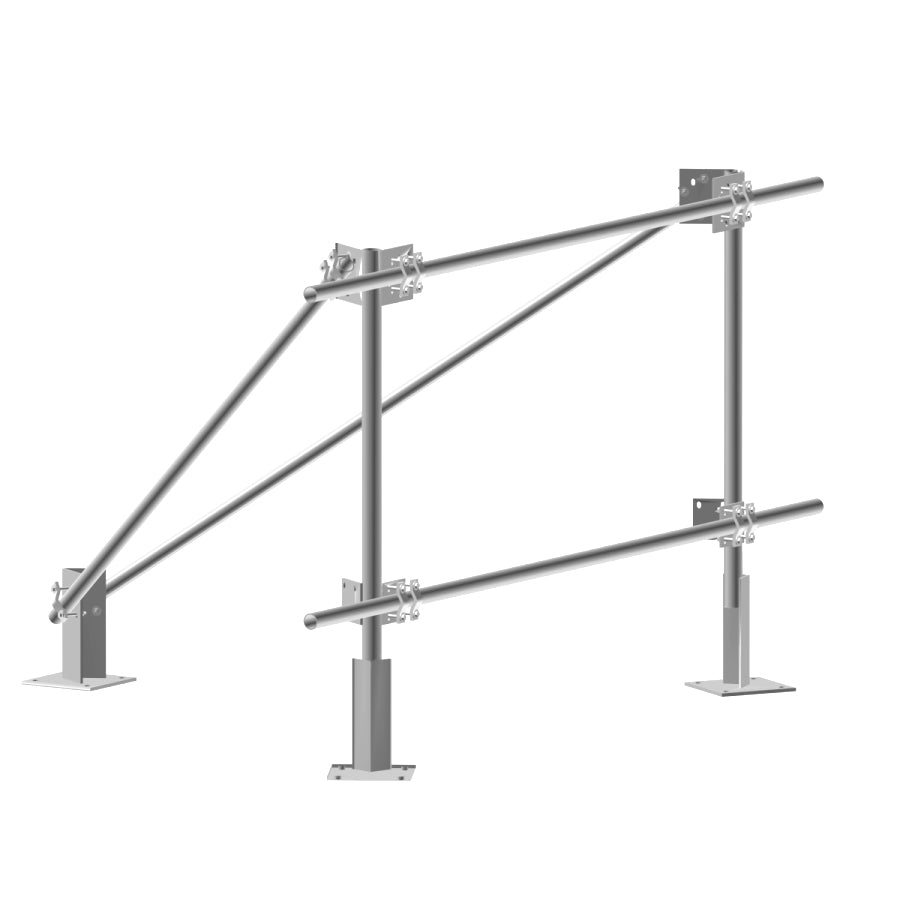

Commscope TP-100 | Rooftop Mount
Regular price
$2,153.76
Unit price
Brand: CommScope
|
SKU:
470780
Regular price
$2,153.76
Unit price
Description
Description
Commscope TP-100 | Rooftop Mount
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Rooftop mount |
|---|
General Specifications
| Mounting | Penetrating |
|---|
Dimensions
| Height | 1905 mm / 75 in |
|---|---|
| Face Width | 3.353 m / 11 ft |
| Width | 3352.8 mm / 132 in |
| Length | 2.896 m / 9.5 ft |
| Pipe Outer Diameter | 60.96 mm / 2.4 in / 73.66 mm / 2.9 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
|---|
Mechanical Specifications
| Wind Rating | For Specifications, please contact steelproducts |
|---|
Packaging and Weights
| Included | Mount |
|---|---|
| Packaging quantity | 1 |
| Weight, net | 173.7 kg / 382.942 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
