Brand: CommScope
|
SKU:
470784

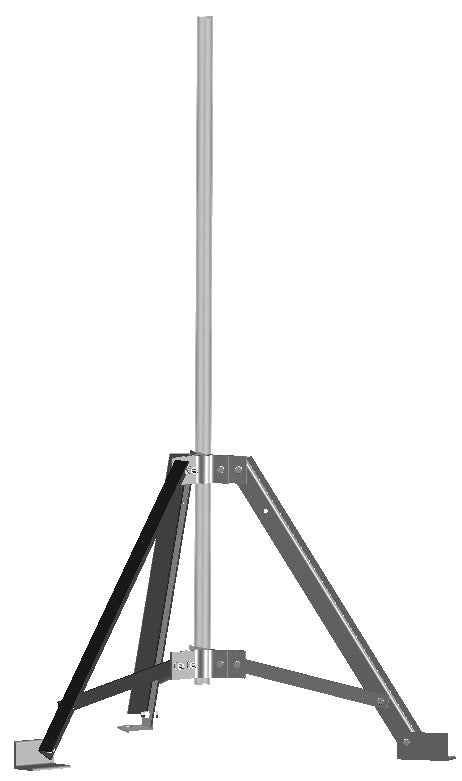

Commscope TP-G238-96 | Universal Tripod Mount, 2-3/8 in OD x 96 in pipe
Regular price
$688.54
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope TP-G238-96 | Universal Tripod Mount, 2-3/8 in OD x 96 in ...
Regular price
$688.54
Unit price
Description
Description
Commscope TP-G238-96 | Universal Tripod Mount, 2-3/8 in OD x 96 in pipe
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Tripod mount |
|---|
General Specifications
| Mounting | Surfaces |
|---|---|
| Note | One 6 ft microwave antenna using 4-1/2 in pipe mast |
| Pipe, quantity | 1 |
Dimensions
| Height | 2438.4 mm / 96 in |
|---|---|
| Width | 1524 mm / 60 in |
| Length | 1.524 m / 5 ft |
| Pipe Length | 2438.4 mm / 96 in |
| Pipe Outer Diameter | 60.96 mm / 2.4 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
|---|
Mechanical Specifications
| Wind Rating | 85 mph (BWS) at 100 ft AGL using Exposure C per UBC |
|---|---|
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and Weights
| Included | Mount, with or without pipe |
|---|---|
| Packaging quantity | 1 |
| Weight, net | 64.9 kg / 143.08 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
