Commscope TP-G412-B | Universal Tripod Mount, base only, pipe not i...
Regular price
$868.89
Unit price
Brand: CommScope
|
SKU:
470790
Regular price
$868.89
Unit price
Description
Description

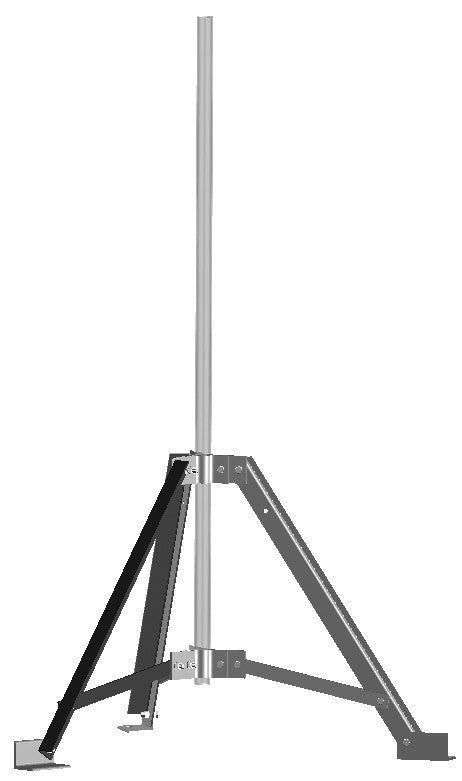

Commscope TP-G412-B | Universal Tripod Mount, base only, pipe not included
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Tripod mount |
|---|
General Specifications
| Mounting | Surfaces |
|---|---|
| Note | One 6 ft microwave antenna using 4-1/2 in pipe mast |
| Pipe, quantity | 0 |
Dimensions
| Height | 838.2 mm / 33 in |
|---|---|
| Width | 1524 mm / 60 in |
| Length | 1.524 m / 5 ft |
| Pipe Outer Diameter | 114.3 mm / 4.5 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
|---|
Mechanical Specifications
| Wind Rating | 85 mph (BWS) at 100 ft AGL using Exposure C per UBC |
|---|---|
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and Weights
| Included | Mount, with or without pipe |
|---|---|
| Packaging quantity | 1 |
| Weight, net | 78.7 kg / 173.504 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
