Brand: CommScope
|
SKU:
10300404

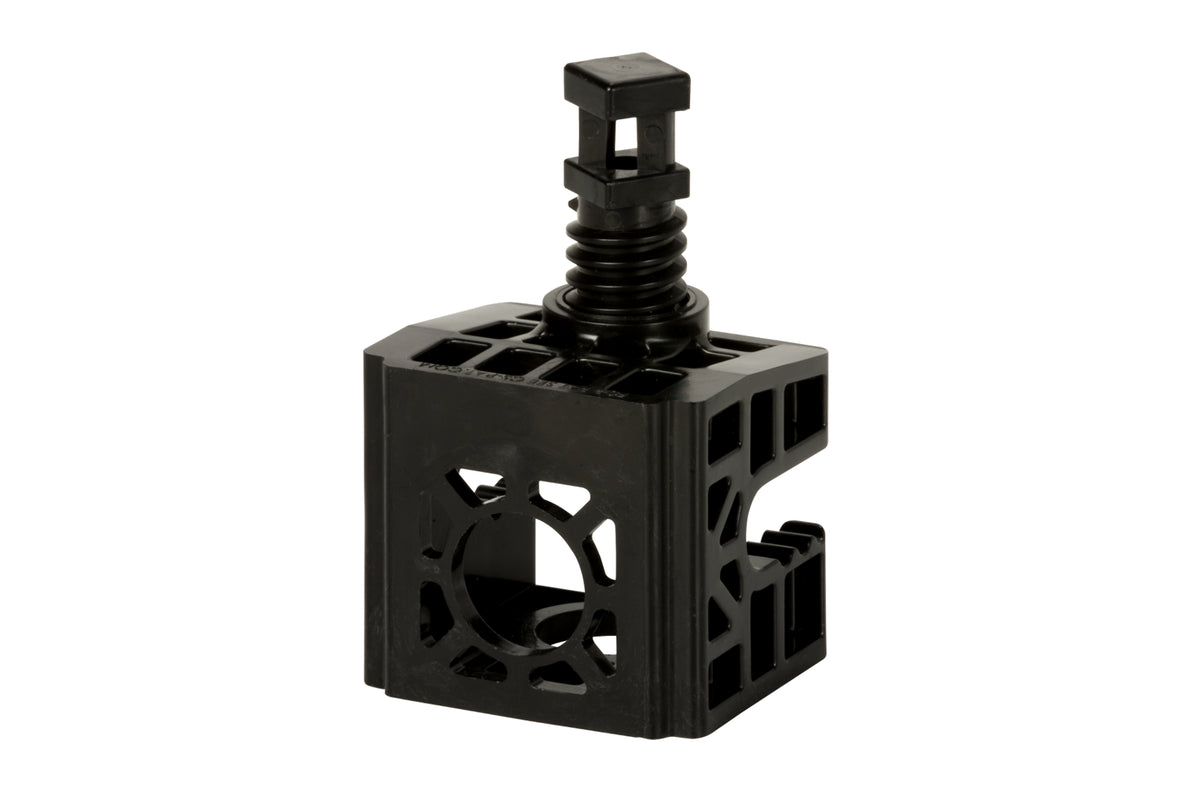

CommScope UA-3C | PIM free, Angle member attachment. Includes torque stop set bolt to ensure proper attachment force. Two 3/4" holes for Snap-in style hangers
Regular price
$68.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope UA-3C | PIM free, Angle member attachment. Includes torqu...
Regular price
$68.00
Unit price
Description
Description
CommScope UA-3C | PIM free, Angle member attachment. Includes torque stop set bolt to ensure proper attachment force. Two 3/4" holes for Snap-in style hangers
Specifications
Specifications
CommScope - UA-3C - Product Categories
- Structural Support, Tools & Accessories
- Coaxial Tools, Consumables & Accessories
- Attachment Adapters
CommScope - UA-3C - Product Classification
| Product Type | Adapter |
|---|---|
| Ordering Note | CommScopestandard product (Global) |
CommScope - UA-3C - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | PIM free, Angle member attachment. Includes torque stop set bolt to ensure proper attachment force. Two 3/4" holes for Snap-in style hangers |
| Model Number | UA-3C |
| Adapter Type | Angle adapter |
| Color | Black |
| Mounting | 3/4 in through hole | Angle member |
| Patent Number | For patents see: www.cs-pat.com |
CommScope - UA-3C - Additional Information
| Dimensions | - |
|---|---|
| Height | 44.958 mm | 1.77 in |
| Outside Width | 49.022 mm | 1.93 in |
| Inside Length | 25.4 mm | 1 in |
| Outside Length | 42.672 mm | 1.68 in |
| Compatible Diameter, maximum | 11.113 mm | 0.4375 in |
| Compatible Diameter, minimum | 3.175 mm | 0.125 in |
| Material Thickness | 3.175 mm | 0.125 in |
| Material Specifications | - |
| Material Type | Engineered plastic |
| Mechanical Specifications | - |
| Installation Torque, maximum | 5.423 N-m | 4 ft lb |
| Installation Torque, minimum | 4.067 N-m | 3 ft lb |
| Maximum Loading | Triple stack, 1/2 in cable |
| Environmental Specifications | - |
| Operating Temperature | -20 °C to +85 °C (-4 °F to +185 °F) |
| UV Resistance, minimum with no degradation | ?1000 hours |
