Commscope UC111G2-08F003 | Jacket Color - White | Cord Length - 3 Ft
Regular price
$24.60
Unit price
Brand: CommScope
|
SKU:
MM03-COMC6AS-01
Regular price
$24.60
Unit price
Description
Description

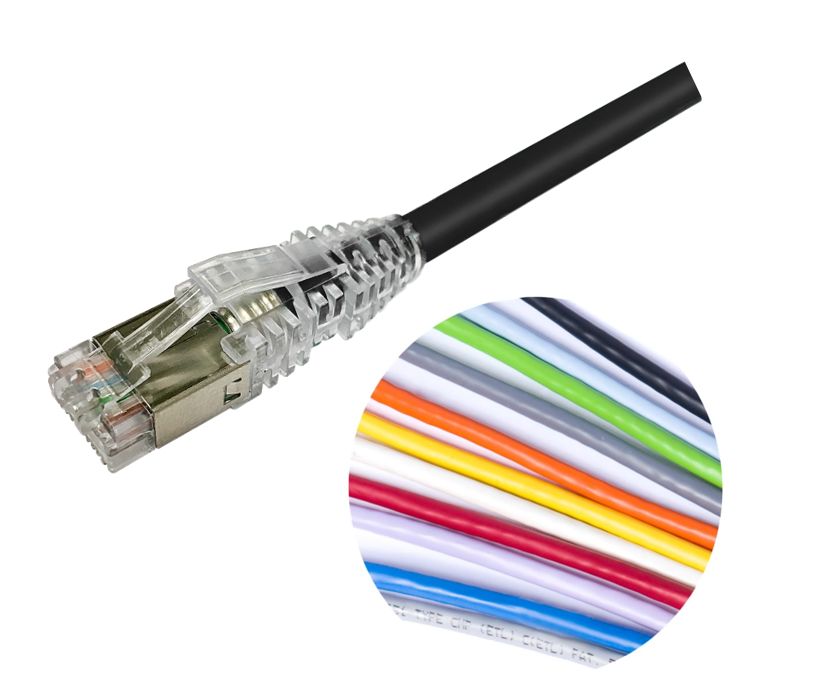

Commscope UC111G2-08F003 | Uniprise Ultra 10 Category 6A S/FTP Patch Cord, RJ45 to RJ45, 4-pair, Non-Plenum
Specifications
Specifications
Wiring Diagram
| Click on image to enlarge. |
|---|
Product Classification
| Regional Availability | North America |
|---|---|
| Portfolio | Uniprise |
| Product Type | Twisted pair patch cord |
| Product Brand | Ultra 10 |
| Product Series | UC |
| Ordering Note | Cords < 1 m are valid elements for use in a channel or as an equipment interconnect but due to their limited length are not guaranteed to meet component compliance requirements that were developed to assess the quality of longer cords / Cords 1 m are authorized for use in channels and are an effective standalone method used to connect active devices |
General Specifications
| ANSI/TIA Category | 6A |
|---|---|
| Cable Type | S/FTP (shielded) |
| Conductor Type | Stranded |
| Interface, Connector A | RJ45 plug |
| Interface Feature, connector A | Standard |
| Interface, Connector B | RJ45 plug |
| Interface Feature, connector B | Standard |
| Jacket Color | Black / Blue / Green / Orange / Purple / Red / Slate / Spring green / Violet / White / Yellow |
| Pairs, quantity | 4 |
| Transmission Standards | IEEE 802.3bt Type 4 |
| Wiring | T568B |
Dimensions
| Cable Assembly Length Range (m) | 1 – 30 |
|---|---|
| Cable Assembly Length Range (ft) | 1 – 100 |
| Diameter Over Jacket | 5.7 mm / 0.224 in |
Electrical Specifications
| dc Resistance, maximum | 0.3 ohm |
|---|---|
| Safety Voltage Rating | 300 V |
Material Specifications
| Contact Plating Material | Precious metals |
|---|---|
| Material Type | Copper alloy / Polycarbonate |
Mechanical Specifications
| Plug Insertion Life, minimum | 750 times |
|---|---|
| Plug Retention Force, minimum | 133 N / 29.9 lbf |
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
|---|---|
| Environmental Space | Non-plenum |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | ETL / cETL |
Packaging and Weights
| Packaging quantity | 1 |
|---|
