Brand: CommScope
|
SKU:
10121912
Commscope UGGMXMXAF-JBF044 | 33 inch breakout (end A/end B), with gland, no pulling grip [standard option] | Jacket Color - Yellow, Cord Length - 44 Ft
Regular price
$944.65
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope UGGMXMXAF-JBF044 | 33 inch breakout (end A/end B), with g...
Regular price
$944.65
Unit price
Description
Description

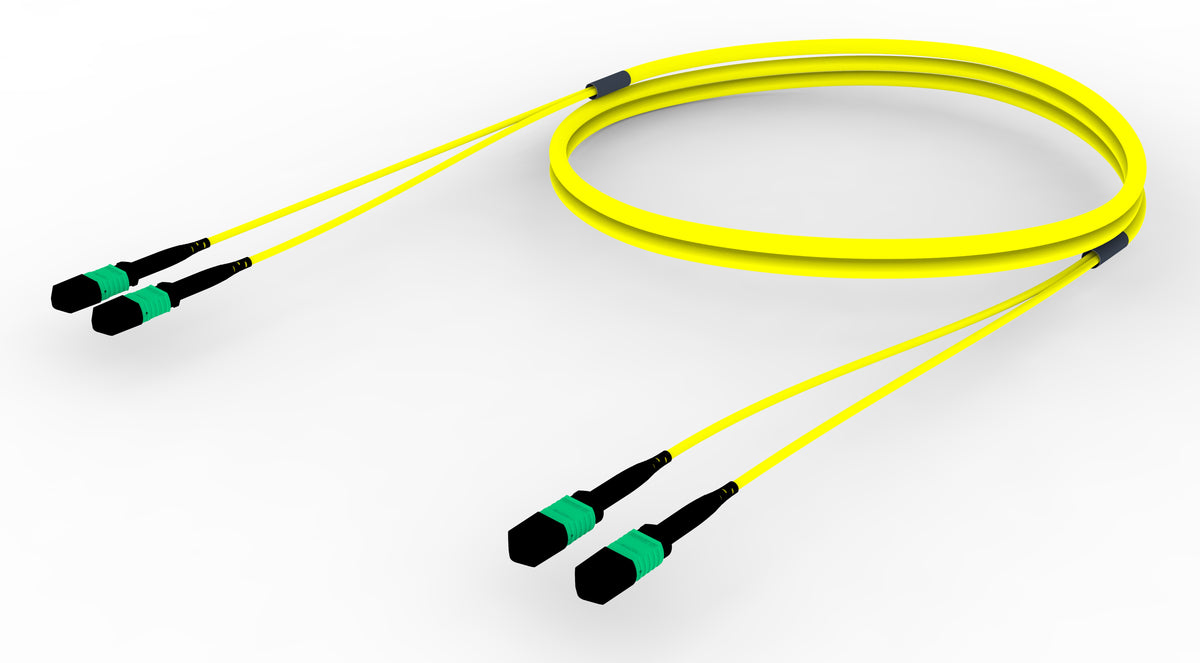

Commscope UGGMXMXAF-JBF044 | Ultra Low Loss (ULL) Singlemode MPO12 (male) to MPO12 (male), Fiber Trunk Cable Assembly, 24-Fiber, Plenum | 33 inch breakout (end A/end B), with gland, no pulling grip [standard option] | Jacket Color - Yellow, Cord Length - 44 Ft
Specifications
Specifications
Ordering Tree
| Click on image to enlarge. |
|---|
Product Classification
| Regional Availability | Asia / Australia/New Zealand / Europe / Latin America / Middle East/Africa / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber trunk cable assembly |
| Product Brand | SYSTIMAX ULL / SYSTIMAX ULL |
General Specifications
| Color, boot A | Black |
|---|---|
| Color, boot B | Black |
| Color, connector A | Green |
| Color, connector B | Green |
| Construction Type | Stranded |
| Fibers per Subunit, quantity | 12 |
| Furcation Color | Yellow |
| Interface, Connector A | MPO-12/APC |
| Interface, Connector B | MPO-12/APC |
| Jacket Color | Yellow |
| Polarity | Method B Enhanced |
| Total Fibers, quantity | 24 |
Dimensions
| Breakout Length | 33 in |
|---|---|
| Cable Assembly Length Range (m) | 3 – 305 |
| Cable Assembly Length Range (ft) | 10 – 999 |
Mechanical Specifications
| Cable Retention Strength, maximum | 11.24 lb @ 0 ° / 4.40 lb @ 90 ° |
|---|
Optical Specifications
| Fiber Mode | Singlemode |
|---|---|
| Fiber Type | G.657.A2, TeraSPEED |
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
|---|---|
| Environmental Space | Plenum |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
