![Commscope UGX2X2XBF-MBF055 | 33 inch breakout (end A/end B), with gland, no pulling grip [standard option] | Jacket Color - Aqua, Cord Length - 55 Ft](http://www.alldataresource.com/cdn/shop/files/334955-a-x2-2-bf.jpg?v=1786531449&width=1500)
Loading...
Brand: CommScope
|
SKU:
10039234
Commscope UGX2X2XBF-MBF055 | 33 inch breakout (end A/end B), with gland, no pulling grip [standard option] | Jacket Color - Aqua, Cord Length - 55 Ft
Regular price
$1,072.17
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope UGX2X2XBF-MBF055 | 33 inch breakout (end A/end B), with g...
Regular price
$1,072.17
Unit price
Brand: CommScope
|
SKU:
10039234
Regular price
$1,072.17
Unit price
Shipping calculated at checkout.
Description
Description

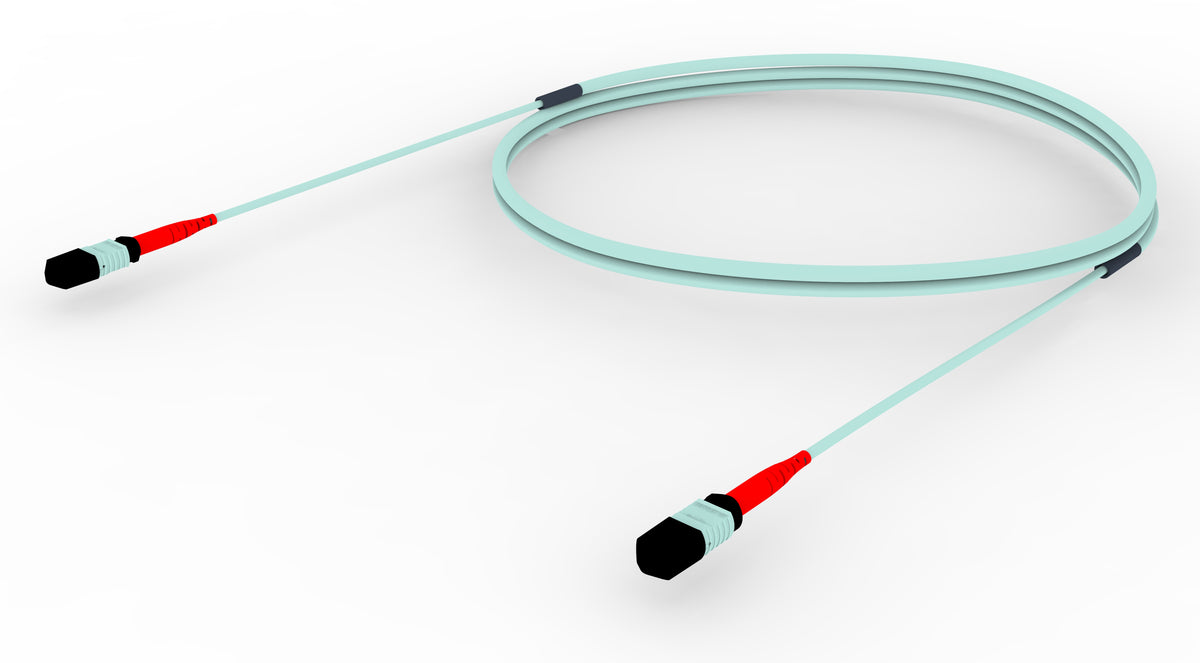

Commscope UGX2X2XBF-MBF055 | Ultra Low Loss (ULL) OM4 MPO24 (male) to MPO24 (male), Fiber Trunk Cable Assembly, 24-Fiber, Plenum | 33 inch breakout (end A/end B), with gland, no pulling grip [standard option] | Jacket Color - Aqua, Cord Length - 55 Ft
Specifications
Specifications
Ordering Tree
| Click on image to enlarge. |
|---|
Product Classification
| Regional Availability | Asia / Australia/New Zealand / Europe / Latin America / Middle East/Africa / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber trunk cable assembly |
| Product Brand | SYSTIMAX ULL / SYSTIMAX ULL |
| Ordering Note | For lengths greater than 999 ft (304 m), orders must be in meters / Minimum length may vary based on cable configuration |
General Specifications
| Color, boot A | Red |
|---|---|
| Color, boot B | Red |
| Color, connector A | Aqua |
| Color, connector B | Aqua |
| Construction Type | Stranded |
| Fibers per Subunit, quantity | 24 |
| Furcation Color | Aqua |
| Interface, Connector A | MPO-24/UPC |
| Interface, Connector B | MPO-24/UPC |
| Jacket Color | Aqua |
| Polarity | Method B Enhanced |
| Total Fibers, quantity | 24 |
Dimensions
| Breakout Length | 33 in |
|---|---|
| Cable Assembly Length Range (m) | 3 – 305 |
| Cable Assembly Length Range (ft) | 10 – 999 |
Mechanical Specifications
| Cable Retention Strength, maximum | 11.24 lb @ 0 ° / 4.40 lb @ 90 ° |
|---|
Optical Specifications
| Fiber Mode | Multimode |
|---|---|
| Fiber Type | OM4, LazrSPEED |
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
|---|---|
| Environmental Space | Plenum |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
