Brand: CommScope
|
SKU:
9816435

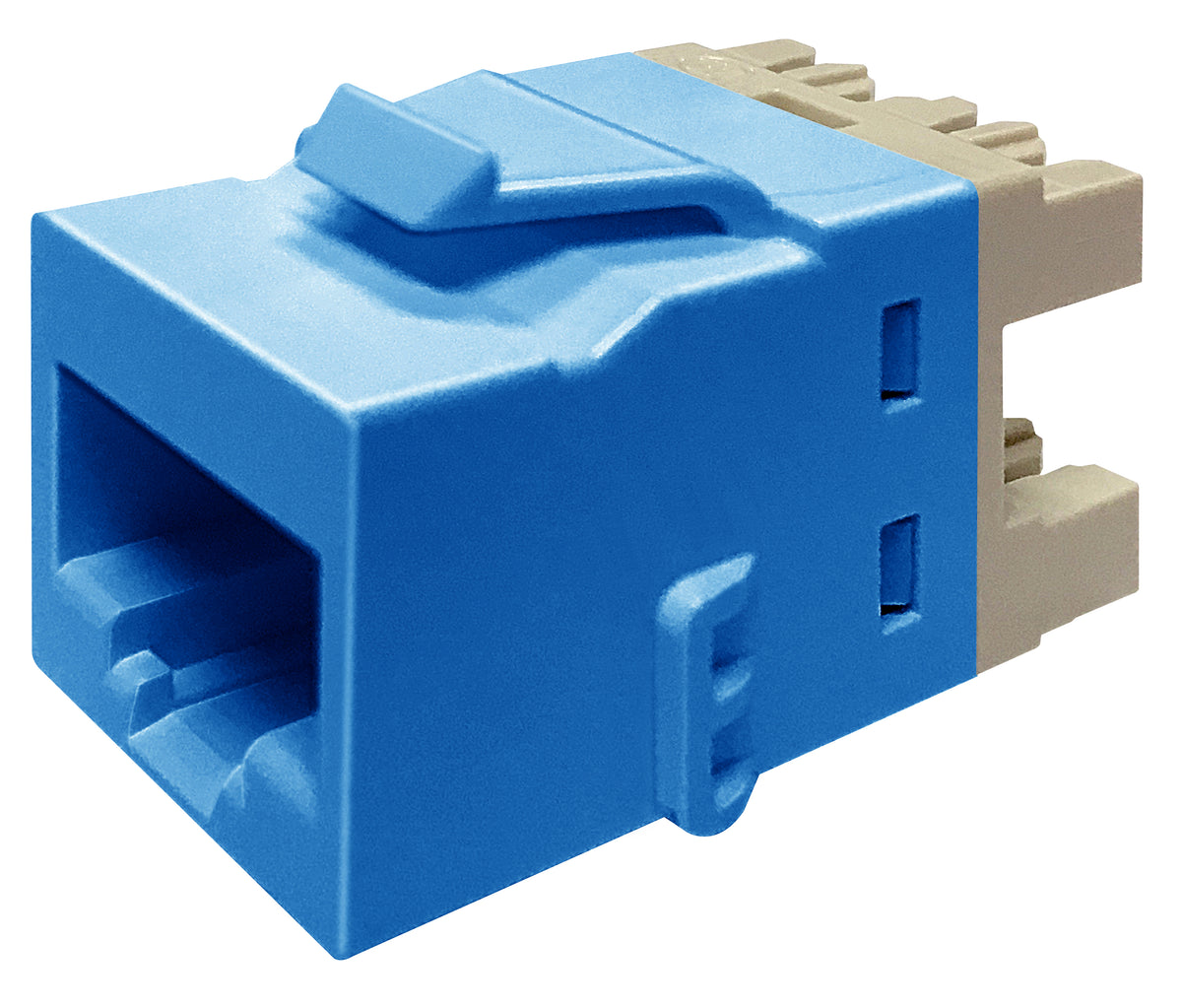

Commscope UKJ10G-BLU | Uniprise UKJ Keystone Series Modular Jack, RJ45, category 6A, T568A/T568B, unshielded, no dust cover, blue
Regular price
$17.66
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope UKJ10G-BLU | Uniprise UKJ Keystone Series Modular Jack, R...
Regular price
$17.66
Unit price
Description
Description
Commscope UKJ10G-BLU | Uniprise UKJ Keystone Series Modular Jack, RJ45, category 6A, T568A/T568B, unshielded, no dust cover, blue
Features and Benefits
- Color is more prominently visible across the body of the jack
- Allows for all jack variants to be terminated with the SL termination tool
- Lacing fixture of the SL termination tool is used to establish the cable termination
Specifications
Specifications
Product Classification
| Regional Availability | North America |
|---|---|
| Portfolio | Uniprise |
| Product Type | Modular jack |
| Product Series | UKJ Series |
General Specifications
| ANSI/TIA Category | 6A |
|---|---|
| Cable Type | Unshielded |
| Color | Blue |
| Conductor Type | Solid / Stranded |
| Integrated Dust Cover Type | None |
| Mounting | Keystone faceplates and panels |
| Outlet Type | Standard |
| Termination Tool | SL Termination tool |
| Termination Type | IDC |
| Transmission Standards | ANSI/TIA-568.2-D / ISO/IEC 11801 Class EA |
| Wiring | T568A / T568B |
Dimensions
| Panel Cutout, recommended | 14.78 x 19.30 mm (0.58 x 0.76 in) |
|---|---|
| Panel Thickness, recommended | 1.6 mm / 0.063 in |
| Height | 16.13 mm / 0.635 in |
| Width | 16.48 mm / 0.649 in |
| Depth | 30.48 mm / 1.2 in |
| Compatible Cable Diameter, maximum | 7.24 mm / 0.285 in |
| Compatible Insulated Conductor Diameter, maximum | 1.45 mm / 0.057 in |
| Contact Plating Thickness | 1.27 µm |
| Compatible Conductor Gauge, solid | 22 AWG / 24 AWG |
| Compatible Conductor Gauge, stranded | 24 AWG / 26 AWG |
Electrical Specifications
| Remote Powering | Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002 |
|---|
Material Specifications
| Contact Base Material | Beryllium copper |
|---|---|
| Contact Plating Material | Gold |
| Material Type | Copper alloy / High-impact, flame retardant, thermoplastic / Polycarbonate |
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
|---|---|
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Flammability Rating | UL 94 V-0 |
Packaging and Weights
| Packaging quantity | 1 |
|---|---|
| Packaging Type | Bag |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
