Brand: CommScope
|
SKU:
9782560
Commscope ULGMXLCAFJFF100 | 24 inch breakout (end A/end B), with gland, no pulling grip | Jacket Color - Yellow, Cord Length - 100 Ft
Regular price
$1,202.17
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope ULGMXLCAFJFF100 | 24 inch breakout (end A/end B), with gl...
Regular price
$1,202.17
Unit price
Description
Description

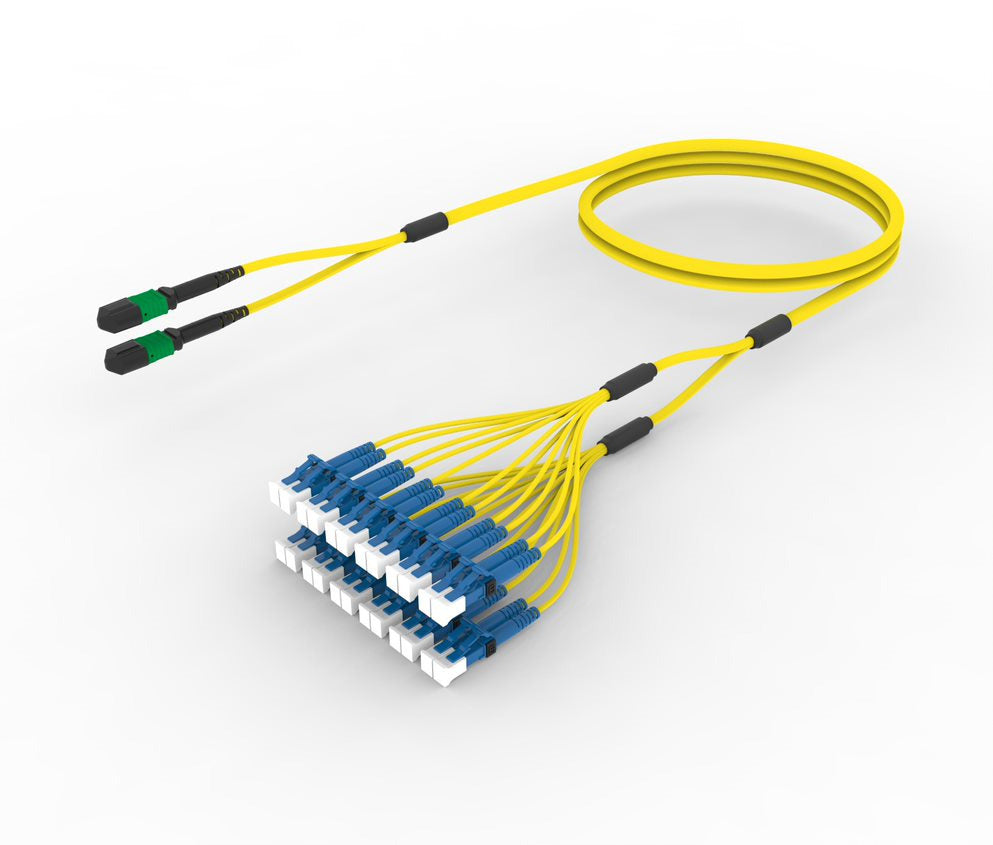

Commscope ULGMXLCAFJFF100 | Ultra Low Loss Singlemode MPO12 Male to LC 24-Fiber InstaPATCH 360 Ruggedized Fanout Cable, Plenum | 24 inch breakout (end A/end B), with gland, no pulling grip | Jacket Color - Yellow, Cord Length - 100 Ft
Specifications
Specifications
Ordering Tree
| Click on image to enlarge. |
|---|
Product Classification
| Regional Availability | Asia / Australia/New Zealand / Europe / Latin America / Middle East/Africa / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Ruggedized fanout |
| Product Brand | SYSTIMAX InstaPATCH 360 / SYSTIMAX ULL |
| Ordering Note | For lengths greater than 999 ft (304 m), orders must be in meters / Minimum length may vary based on cable configuration / Not available in the United States or Canada |
General Specifications
| Color, boot A | Black |
|---|---|
| Color, boot B | Blue |
| Color, connector A | Green |
| Color, connector B | Blue |
| Construction Type | Stranded |
| Fibers per Subunit, quantity | 12 |
| Furcation Color | Yellow |
| Interface, Connector A | MPO-12/APC |
| Interface, Connector B | LC/UPC |
| Jacket Color | Yellow |
| Polarity | Method B Enhanced |
| Total Fibers, quantity | 24 |
Dimensions
| Cable Assembly Length Range (m) | 3 – 305 |
|---|---|
| Cable Assembly Length Range (ft) | 10 – 999 |
Mechanical Specifications
| Cable Retention Strength, maximum | 11.24 lb @ 0 ° / 4.40 lb @ 90 ° |
|---|
Optical Specifications
| Fiber Mode | Singlemode |
|---|---|
| Fiber Type | G.652.D / G.657.A2, TeraSPEED |
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
|---|---|
| Environmental Space | Plenum |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
