Brand: CommScope | SKU: CMP-00423CS44SD6A-06

CommScope UN874047904/10 | CS44PSD ETL verified Category 6A U/UTP Cable, plenum, blue jacket, 4 pair count, 1000 ft (305 m) length, reel

$2.76

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

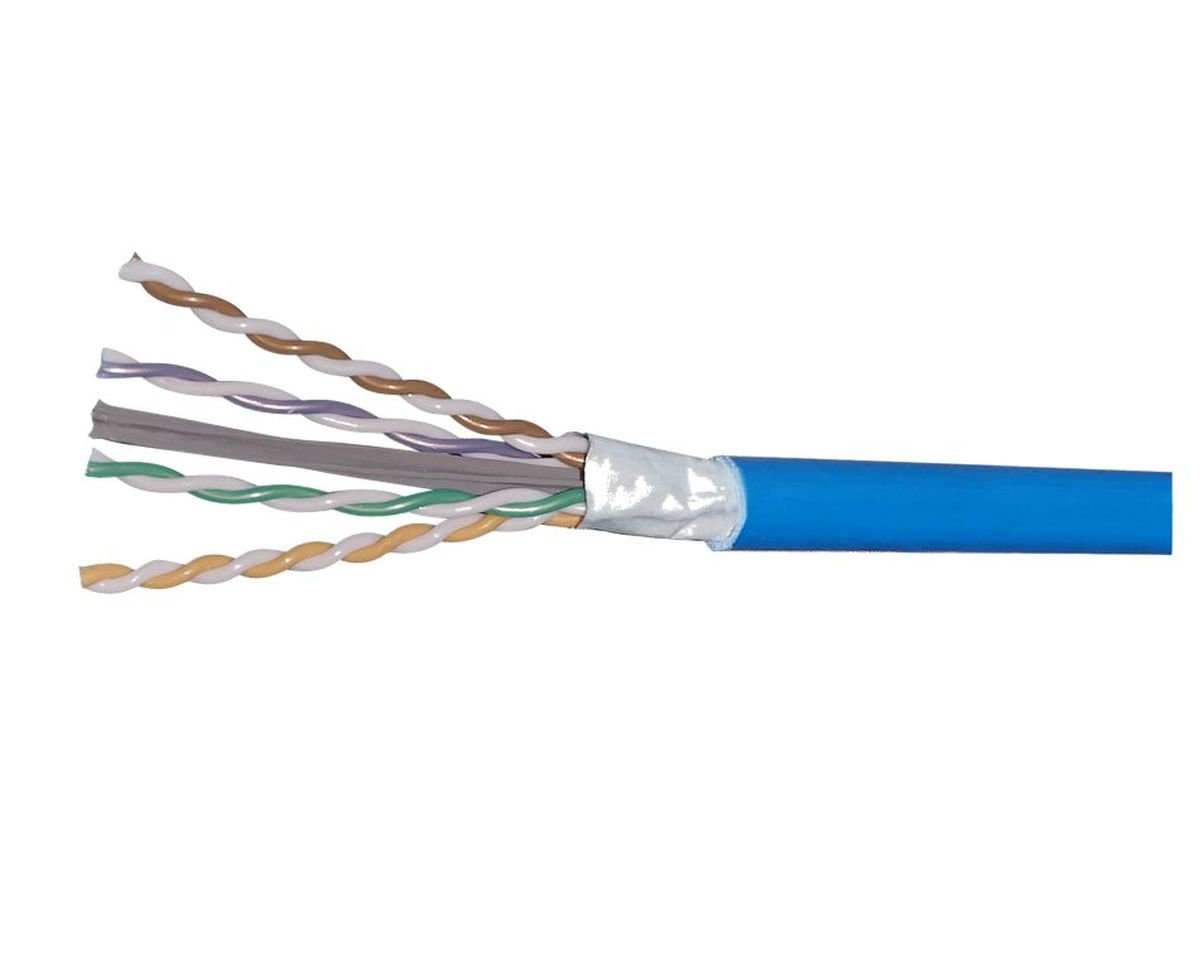

CommScope UN874047904/10 | CS44PSD ETL verified Category 6A U/UTP Cable, plenum, blue jacket, 4 pair count, 1000 ft (305 m) length, reel

Specifications

CommScope - UN874047904/10 - Product Categories

Cables
Twisted Pair Cables
Category 6A Cables

CommScope - UN874047904/10 - Product Classification

Regional Availability	North America
Portfolio	Uniprise
Product Type	Twisted pair cable

CommScope - UN874047904/10 - General Specifications

Brand Name	CommScope
Item Description	CS44PSD ETL verified Category 6A U/UTP Cable, plenum, blue jacket, 4 pair count, 1000 ft (305 m) length, reel
Model Number	UN874047904/10 \| CS44PSD BLU C6A 4/23 U/UTP RL 1KFT
Product Number	CS44PSD
ANSI/TIA Category	6A
Cable Component Type	Horizontal
Cable Type	U/UTP (unshielded)
Conductor Type, singles	Solid
Conductors, quantity	8
Jacket Color	Blue
Note	Consult ANSI/TIA-568-C.2 Annex G for length de-rating guidance for cable installation in higher temperature environments
Pairs, quantity	4
Separator Type	Isolator
Transmission Standards	ANSI/TIA-568.2-D

CommScope - UN874047904/10 - Additional Information

Dimensions	-
Cable Length	304.8 m \| 1000 ft
Diameter Over Insulated Conductor	1.115 mm \| 0.0439 in
Diameter Over Jacket, nominal	6.325 mm \| 0.249 in
Jacket Thickness	0.406 mm \| 0.016 in
Conductor Gauge, singles	23 AWG
Electrical Specifications	-
dc Resistance Unbalance, maximum	0.04
dc Resistance, maximum	8 ohms/100 m \| 2.438 ohms/100 ft
Dielectric Strength, minimum	1500 Vac \| 2500 Vdc
LP (Limited Power) Rating	0.7 A
Mutual Capacitance at Frequency	5.6 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP)	0.7
Operating Frequency, maximum	500 MHz
Operating Voltage, maximum	80 V
Remote Powering	Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A

Documents and Downloads

CommScope UN874047904/10 Product Specification
