Brand: CommScope | SKU: 969653

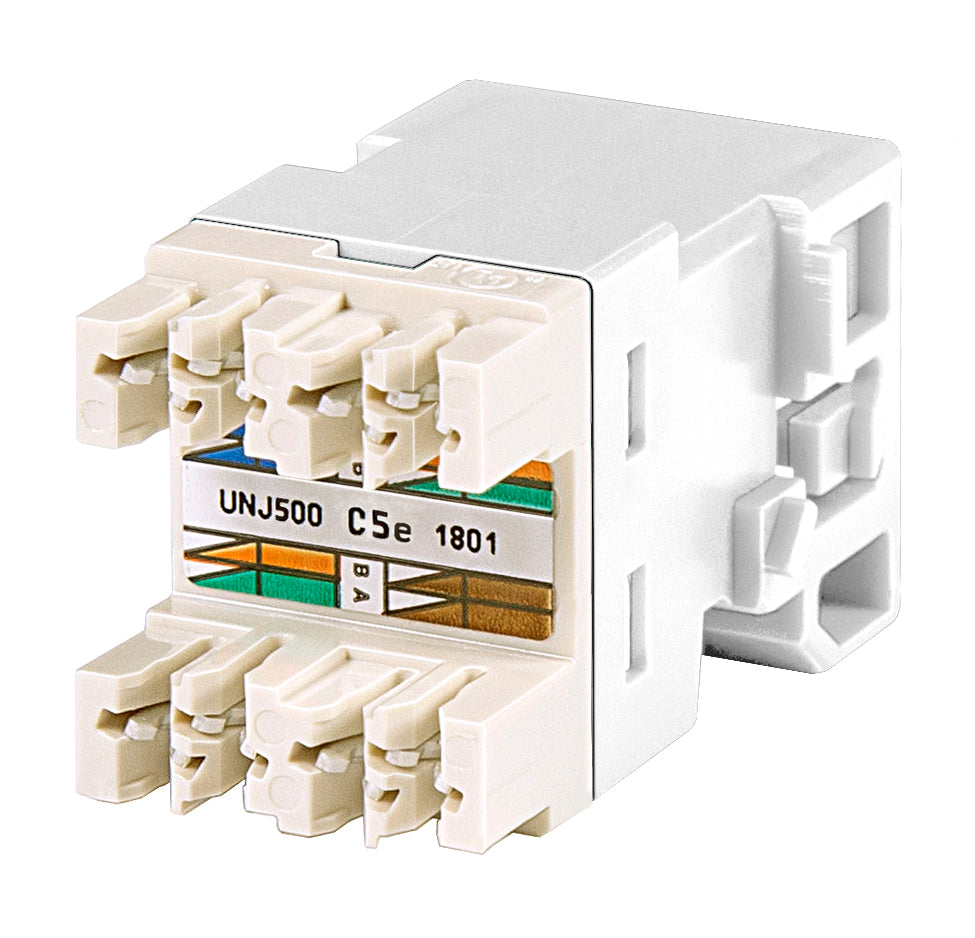

Commscope UNJ500-266 | Modular jack, RJ45, Category 5e, unshielded, without dust cover, Pro white

$10.70

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description
Commscope UNJ500-266 | Modular jack, RJ45, Category 5e, unshielded, without dust cover, Pro white

Specifications

Product Classification

Regional AvailabilityNorth America
PortfolioCommScope
Product TypeModular jack
Product SeriesUNJ Series

General Specifications

ANSI/TIA Category5e
Cable TypeUnshielded
ColorPro white
Conductor TypeSolid / Stranded
Integrated Dust Cover TypeNone
MountingM Series faceplates and panels
Mounting NoteColor matches with M-series Pro white Faceplates
Outlet FeatureInverted jack face
Outlet TypeStandard
Termination ToolSL Termination tool
Termination TypeIDC
Transmission StandardsANSI/TIA-568-C.2 / ISO/IEC 11801 Class D
WiringT568A / T568B

Dimensions

Panel Thickness, recommended1.6 mm / 0.063 in
Compatible Insulated Conductor Diameter, maximum1.45 mm / 0.057 in
Contact Plating Thickness1.27 µm
Compatible Conductor Gauge, solid24–22 AWG
Compatible Conductor Gauge, stranded26–24 AWG

Electrical Specifications

Remote PoweringFully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002

Material Specifications

Contact Base MaterialBeryllium copper
Contact Plating MaterialGold

Environmental Specifications

Flammability RatingUL 94 V-0

Packaging and Weights

Packaging quantity1
Packaging TypeBag

Regulatory Compliance/Certifications

ROHSCompliant
CHINA-ROHSBelow maximum concentration value
REACH-SVHCCompliant as per SVHC revision on www.commscope.com/ProductCompliance

Documents and Downloads
