Brand: CommScope
|
SKU:
969629

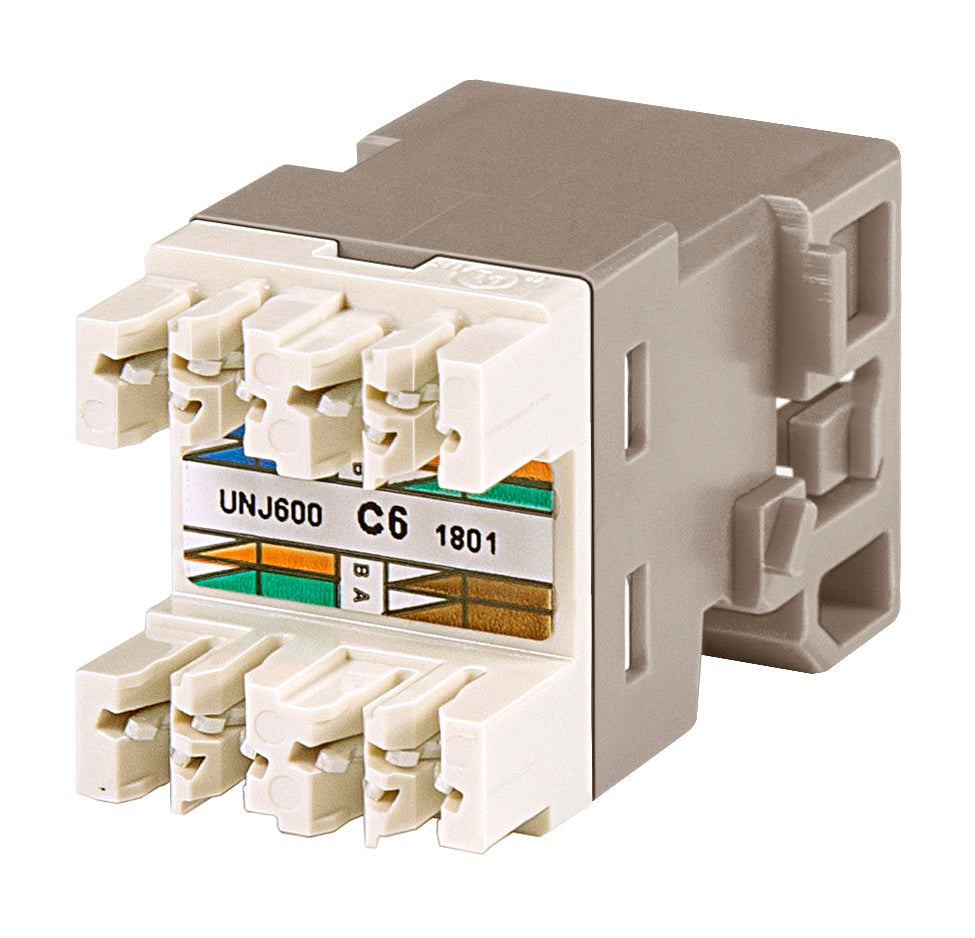

Commscope UNJ600-IV | Uniprise Modular Jack, RJ45, category 6, T568A/T568B, unshielded, without dust cover, ivory
Regular price
$14.08
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope UNJ600-IV | Uniprise Modular Jack, RJ45, category 6, T568...
Regular price
$14.08
Unit price
Description
Description
Commscope UNJ600-IV | Uniprise Modular Jack, RJ45, category 6, T568A/T568B, unshielded, without dust cover, ivory
Specifications
Specifications
Product Classification
| Regional Availability | North America |
|---|---|
| Portfolio | Uniprise |
| Product Type | Modular jack |
| Product Series | UNJ Series |
General Specifications
| ANSI/TIA Category | 6 |
|---|---|
| Cable Type | Unshielded |
| Color | Ivory |
| Conductor Type | Solid / Stranded |
| Integrated Dust Cover Type | None |
| Mounting | M Series faceplates and panels |
| Outlet Feature | Inverted jack face |
| Outlet Type | Standard |
| Termination Tool | SL Termination tool |
| Termination Type | IDC |
| Transmission Standards | ANSI/TIA-568-C.2 / ISO/IEC 11801 Class E |
| Wiring | T568A / T568B |
Dimensions
| Panel Thickness, recommended | 1.6 mm / 0.063 in |
|---|---|
| Compatible Insulated Conductor Diameter, maximum | 1.45 mm / 0.057 in |
| Contact Plating Thickness | 1.27 µm |
| Compatible Conductor Gauge, solid | 24–22 AWG |
| Compatible Conductor Gauge, stranded | 26–24 AWG |
Electrical Specifications
| Remote Powering | Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002 |
|---|
Material Specifications
| Contact Base Material | Beryllium copper |
|---|---|
| Contact Plating Material | Gold |
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
|---|---|
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Flammability Rating | UL 94 V-0 |
Packaging and Weights
| Packaging quantity | 1 |
|---|---|
| Packaging Type | Bag |
Regulatory Compliance/Certifications
| ROHS | Compliant |
|---|---|
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- Revit BIM Models
- 408-8417 SL, Secure SL, E, KJ and M Series Modular Jacks
- Statement of Compliance RoHS/REACH
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- Use of Uniprise cabling for PoE applications
- Visio Stencil Resources
- CommScope Extended System Warranty
- CommScope Limited Product Warranty
