Brand: CommScope
|
SKU:
969641

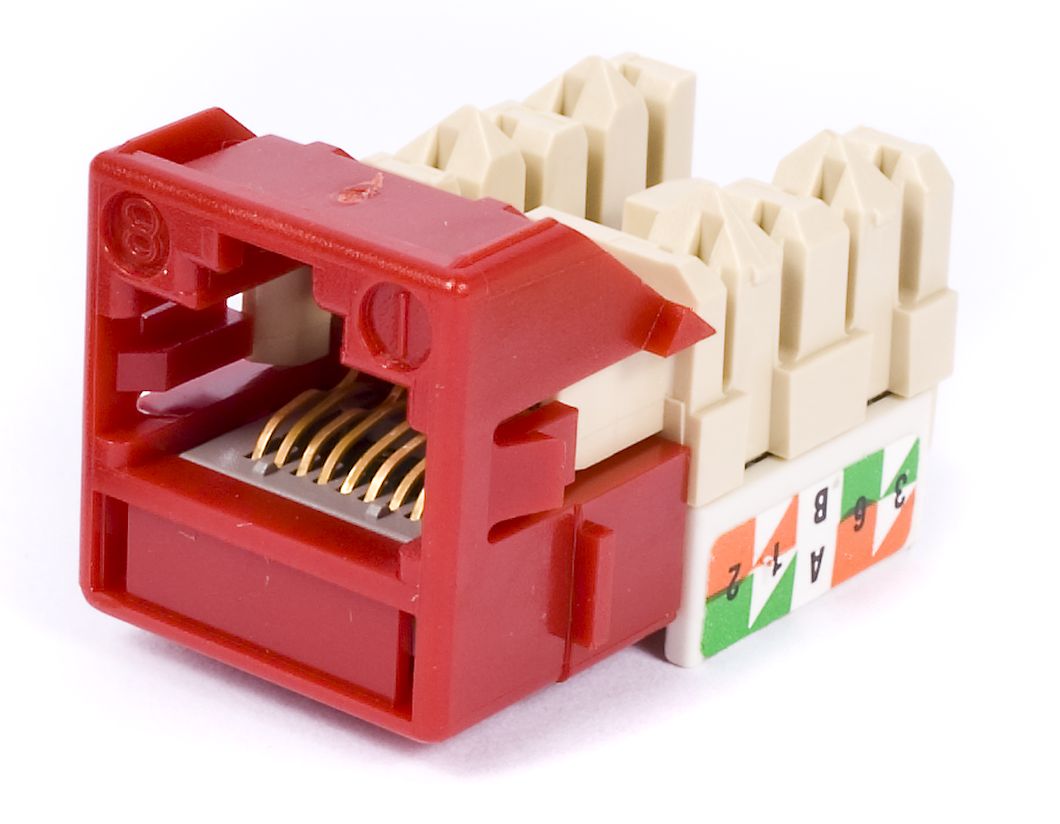

Commscope UNJ600-RD-100PK | Uniprise UNJ600 Category 6 U/UTP Information Outlet, red, 100 pack
Regular price
$1,232.13
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope UNJ600-RD-100PK | Uniprise UNJ600 Category 6 U/UTP Inform...
Regular price
$1,232.13
Unit price
Description
Description
Commscope UNJ600-RD-100PK | Uniprise UNJ600 Category 6 U/UTP Information Outlet, red, 100 pack
Specifications
Specifications
Product Classification
| Regional Availability | North America |
|---|---|
| Portfolio | Uniprise |
| Product Type | Modular jack |
| Product Series | UNJ Series |
General Specifications
| ANSI/TIA Category | 6 |
|---|---|
| Application | Universal design and label supports both T568 A and B wiring |
| Cable Type | Unshielded |
| Color | Red |
| Conductor Type | Solid / Stranded |
| Integrated Dust Cover Type | None |
| Mounting | M Series faceplates, surface mount boxes, consolidation point boxes, or CommScope modular panels |
| Mounting Note | Can be mounted either at 90° (straight) or at 45° (angled) in any CommScope faceplate |
| Termination Type | IDC |
| Wiring | T568A / T568B |
Dimensions
| Height | 20.32 mm / 0.8 in |
|---|---|
| Width | 20.32 mm / 0.8 in |
| Depth | 30.48 mm / 1.2 in |
| Compatible Conductor Gauge, solid | 22 AWG / 24 AWG |
| Compatible Conductor Gauge, stranded | 22 AWG / 23 AWG / 24 AWG |
Electrical Specifications
| Contact Resistance Variation, maximum | 20 mOhm |
|---|---|
| Contact Resistance, maximum | 100 mOhm |
| Current Rating at Temperature | 1.5 A/20 °C / 1.5 A/68 °F |
| Dielectric Withstand Voltage, RMS, conductive surface | 1,500 Vac/60 Hz |
| Dielectric Withstand Voltage, RMS, contact-to-contact | 1,000 Vac/60 Hz |
| Insulation Resistance, minimum | 500 mOhm |
Material Specifications
| Contact Plating Material | Precious metals |
|---|---|
| Material Type | Copper alloy / High-impact, flame retardant, thermoplastic |
| Termination Contact Plating | Nickel |
Mechanical Specifications
| Plug Insertion Life, minimum | 750 times |
|---|---|
| Plug Insertion Life, test plug | IEC 60603-7 compliant plug |
| Plug Retention Force, minimum | 133 N / 29.9 lbf |
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
|---|---|
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | Up to 95%, non-condensing |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | UL / cUL |
Packaging and Weights
| Packaging quantity | 100 |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
