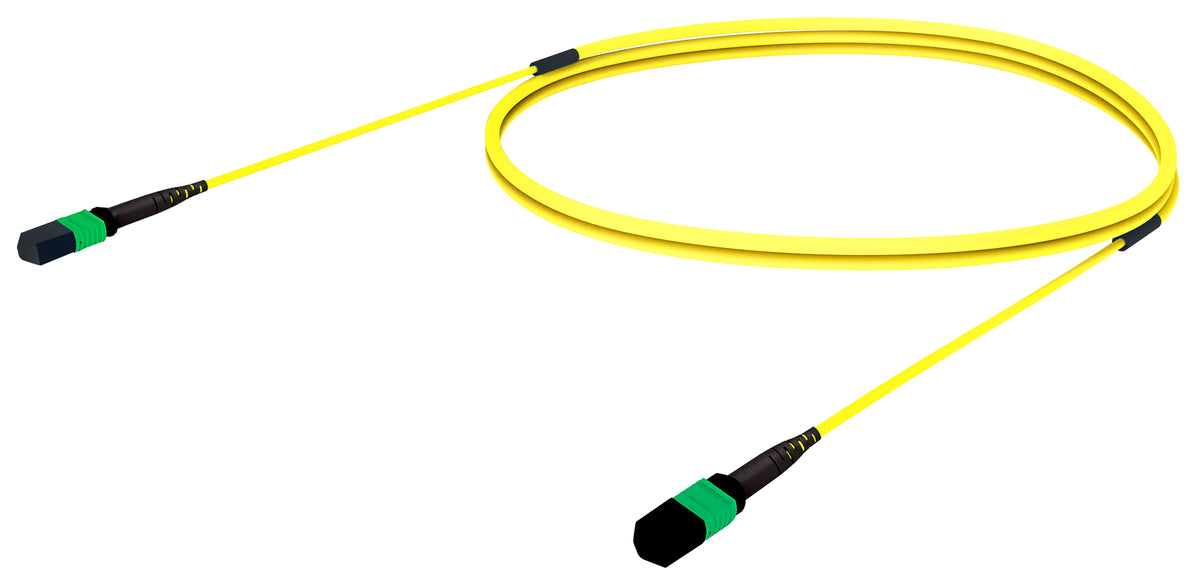

![Commscope UQGMPMPGD-JAM005 | 33 inch breakout (end A/end B), no gland, no pulling grip [standard option] | Jacket Color - Yellow, Cord Length - 5 M](http://www.alldataresource.com/cdn/shop/files/22700-a-gm-m-ad-yellow-cable-and-green-jacket-black-boot-10-11-2019-jpg_29ebdc32-60cf-4b7a-a0f6-602e8e447734.jpg?v=1786530973&width=1500)
Loading...
Brand: CommScope
|
SKU:
10083690
Commscope UQGMPMPGD-JAM005 | 33 inch breakout (end A/end B), no gland, no pulling grip [standard option] | Jacket Color - Yellow, Cord Length - 5 M
Regular price
$431.80
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope UQGMPMPGD-JAM005 | 33 inch breakout (end A/end B), no gla...
Regular price
$431.80
Unit price
Description
Description
Commscope UQGMPMPGD-JAM005 | Ultra Low Loss (ULL) Singlemode MPO12 (female) to MPO12 (female), Fiber Extension Cable Assembly, 12-Fiber, Plenum | 33 inch breakout (end A/end B), no gland, no pulling grip [standard option] | Jacket Color - Yellow, Cord Length - 5 M
Specifications
Specifications
Ordering Tree
| Click on image to enlarge. |
|---|
Product Classification
| Regional Availability | Asia / Australia/New Zealand / Europe / Latin America / Middle East/Africa / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber array cable assembly |
| Product Brand | SYSTIMAX ULL |
General Specifications
| Color, boot A | Black |
|---|---|
| Color, boot B | Black |
| Color, connector A | Green |
| Color, connector B | Green |
| Construction Type | Stranded |
| Fibers per Subunit, quantity | 12 |
| Furcation Color | Yellow |
| Interface, Connector A | MPO-12/APC |
| Interface, Connector B | MPO-12/APC |
| Jacket Color | Yellow |
| Polarity | Method B Enhanced |
| Total Fibers, quantity | 12 |
Dimensions
| Breakout Length | 33 in |
|---|---|
| Cable Assembly Length Range (m) | 1 – 61 |
| Cable Assembly Length Range (ft) | 1 – 200 |
Mechanical Specifications
| Cable Retention Strength, maximum | 11.24 lb @ 0 ° / 4.40 lb @ 90 ° |
|---|
Optical Specifications
| Fiber Mode | Singlemode |
|---|---|
| Fiber Type | G.657.A2, TeraSPEED |
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
|---|---|
| Environmental Space | Plenum |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant/Exempted |
| CHINA-ROHS | Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
