Brand: CommScope
|
SKU:
10073680
Commscope UQXQPQXHF-MHF024 | 48 inch breakout (end B), no gland, no pulling grip | Jacket Color - Aqua, Cord Length - 24 Ft
Regular price
$848.08
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope UQXQPQXHF-MHF024 | 48 inch breakout (end B), no gland, no...
Regular price
$848.08
Unit price
Description
Description

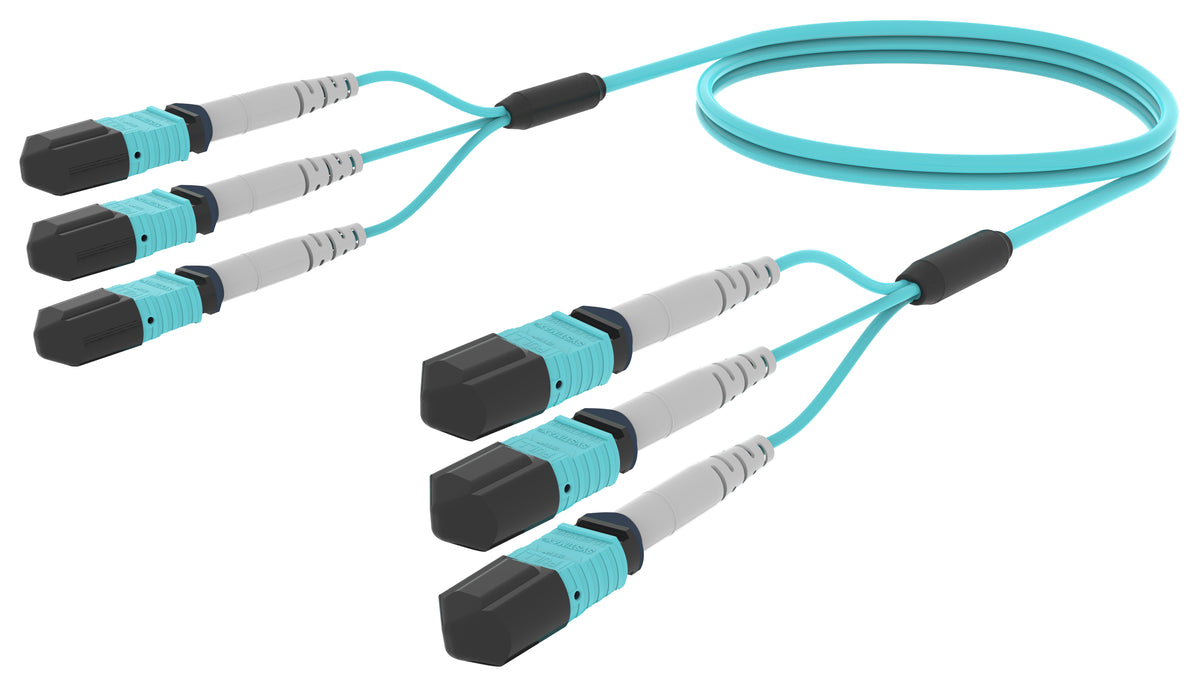

Commscope UQXQPQXHF-MHF024 | Ultra Low Loss (ULL) LazrSPEED 550 OM4, MPO/8 (Female) to MPO/8 (Male), 24-Fiber, Plenum array cord | 48 inch breakout (end B), no gland, no pulling grip | Jacket Color - Aqua, Cord Length - 24 Ft
Specifications
Specifications
Ordering Tree
| Click on image to enlarge. |
|---|
Product Classification
| Regional Availability | Asia / Australia/New Zealand / Europe / Latin America / Middle East/Africa / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber array cable assembly |
| Product Brand | SYSTIMAX ULL |
General Specifications
| Color, boot A | Gray |
|---|---|
| Color, boot B | Gray |
| Color, connector A | Aqua |
| Color, connector B | Aqua |
| Construction Type | Stranded |
| Fibers per Subunit, quantity | 8 |
| Furcation Color | Aqua |
| Interface, Connector A | MPO-08/UPC |
| Interface, Connector B | MPO-08/UPC |
| Jacket Color | Aqua |
| Polarity | Method B Enhanced |
| Total Fibers, quantity | 24 |
Dimensions
| Cable Assembly Length Range (m) | 1 – 61 |
|---|---|
| Cable Assembly Length Range (ft) | 1 – 200 |
Mechanical Specifications
| Cable Retention Strength, maximum | 11.24 lb @ 0 ° / 4.40 lb @ 90 ° |
|---|
Optical Specifications
| Fiber Type | OM4, LazrSPEED |
|---|
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
|---|---|
| Environmental Space | Plenum |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant/Exempted |
| CHINA-ROHS | Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
