Brand: CommScope | SKU: 972390-NEW

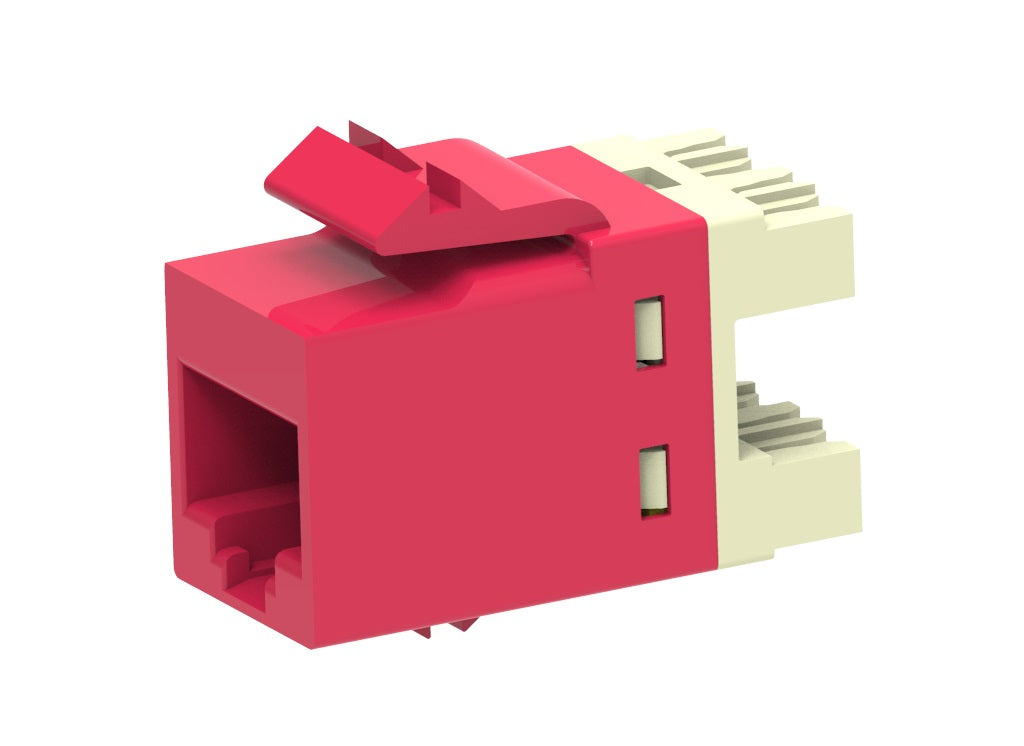

Commscope USL10G-RED | Uniprise USL Series Modular Jack, RJ45, category 6A, T568A/T568B, unshielded, without dust cover, red

$20.56

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Commscope USL10G-RED | Uniprise USL Series Modular Jack, RJ45, category 6A, T568A/T568B, unshielded, without dust cover, red

Features and Benefits

Color is more prominently visible across the body of the jack
Allows for all jack variants to be terminated with the SL termination tool
Lacing fixture of the SL termination tool is used to establish the cable termination

Specifications

Product Classification

Regional Availability	North America
Portfolio	Uniprise
Product Type	Modular jack
Product Series	USL Series

General Specifications

ANSI/TIA Category	6A
Cable Type	Unshielded
Color	Red
Conductor Type	Solid / Stranded
Integrated Dust Cover Type	None
Mounting	SL Series faceplates and panels
Outlet Type	Standard
Termination Tool	SL Termination tool
Termination Type	IDC
Transmission Standards	ANSI/TIA-568.2-D / ISO/IEC 11801 Class EA
Wiring	T568A / T568B

Dimensions

Panel Cutout, recommended	14.78 x 20.07 mm (0.58 x 0.79 in)
Panel Thickness, recommended	1.6 mm / 0.063 in
Height	16.13 mm / 0.635 in
Width	14.48 mm / 0.57 in
Depth	30.48 mm / 1.2 in
Compatible Cable Diameter, maximum	7.24 mm / 0.285 in
Compatible Insulated Conductor Diameter, maximum	1.45 mm / 0.057 in
Contact Plating Thickness	1.27 µm
Compatible Conductor Gauge, solid	22 AWG / 24 AWG
Compatible Conductor Gauge, stranded	24 AWG / 26 AWG

Electrical Specifications

Remote Powering	Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002

Material Specifications

Contact Base Material	Beryllium copper
Contact Plating Material	Gold
Material Type	Copper alloy / High-impact, flame retardant, thermoplastic / Polycarbonate

Environmental Specifications

Operating Temperature	-10 °C to +60 °C (+14 °F to +140 °F)
Storage Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Flammability Rating	UL 94 V-0

Packaging and Weights

Packaging quantity	1
Packaging Type	Bag

Regulatory Compliance/Certifications

ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance

Documents and Downloads
