Brand: CommScope
|
SKU:
9861601

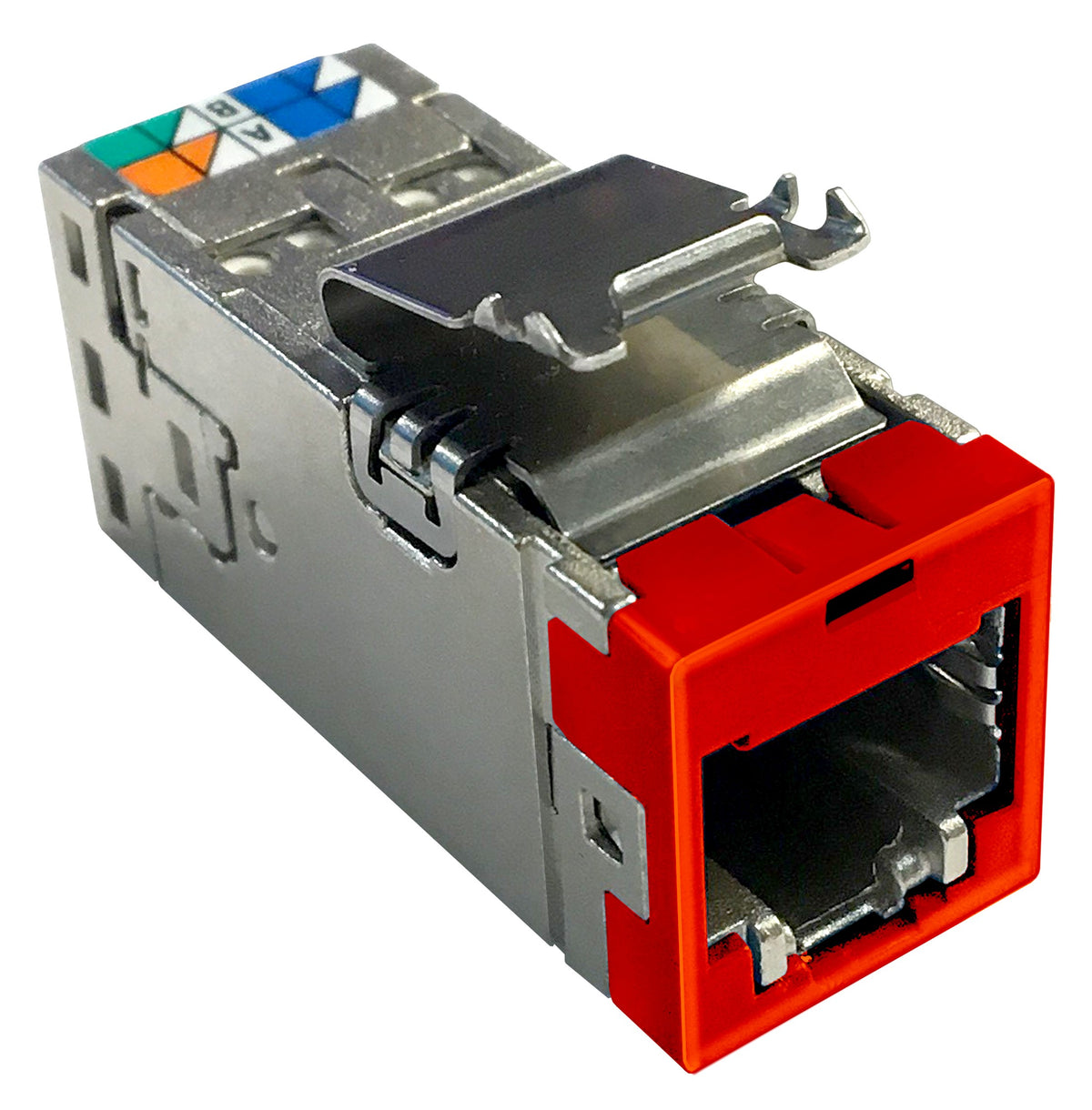

Commscope USL600-SHLD, RED | Uniprise SLX Series Modular Jack, category 6, shielded , 4 Pair, without dust cover, red
Regular price
$19.10
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope USL600-SHLD, RED | Uniprise SLX Series Modular Jack, cate...
Regular price
$19.10
Unit price
Description
Description
Commscope USL600-SHLD, RED | Uniprise SLX Series Modular Jack, category 6, shielded , 4 Pair, without dust cover, red
Features and Benefits
- Fits all existing SL panels and faceplates
- Universal latch for SL series
- 9 Different color options – Replaceable color caps
- Terminated with SL Series termination tool
- Wire holder cut off during termination
- Universal wiring label
- Easy re-termination
Specifications
Specifications
Product Classification
| Regional Availability | North America |
|---|---|
| Portfolio | Uniprise |
| Product Type | Modular jack |
| Product Series | SLX Series |
General Specifications
| ANSI/TIA Category | 6 |
|---|---|
| Cable Type | Shielded |
| Color | Red |
| Conductor Type | Solid / Stranded |
| Integrated Dust Cover Type | None |
| Mounting | SL Series faceplates and panels |
| Outlet Type | Standard |
| Termination Tool | SL Termination tool |
| Termination Type | IDC |
| Transmission Standards | ANSI/TIA-568-C.2 / ISO/IEC 11801 Class E |
| Wiring | T568A / T568B |
Dimensions
| Panel Cutout, recommended | 14.78 x 20.07 mm (0.58 x 0.79 in) |
|---|---|
| Panel Thickness, recommended | 1.6 mm / 0.063 in |
| Height | 16.13 mm / 0.635 in |
| Width | 14.48 mm / 0.57 in |
| Depth | 36.8 mm / 1.449 in |
| Compatible Cable Diameter, maximum | 8.5 mm / 0.335 in |
| Compatible Insulated Conductor Diameter, maximum | 1.6 mm / 0.063 in |
| Contact Plating Thickness | 1.27 µm |
| Compatible Conductor Gauge, solid | 26–22 AWG |
| Compatible Conductor Gauge, stranded | 26–24 AWG |
Electrical Specifications
| Remote Powering | Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002 |
|---|
Material Specifications
| Contact Base Material | Beryllium copper |
|---|---|
| Contact Plating Material | Gold |
| Material Type | Polycarbonate / Zamak |
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
|---|---|
| Flammability Rating | UL 94 V-0 |
Packaging and Weights
| Packaging quantity | 24 |
|---|---|
| Packaging Type | Bag / Box |
Regulatory Compliance/Certifications
| ROHS | Compliant |
|---|---|
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
