Brand: CommScope
|
SKU:
965224

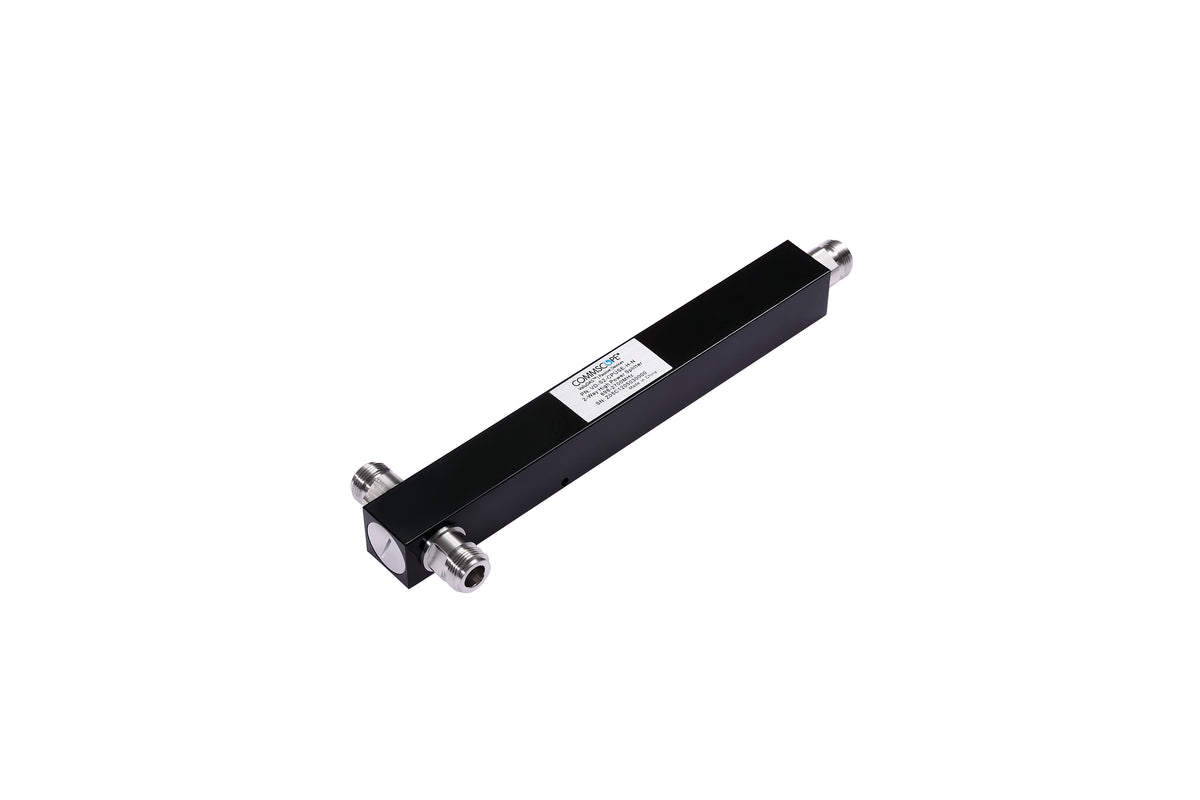

Commscope VD-S2-CPUSE-H-N | ValuDAS, Two-way Reactive Power Splitter, 698–2700 MHz, DC Pass all ports
Regular price
$64.24
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope VD-S2-CPUSE-H-N | ValuDAS, Two-way Reactive Power Splitte...
Regular price
$64.24
Unit price
Description
Description
ValuDAS, Two-way Reactive Power Splitter, 698–2700 MHz, DC Pass all ports (Additional mounting bracket PN:42396A-17 sold separately)
Specifications
Specifications
Product Classification
| Regional Availability | Asia | EMEA | Latin America |
|---|---|
| Product Type | Power splitter |
General Specifications
| Device Type | Splitter |
|---|---|
| Application | Indoor |
| Color | Black |
| Inner Contact Plating | Silver |
| Interface | N Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 23 mm | 0.906 in |
|---|---|
| Width | 59 mm | 2.323 in |
| Length | 217 mm | 8.543 in |
Electrical Specifications
| 3rd Order IMD | -155 dBc |
|---|---|
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Return Loss, minimum | 20.8 dB |
| Average Power, maximum | 300 W |
| Dissipative Loss at Frequency Band | 0.2 dB @ 698–2700 MHz |
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 2700 MHz |
| Peak Power, maximum | 3 kW |
| Power Rating, Splitting | 300 W |
| Reflected Power, maximum | 300 W |
| Split Loss | 3 dB |
| VSWR | 1.2 |
Environmental Specifications
| Operating Temperature | -35 °C to +85 °C (-31 °F to +185 °F) |
|---|---|
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
Packaging and Weights
| Height, packed | 38 mm | 1.496 in |
|---|---|
| Width, packed | 73 mm | 2.874 in |
| Length, packed | 247 mm | 9.724 in |
| Volume | 685200 mm³ | 41.814 in³ |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
