Brand: CommScope
|
SKU:
10240268

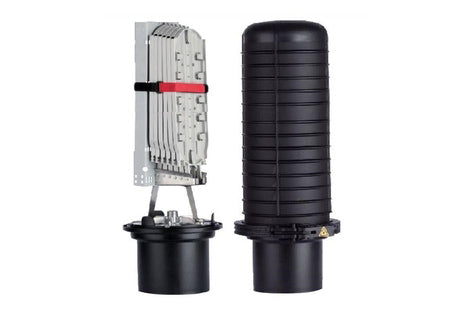

CommScope VM1063-000 | FOSC 450 B6 Fiber Optic Splice Closure, Gel Cable sealing, no pre-installed tray
Regular price
$414.50
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope VM1063-000 | FOSC 450 B6 Fiber Optic Splice Closure, Gel ...
Regular price
$414.50
Unit price
Description
Description
CommScope VM1063-000 | FOSC 450 B6 Fiber Optic Splice Closure, Gel Cable sealing, no pre-installed tray
Specifications
Specifications
CommScope - VM1063-000 - Product Categories
- Cabinets, Panels, Enclosures & Power
- Closures & Terminals
- Fiber Splice Closures
CommScope - VM1063-000 - Product Classification
| Regional Availability | Latin America | North America |
|---|---|
| Product Type | Single-ended, round fiber closure |
| Product Brand | FOSC |
| Product Series | FOSC 450 |
CommScope - VM1063-000 - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | FOSC 450 B6 Fiber Optic Splice Closure, Gel Cable sealing, no pre-installed tray, 6 cable attach., three ground feedthrough lugs, with test valve |
| Model Number | VM1063-000 | FOSC450-B6-6-NT-0-T3V |
| Cable Entry Drop Port Style | Round |
| Cable Entry Main Port Style | Round |
| Cable Ports Quantity, total | 6 round ports |
| Cable Sealing Type | Compressed gel |
| Closure Sealing Type | Dome-to-base clamp with O-ring |
| Closure Style | Single-ended |
| Color | Black |
| Fiber Storage Basket Type | Tall size |
| Flash Test Valve | Pre-installed |
| Ground Feed-through | Included |
| Mounting | Pole | Strand | Wall |
| Network Area Type | Feeder |
| Splice Tray Included, quantity | 0 |
| Splice Tray Type Included | No trays |
| Splicing Capacity, Mass Fusion, maximum | 288 |
| Splicing Capacity, Single Fusion, maximum | 144 |
| Splicing Capacity, Single Splice, 12 fibers, maximum | 144 |
| Splicing Capacity, Single Splice, 6 fibers, maximum | 72 |
| Splicing Type, Supported | Mass fusion | Single fusion |
CommScope - VM1063-000 - Additional Information
| Dimensions | - |
|---|---|
| Length | 610 mm | 24.016 in |
| Diameter | 254 mm | 10 in |
| Diameter, with clamp | 291 mm | 11.457 in |
| Main Cable Diameter, maximum | 25 mm | 0.984 in |
| Material Specifications | - |
| Material Type | Impact-resistant polymer |
| Environmental Specifications | - |
| Environmental Space | Below ground | Buried |
| Qualification Standards | IEC 61300, 5 m waterhead |
| Water Resistance | Flash test valve at 5 psi (40 kPa) |
