Brand: CommScope
|
SKU:
471569
Commscope WT-SMA12-3-96 | Water Tower Rooftop Sector Frame, 12 ft face, three 2-3/8 in OD x 96 in plain end pipes included
Regular price
$4,703.47
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope WT-SMA12-3-96 | Water Tower Rooftop Sector Frame, 12 ft f...
Regular price
$4,703.47
Unit price
Description
Description
Commscope WT-SMA12-3-96 | Water Tower Rooftop Sector Frame, 12 ft face, three 2-3/8 in OD x 96 in plain end pipes included
Specifications
Specifications

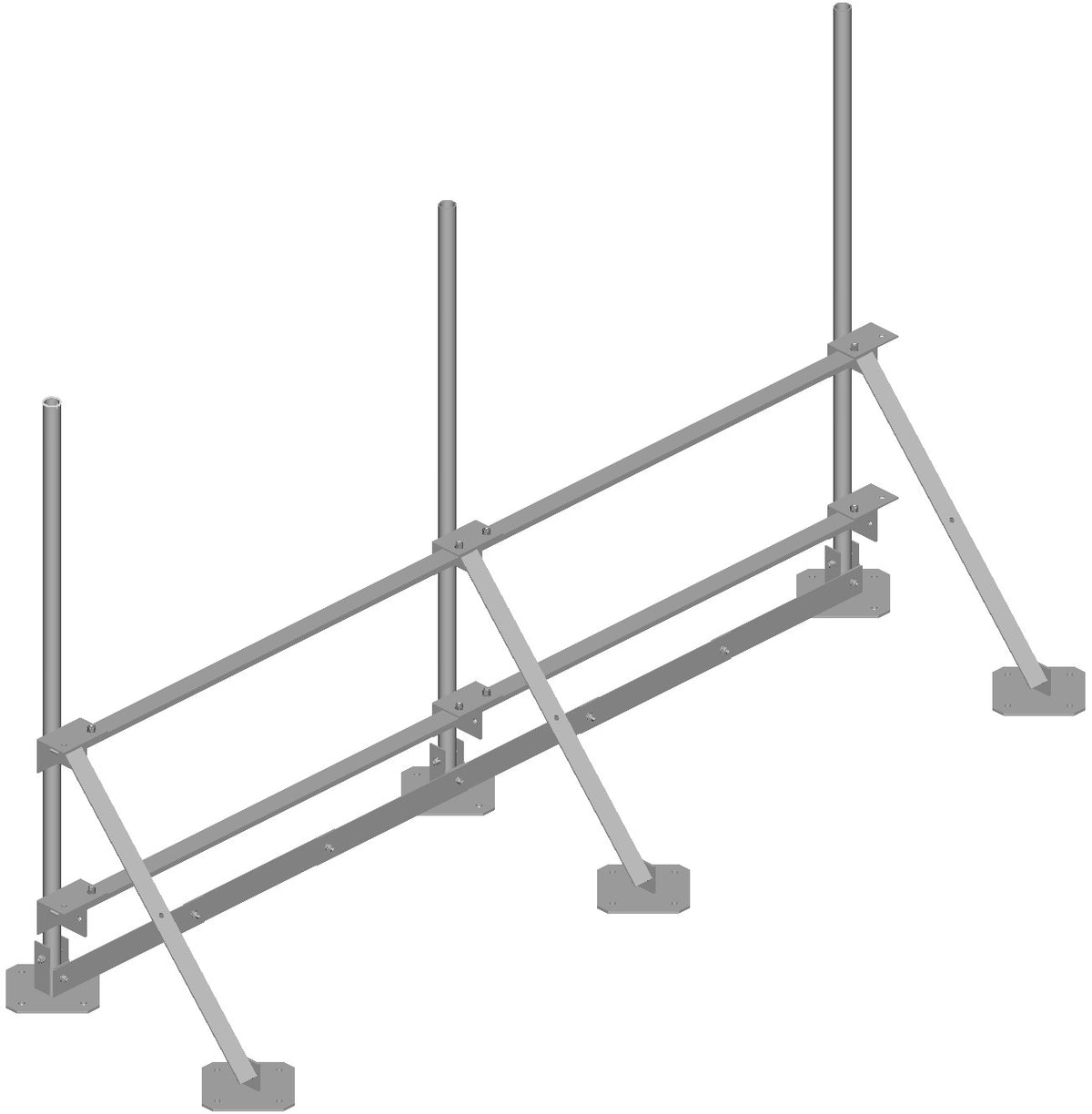

Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Water tower mount |
|---|
General Specifications
| Mounting | Weld-on feet |
|---|---|
| Pipe, quantity | 3 |
| Sectors, quantity | 1 |
Dimensions
| Height | 2438.4 mm / 96 in |
|---|---|
| Face Width | 3.81 m / 12.5 ft |
| Width | 3810 mm / 150 in |
| Length | 1219.2 mm / 48 in |
| Pipe Length | 2438.4 mm / 96 in |
| Pipe Outer Diameter | 60.96 mm / 2.4 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
|---|
Packaging and Weights
| Included | Mount / Plain end pipes (3) |
|---|---|
| Packaging quantity | 1 |
| Weight, net | 212.1 kg / 467.6 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant/Exempted |
| CHINA-ROHS | Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
