Brand: CommScope
|
SKU:
373COMOM4LTDRLSZH04H

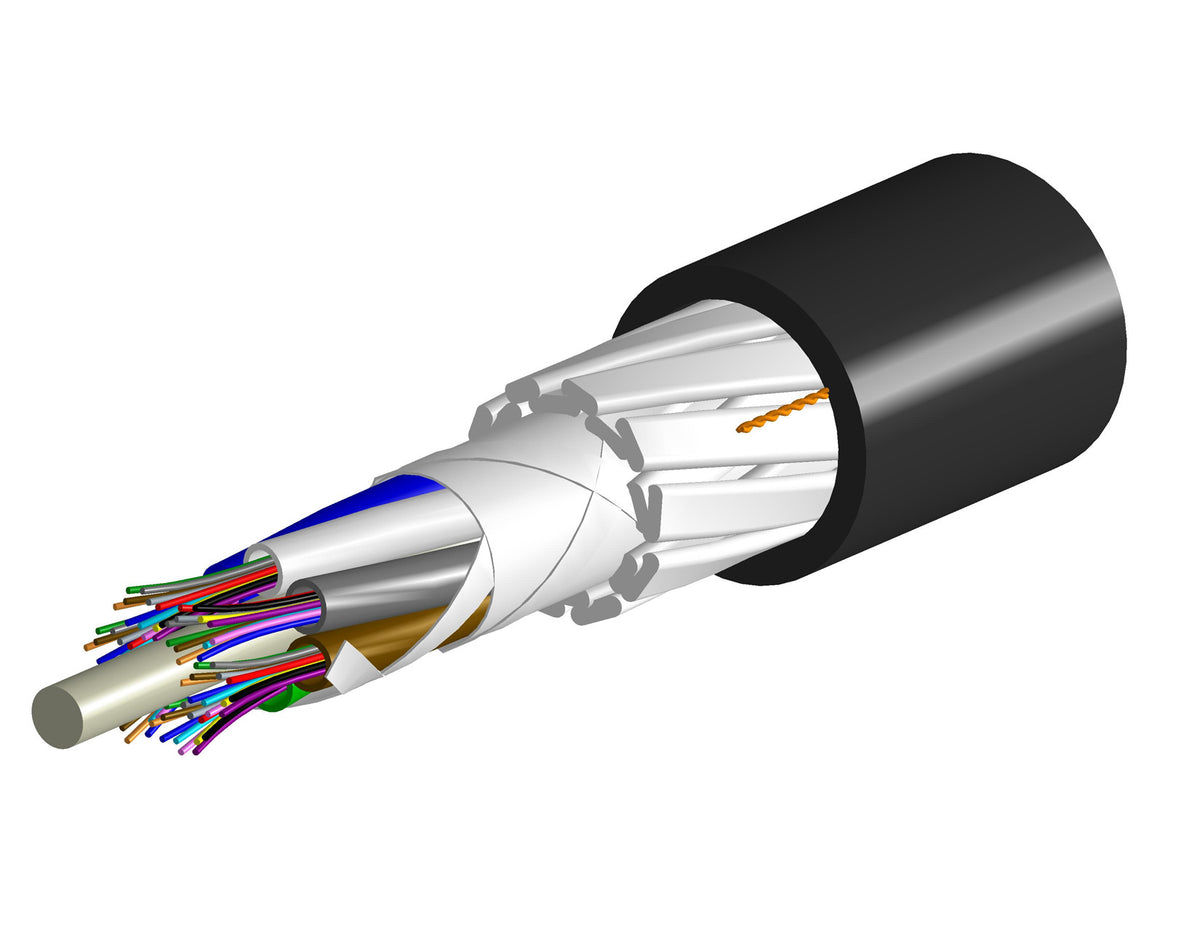

Commscope Z-004-LN-5K-F04BK/20G/HTS/D | LazrSPEED Indoor/Outdoor High Tensile Strength Riser Rated Low Smoke Zero Halogen (LSZH) Mini All-Dielectric Single Jacket, Gel-Filled, Provides Rodent Resistance, Stranded Loose Tube, Arid Core Cable
Regular price
$3.37
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope Z-004-LN-5K-F04BK/20G/HTS/D | LazrSPEED Indoor/Outdoor Hi...
Regular price
$3.37
Unit price
Brand: CommScope
|
SKU:
373COMOM4LTDRLSZH04H
Regular price
$3.37
Unit price
Shipping calculated at checkout.
Description
Description
Commscope Z-004-LN-5K-F04BK/20G/HTS/D | LazrSPEED Indoor/Outdoor High Tensile Strength Riser Rated Low Smoke Zero Halogen (LSZH) Mini All-Dielectric Single Jacket, Gel-Filled, Provides Rodent Resistance, Stranded Loose Tube, Arid Core Cable
Features and Benefits
- Additional layer of e-glass for enhanced rodent resistance
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber indoor/outdoor cable |
General Specifications
| Cable Type | Stranded loose tube |
|---|---|
| Construction Type | Non-armored |
| Fiber Type, quantity | 4 |
| Fibers per Subunit, quantity | 4 |
| Filler, quantity | 5 |
| Jacket Color | Black |
| Subunit Type | Gel-filled |
| Subunit, quantity | 1 |
| Total Fiber Count | 4 |
Dimensions
| Buffer Tube/Subunit Diameter | 2 mm / 0.079 in |
|---|---|
| Diameter Over Jacket | 12.8 mm / 0.504 in |
Mechanical Specifications
| Minimum Bend Radius, loaded | 196 mm / 7.717 in |
|---|---|
| Minimum Bend Radius, unloaded | 131 mm / 5.157 in |
| Tensile Load, long term, maximum | 1334 N / 299.895 lbf |
| Tensile Load, short term, maximum | 4448 N / 999.95 lbf |
| Compression | 22 N/mm / 125.623 lb/in |
| Compression Test Method | FOTP-41 / IEC 60794-1 E3 |
| Flex | 35 cycles |
| Flex Test Method | FOTP-104 / IEC 60794-1 E6 |
| Impact | 2.94 N-m / 26.021 in lb |
| Impact Test Method | FOTP-25 / IEC 60794-1 E4 |
| Strain | See long and short term tensile loads |
| Strain Test Method | FOTP-33 / IEC 60794-1 E1 |
| Twist | 10 cycles |
| Twist Test Method | FOTP-85 / IEC 60794-1 E7 |
| Vertical Rise, maximum | 807 m / 2647.638 ft |
Optical Specifications
| Fiber Type | OM4, LazrSPEED 550 / OM4, LazrSPEED 550 |
|---|
Environmental Specifications
| Installation temperature | -30 °C to +60 °C (-22 °F to +140 °F) |
|---|---|
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Cable Qualification Standards | ANSI/ICEA S-104-696 / EN 187105 / Telcordia GR-20 |
| EN50575 CPR Cable EuroClass Fire Performance | Dca |
| EN50575 CPR Cable EuroClass Smoke Rating | s2 |
| EN50575 CPR Cable EuroClass Droplets Rating | d1 |
| EN50575 CPR Cable EuroClass Acidity Rating | a1 |
| Environmental Space | Aerial, lashed / Buried / Low Smoke Zero Halogen (LSZH) / Riser |
| Flame Test Listing | NEC OFNR-LS (ETL) and c(ETL) |
| Flame Test Method | IEC 60332-3 / IEC 60754-2 / IEC 61034-2 / IEEE 383 / UL 1666 / UL 1685 |
| Jacket UV Resistance | UV stabilized |
| Water Penentration | 24 h |
| Water Penentration Test Method | FOTP-82 / IEC 60794-1 F5 |
Environmental Test Specifications
| Cable Freeze | -2 °C / 28.4 °F |
|---|---|
| Cable Freeze Test Method | FOTP-98 / IEC 60794-1 F15 |
| Drip | 70 °C / 158 °F |
| Drip Test Method | FOTP-81 / IEC 60794-1 E14 |
| Heat Age | -40 °C to +85 °C (-40 °F to +185 °F) |
| Heat Age Test Method | IEC 60794-1 F9 |
| Low High Bend | -30 °C to +60 °C (-22 °F to +140 °F) |
| Low High Bend Test Method | FOTP-37 / IEC 60794-1 E11 |
| Temperature Cycle | -40 °C to +70 °C (-40 °F to +158 °F) |
| Temperature Cycle Test Method | FOTP-3 / IEC 60794-1 F1 |
Packaging and Weights
| Cable weight | 166 kg/km / 111.547 lb/kft |
|---|
Regulatory Compliance/Certifications
| CENELEC | EN 50575 compliant, Declaration of Performance (DoP) available |
|---|---|
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Documents and Downloads
Documents and Downloads
- Revit BIM Models
- EN50575 DoP EuroClass Dca s2 d1 a1 (Danish)
- EN50575 DoP EuroClass Dca s2 d1 a1 (Dutch)
- EN50575 DoP EuroClass Dca s2 d1 a1 (French)
- EN50575 DoP EuroClass Dca s2 d1 a1 (German)
- EN50575 DoP EuroClass Dca s2 d1 a1 (Italian)
- EN50575 DoP EuroClass Dca s2 d1 a1 (Spanish)
- Statement of Compliance RoHS/REACH
