Brand: CommScope | SKU: 373COMOS2TBDLSZH02

Commscope Z002DN8WF02BK/D | TeraSPEED Indoor/Outdoor Low Smoke Zero Halogen Single Jacket All-Dielectric Arid-Core Drop Cable

$1.45

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Commscope Z002DN8WF02BK/D | TeraSPEED Indoor/Outdoor Low Smoke Zero Halogen Single Jacket All-Dielectric Arid-Core Drop Cable

Specifications

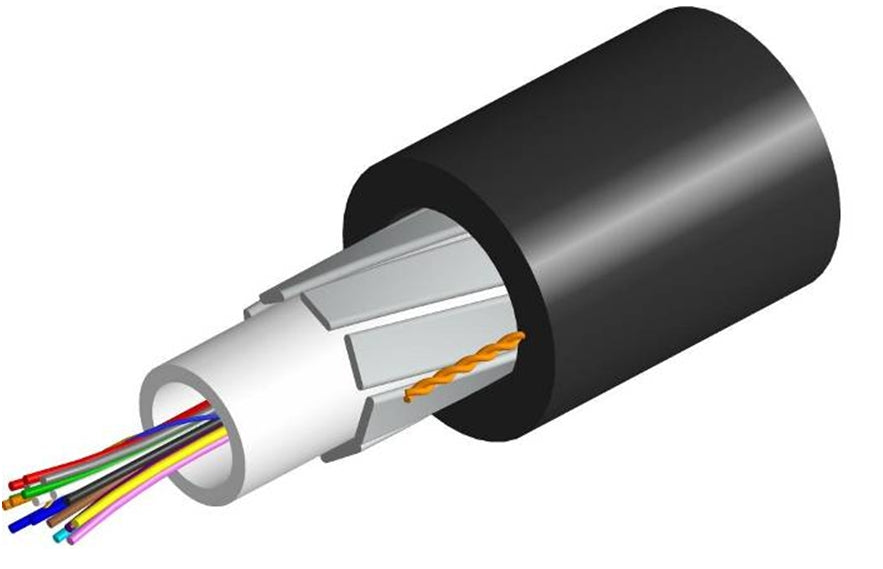

Representative Image

Click on image to enlarge.

Product Classification

Regional Availability	Asia / Australia/New Zealand / EMEA / Latin America / North America
Portfolio	CommScope
Product Type	Fiber drop cable

General Specifications

Cable Type	Riser rated low smoke
Construction Type	Non-armored
Fiber Type, quantity	2
Fibers per Subunit, quantity	2
Jacket Color	Black
Subunit Type	Gel-filled
Subunit, quantity	1
Total Fiber Count	2

Dimensions

Buffer Tube/Subunit Diameter	4 mm / 0.157 in
Diameter Over Jacket	8.3 mm / 0.327 in

Material Specifications

Jacket Material	Low Smoke Zero Halogen (LSZH)

Mechanical Specifications

Minimum Bend Radius, loaded	12.5 cm / 4.921 in
Minimum Bend Radius, unloaded	8.3 cm / 3.268 in
Tensile Load, long term, maximum	400 N / 89.924 lbf
Tensile Load, short term, maximum	1334 N / 299.895 lbf
Compression	10 N/mm / 57.101 lb/in
Compression Test Method	FOTP-41 / IEC 60794-1 E3
Flex	35 cycles
Flex Test Method	FOTP-104 / IEC 60794-1 E6
Impact	2.94 N-m / 26.021 in lb
Impact Test Method	FOTP-25 / IEC 60794-1 E4
Strain	See long and short term tensile loads
Strain Test Method	FOTP-33 / IEC 60794-1 E1
Twist	10 cycles
Twist Test Method	FOTP-85 / IEC 60794-1 E7
Vertical Rise, maximum	572 m / 1876.64 ft

Optical Specifications

Fiber Type	G.652.D and G.657.A1 , TeraSPEED / G.652.D and G.657.A1, TeraSPEED / OS2 / OS2

Environmental Specifications

Installation temperature	-20 °C to +60 °C (-4 °F to +140 °F)
Operating Temperature	-20 °C to +70 °C (-4 °F to +158 °F)
Storage Temperature	-40 °C to +75 °C (-40 °F to +167 °F)
Cable Qualification Standards	ANSI/ICEA S-110-717
EN50575 CPR Cable EuroClass Fire Performance	Dca
EN50575 CPR Cable EuroClass Smoke Rating	s2
EN50575 CPR Cable EuroClass Droplets Rating	d1
EN50575 CPR Cable EuroClass Acidity Rating	a1
Environmental Space	Aerial, lashed / Buried / Low Smoke Zero Halogen (LSZH) / Riser
Flame Test Listing	NEC OFNR-LS (ETL) and c(ETL)
Flame Test Method	IEC 60332-3 / IEC 60754-2 / IEC 61034-2 / IEEE 383 / UL 1666 / UL 1685
Jacket UV Resistance	UV stabilized
Water Penentration	24 h
Water Penentration Test Method	FOTP-82 / IEC 60794-1 F5

Environmental Test Specifications

Cable Freeze	-2 °C / 28.4 °F
Cable Freeze Test Method	FOTP-98 / IEC 60794-1 F15
Drip	70 °C / 158 °F
Drip Test Method	FOTP-81 / IEC 60794-1 E14
Heat Age Test Method	IEC 60794-1 F9
Low High Bend	-20 °C to +60 °C (-4 °F to +140 °F)
Low High Bend Test Method	FOTP-37 / IEC 60794-1 E11
Temperature Cycle	-20 °C to +70 °C (-4 °F to +158 °F)
Temperature Cycle Test Method	FOTP-3 / IEC 60794-1 F1

Packaging and Weights

Cable weight	72 kg/km / 48.382 lb/kft

Regulatory Compliance/Certifications

CENELEC	EN 50575 compliant, Declaration of Performance (DoP) available
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system

Documents and Downloads
