Brand: CommScope
|
SKU:
373-COMOM4-TBLS12-MT
CommScope Z012DS5KFSUBKD | Fiber Indoor/Outdoor Cable, LazrSPEED, LSZH Riser Distribution Cable, 12 Fiber Single-Unit, Gel-free, Multimode OM4, Black
Regular price
$11.92
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope Z012DS5KFSUBKD | Fiber Indoor/Outdoor Cable, LazrSPEED, L...
Regular price
$11.92
Unit price
Brand: CommScope
|
SKU:
373-COMOM4-TBLS12-MT
Regular price
$11.92
Unit price
Shipping calculated at checkout.
Description
Description
CommScope Z012DS5KFSUBKD | Fiber Indoor/Outdoor Cable, LazrSPEED, LSZH Riser Distribution Cable, 12 Fiber Single-Unit, Gel-free, Multimode OM4, Black jacket color, Dca flame rating
Specifications
Specifications

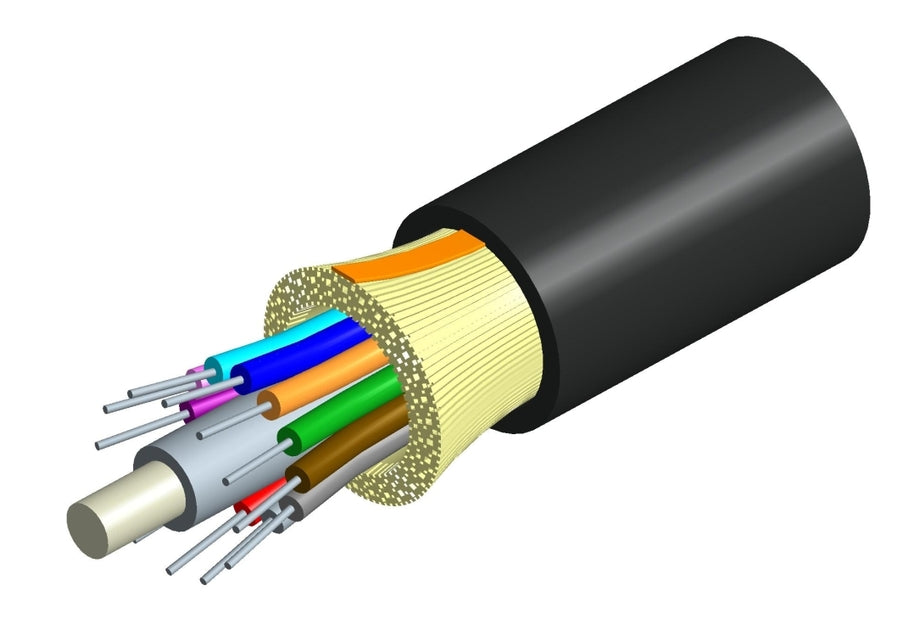

CommScope - Z012DS5KFSUBKD - Representative Image
| Click on image to enlarge. |
|---|
CommScope - Z012DS5KFSUBKD - Specifications
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | CommScope® |
| Product Type | Fiber Indoor/outdoor Cable |
| Product Series | Z-DS |
| Cable Type | Distribution |
| Construction Type | Non-armored |
| Jacket Color | Black |
| Jacket Marking | Feet |
| Total Fiber Count | 12 |
| Diameter Over Jacket | 7.2 mm | 0.283 in |
| Minimum Bend Radius, loaded | 108 mm | 4.252 in |
| Minimum Bend Radius, unloaded | 72 mm | 2.835 in |
| Installation temperature | -30 °C to +60 °C (-22 °F to +140 °F) |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Cable Freeze Test Method | IEC 60794-1 F15 |
| Heat Age | -40 °C to +85 °C (-40 °F to +185 °F) |
| Cable weight | 49 kg/km | 32.926 lb/kft |
| CENELEC, ISO 9001:2015, ROHS, CHINA-ROHS, REACH-SVHC, UK-ROHS | EN 50575 compliant, Declaration of Performance (DoP) available, Designed, manufactured and/or distributed under this quality management system, Compliant, Below maximum concentration value, Compliant as per SVHC revision on www.commscope.com/ProductCompliance, Compliant |
